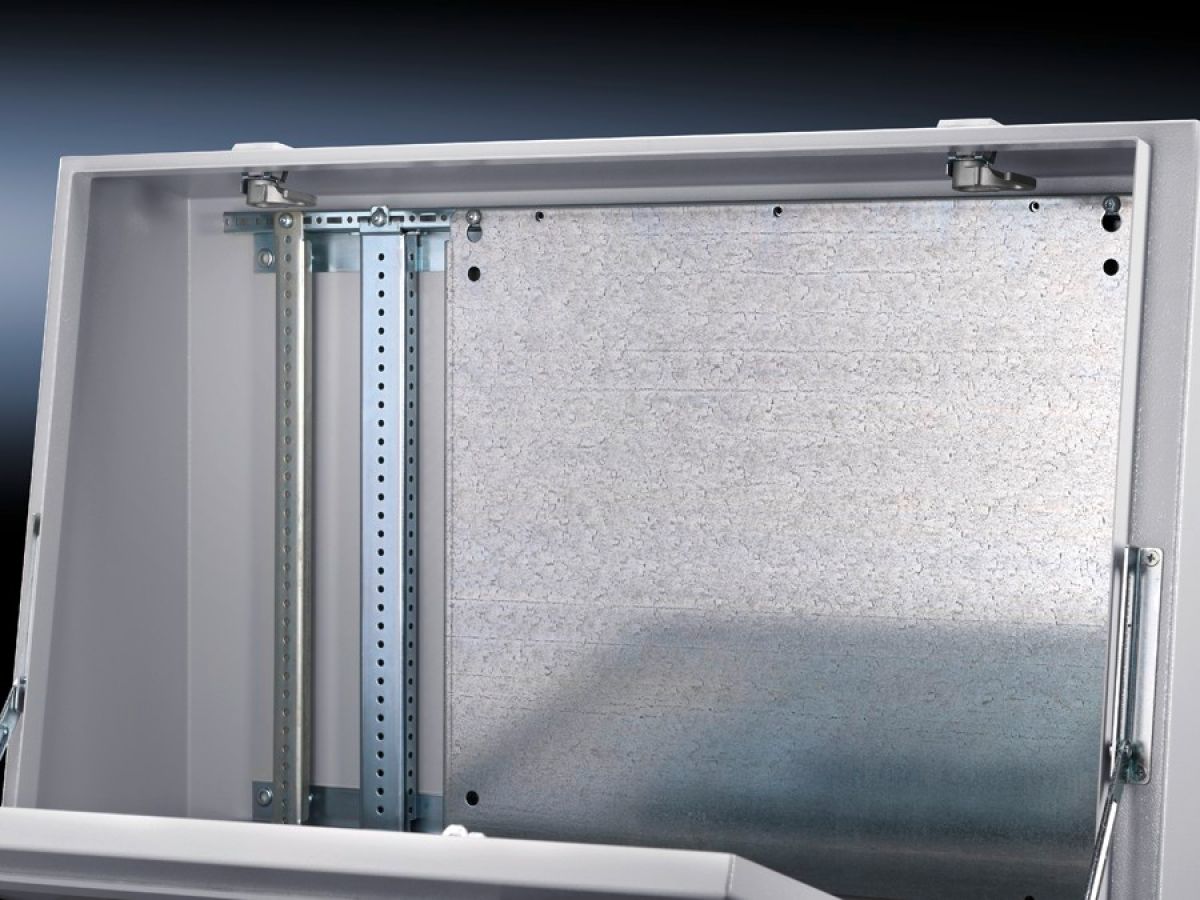

Rittal TP 6730.310, Partial mounting plates, locatable into rails for TP, TS, VX SE
Rittal TP 6730.310, Partial mounting plates, locatable into rails for TP, TS, VX SE
Regular price
€34,19
Regular price
Sale price
€34,19
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:TP 6730.310
For the installation in console and desk unit on the interior installation system rails.
| Article number: | TP 6730.310 |
| Product description | For easy mounting on pre-fitted assembly screws. |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| Installation options | Console and desk unit on the interior installation system rails |
| Note | Bayable by screw-fastening at the sides |
| Dimensions | Width: 200 mmHeight: 437 mm |
| To fit | Enclosure type: TPTSVX SE |
| Packs of | 1 pc(s). |
| Net weight | 2 kg |
| Gross weight | 2.04 kg |
| PCF per pack (cradle-to-gate) | 7.8 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177554474 |
| ETIM 9 | EC000213 |
| ECLASS 8.0 | 27180504 |
| Product description | TP Partial mounting plates, locatable, for TS, SE, TP, WD: 200x437 mm |
