Rittal
Rittal TS 4199.000, Bracket/spacer
Rittal TS 4199.000, Bracket/spacer
Regular price
€32,48
Regular price
Sale price
€32,48
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 03.12.2025
Couldn't load pickup availability
SKU: SKU:TS 4199.000
For flexible attachment of C rails, support rails or cable clamp rails (angle piece). On the sides, to accommodate square sections or tubes (Ø 20 mm). Attachment points with M8 thread.
| Article number: | TS 4199.000 |
| Product description | For flexible attachment of C rails, punched rails or cable clamp rails (angle piece). On the sides, to accommodate square sections or tubes (Ø 20 mm). Attachment points with M8 thread. |
| Material | Die-cast zinc |

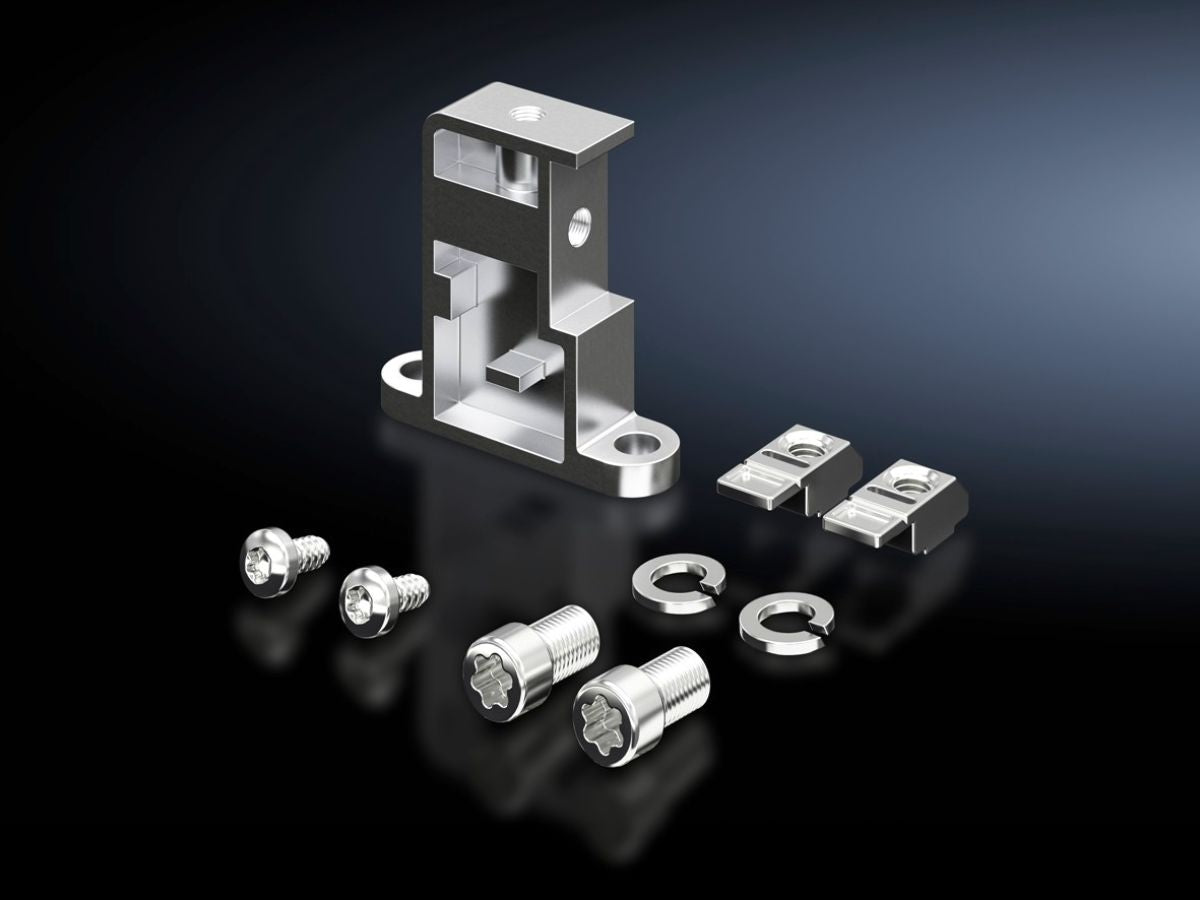

| Supply includes | 1 pc(s). = 1 bracket/spacer, 2 screws M8 x 16 mm, 2 spring lock washers, 2 cage nuts M8, 2 metal screws |
| Installation options | On the horizontal and vertical VX enclosure section |
| Note | In VX SE, on the enclosure section in conjunction with VX adaptor rail |
| To fit enclosure type | VX |
| Packs of | 6 pc(s). |
| Net weight | 1.02 kg |
| Gross weight | 1.107 kg |
| Customs tariff number | 73181900 |
| EAN | 4028177093737 |
| ETIM 9 | EC002625 |
| ETIM 8 | EC002625 |
| ECLASS 8.0 | 27189234 |
| Product description | TS Bracket/spacer |
