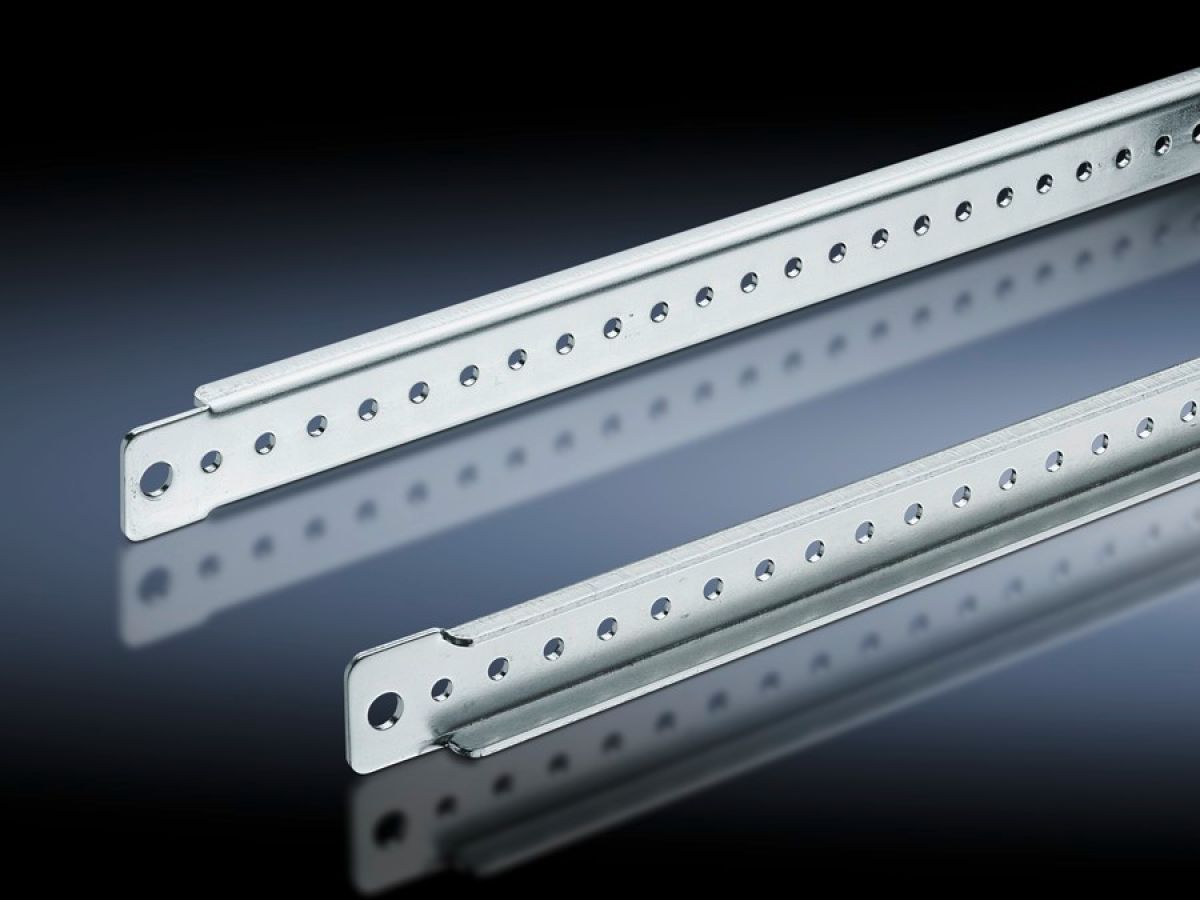

Rittal TS 4309.000, Support strip for VX, TS, VX SE, TP, AX
Rittal TS 4309.000, Support strip for VX, TS, VX SE, TP, AX
Regular price
€87,32
Regular price
Sale price
€87,32
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:TS 4309.000
For simple attachment of cable ducts, cable conduit holders, contact hazard protection cover plates, equipment installed on the door, cable clamping and attachment.
| Article number: | TS 4309.000 |
| Product description | For simple attachment of cable ducts, cable conduit holders, contact hazard protection cover plates, equipment installed on the door, cable clamping and attachment. |
| Technical specifications | 4.5 mm diameter hole on a 25 mm pitch pattern |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| Length | 390 mm |
| To fit door width | 500 mm |
| VX installation options | In door width 500 mm |
| VX SE installation options | In door width 500 mm |
| AX installation options | In door width 500 mm, with 3-point lock system, in the lockable door |
| AX stainless steel installation options | In enclosure width 400 mm |
| Installation options, AX plastic | In door width 500 mm |
| Installation options for 3-part AX | In enclosure depth 573 mm |
| TS installation options | In door width 500 mm |
| TP installation options | In consoles for 3-part assembly, at the height of the enclosure cover, in conjunction with rail for interior installation for TP, compact enclosure HD |
| Installation options for VX base/plinth, stainless steel | In base/plinth depth 500 mm, in conjunction with M6 multi-tooth screws and M6 nuts |
| To fit | Enclosure type: VXTSVX SETPAXAX plasticAX wall-mounted enclosure, 3-partTo fit width/depth: 400 mm |
| To fit | VX base/plinth system, stainless steel |
| Packs of | 20 pc(s). |
| Net weight | 3.78 kg |
| Gross weight | 4.1 kg |
| PCF per pack (cradle-to-gate) | 15.2 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177098510 |
| ETIM 9 | EC002620 |
| ETIM 8 | EC002620 |
| ECLASS 8.0 | 27189261 |
| Product description | TS Support strip, for TS, VX SE, TP, AX for inner mounting level: for W/D: 400 mm, for door width: 500 mm, L: 390 mm |
