Rittal

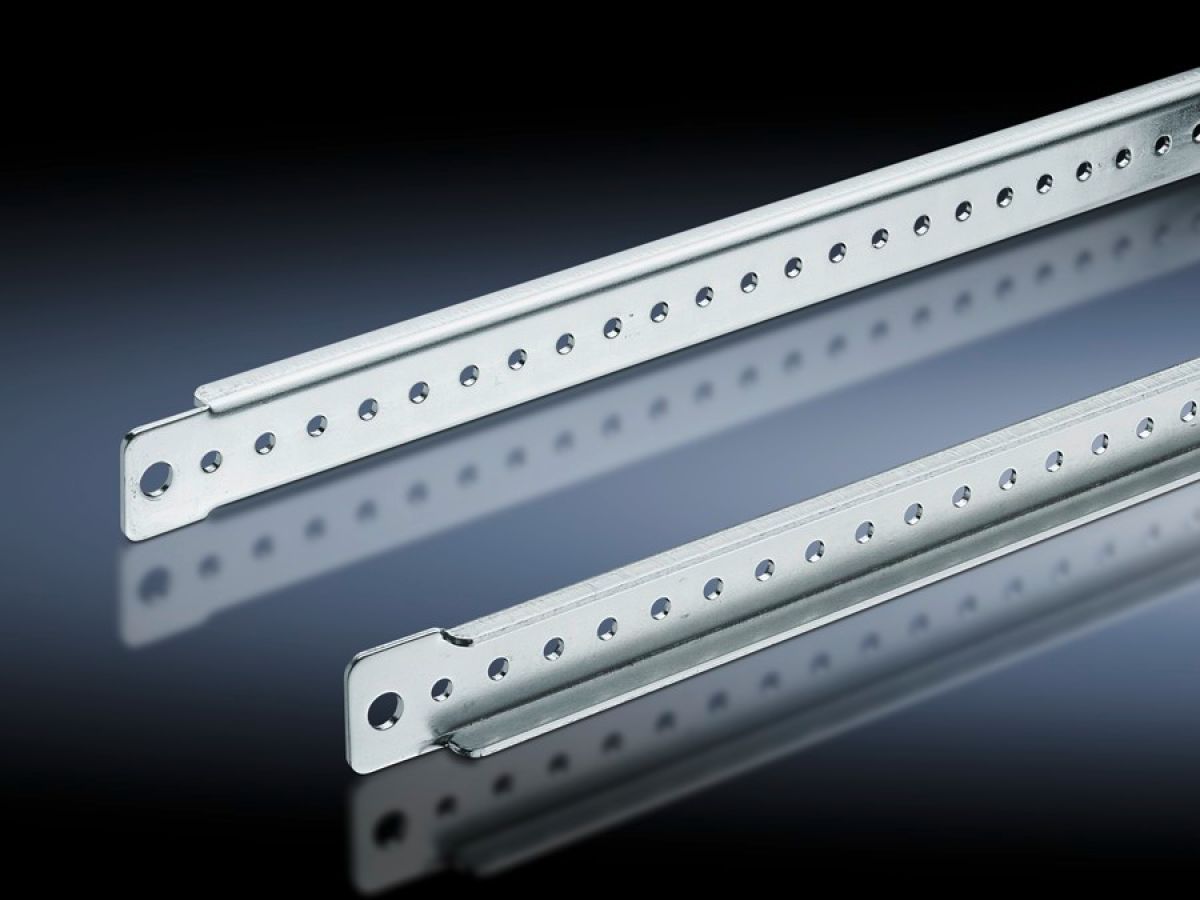

Rittal TS 4579.000, Support strip for VX, TS, VX SE, TP, AX

Rittal TS 4579.000, Support strip for VX, TS, VX SE, TP, AX

€122,02
€122,02
Sale Sold out
Taxes included.

📦 Ready for dispatch: 04.12.2025

SKU: TS 4579.000

For simple attachment of cable ducts, cable conduit holders, contact hazard protection cover plates, equipment installed on the door, cable clamping and attachment.

Article number: TS 4579.000
Product description For simple attachment of cable ducts, cable conduit holders, contact hazard protection cover plates, equipment installed on the door, cable clamping and attachment.
Technical specifications 4.5 mm diameter hole on a 25 mm pitch pattern
Material Sheet steel
Surface finish Zinc-plated
Supply includes Assembly parts
Length 790 mm
To fit door width 900 mm
VX SE installation options In door width 900 mm
AX installation options In enclosure width 800 mm, in conjunction with rail for interior installation AX and base configuration rail for AX
AX stainless steel installation options In enclosure width 800 mm
TS installation options In enclosure width/depth 800 mm, on the inner mounting level
TP installation options In TP pedestal and one-piece console pedestal width 800 mm, in conjunction with rail for interior installation for TP, compact enclosure HD
To fit Enclosure type: TSVX SETPAXTo fit width/depth: 800 mm
Packs of 20 pc(s).
Net weight 7.9 kg
Gross weight 8.292 kg
PCF per pack (cradle-to-gate) 31.3 kg CO2 eq (Cat B)
Note on PCF category Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number 73269098
EAN 4028177103351
ETIM 9 EC002620
ETIM 8 EC002620
ECLASS 8.0 27189261
Product description TS Support strip, for TS, VX SE, TP, for inner mounting level: for W/D: 800 mm, for door width: 900 mm, L: 790 mm
