Rittal

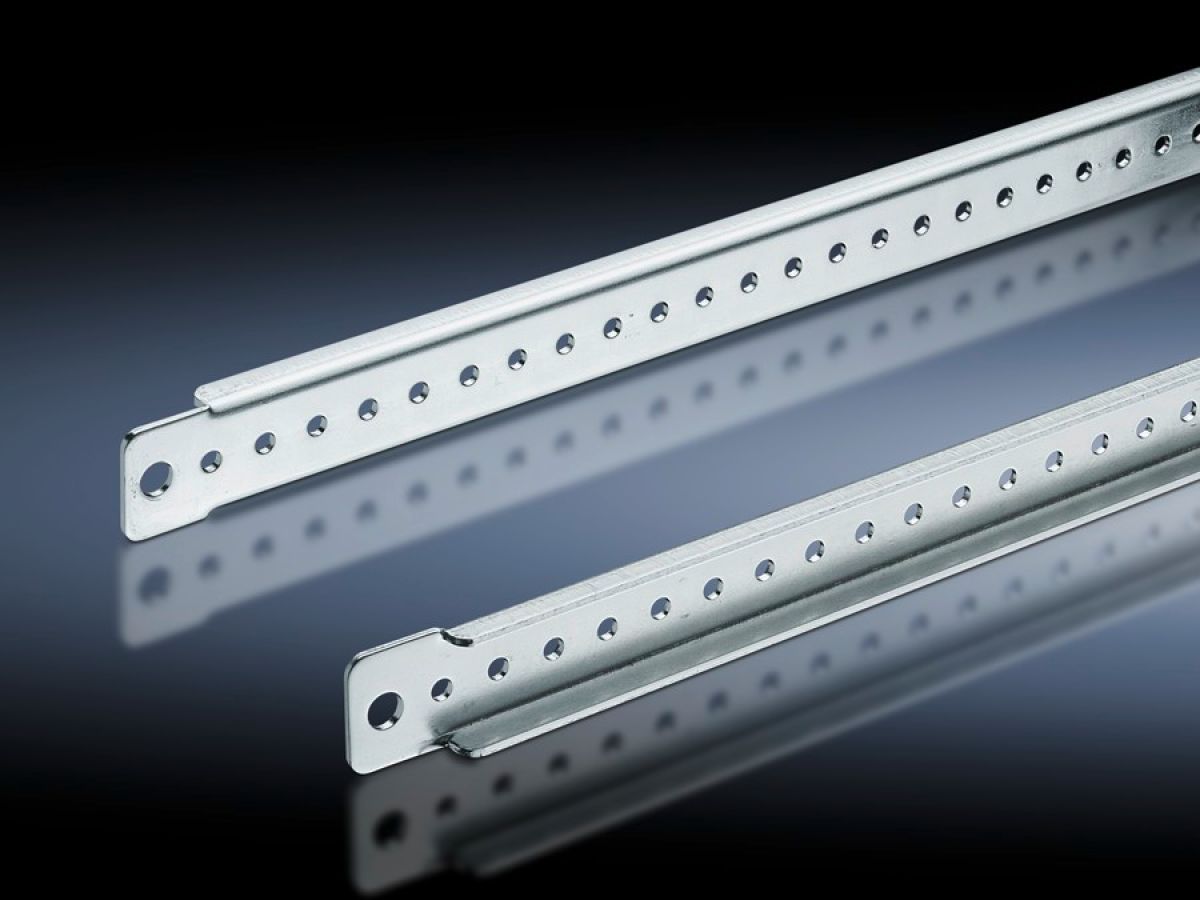

Rittal TS 4599.000, Support strip for VX, TS, VX SE, TP, AX
Rittal TS 4599.000, Support strip for VX, TS, VX SE, TP, AX
Regular price
€132,87
Regular price
Sale price
€132,87
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:TS 4599.000
For simple attachment of cable ducts, cable conduit holders, contact hazard protection cover plates, equipment installed on the door, cable clamping and attachment.
| Article number: | TS 4599.000 |
| Product description | For simple attachment of cable ducts, cable conduit holders, contact hazard protection cover plates, equipment installed on the door, cable clamping and attachment. |
| Technical specifications | 4.5 mm diameter hole on a 25 mm pitch pattern |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| Length | 890 mm |
| To fit door width | 1,000 mm |
| VX installation options | In door width 1000 mm |
| AX installation options | In enclosure height 1000 mm, in conjunction with AX rail for interior installation |
| AX stainless steel installation options | In enclosure height 1000 mm |
| TS installation options | In door width 1000 mm |
| To fit | Enclosure type: VXTSAX |
| Packs of | 20 pc(s). |
| Net weight | 9.3 kg |
| Gross weight | 9.42 kg |
| PCF per pack (cradle-to-gate) | 35.6 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177103825 |
| ETIM 9 | EC002620 |
| ETIM 8 | EC002620 |
| ECLASS 8.0 | 27189261 |
| Product description | TS Support strip, for TS, VX SE, TP, for door width: 1000 mm, L: 890 mm |
