Rittal

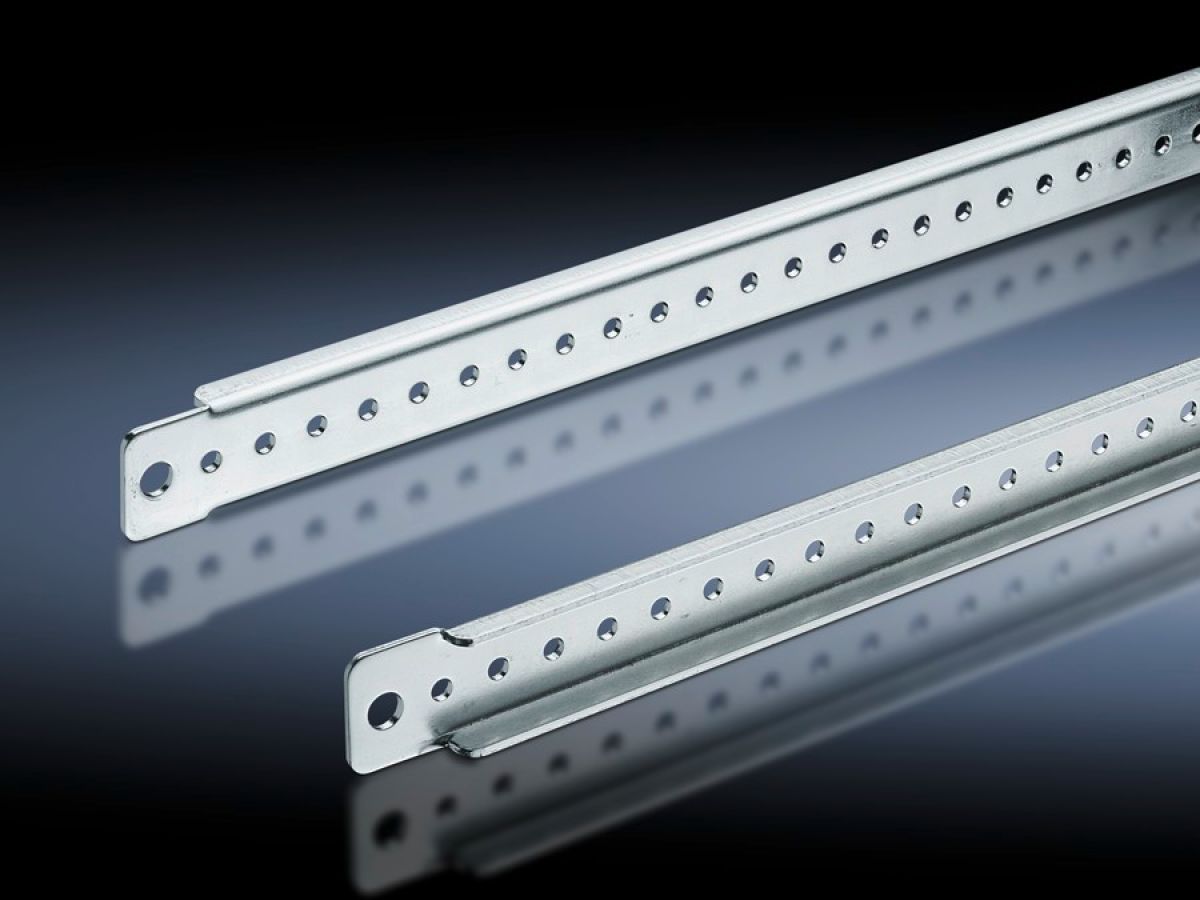

Rittal TS 4599.100, Support strip for VX, TS, VX SE, TP, AX
Rittal TS 4599.100, Support strip for VX, TS, VX SE, TP, AX
Regular price
€69,32
Regular price
Sale price
€69,32
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:TS 4599.100
For simple attachment of cable ducts, cable conduit holders, contact hazard protection cover plates, equipment installed on the door, cable clamping and attachment.
| Article number: | TS 4599.100 |
| Product description | For simple attachment of cable ducts, cable conduit holders, contact hazard protection cover plates, equipment installed on the door, cable clamping and attachment. |
| Technical specifications | 4.5 mm diameter hole on a 25 mm pitch pattern |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| Length | 320 mm |
| To fit door width | 380 mm |
| AX installation options | In door width 380 mm, with cam lock |
| To fit | Enclosure type: AXTo fit width/depth: 380 mm |
| Packs of | 20 pc(s). |
| Net weight | 3.16 kg |
| Gross weight | 3.308 kg |
| PCF per pack (cradle-to-gate) | 12.6 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177939035 |
| ETIM 9 | EC002620 |
| ETIM 8 | EC002620 |
| ECLASS 8.0 | 27189261 |
| Product description | TS Support strip, for door width 380 mm |
