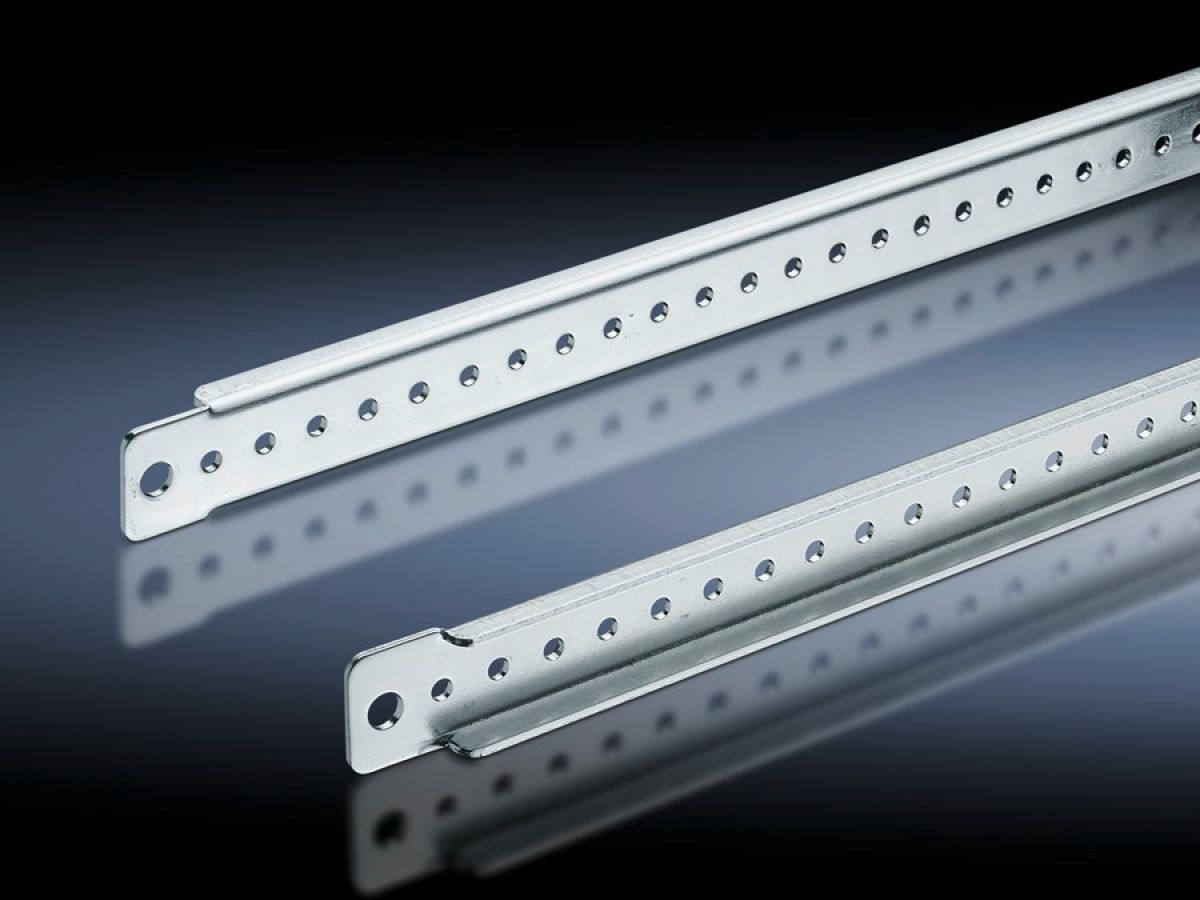

Rittal TS 4694.000, Support strip for VX, TS, VX SE, TP, AX
Rittal TS 4694.000, Support strip for VX, TS, VX SE, TP, AX
Regular price
€76,61
Regular price
Sale price
€76,61
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:TS 4694.000
For simple attachment of cable ducts, cable conduit holders, contact hazard protection cover plates, equipment installed on the door, cable clamping and attachment.
| Article number: | TS 4694.000 |
| Product description | For simple attachment of cable ducts, cable conduit holders, contact hazard protection cover plates, equipment installed on the door, cable clamping and attachment. |
| Technical specifications | 4.5 mm diameter hole on a 25 mm pitch pattern |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| Length | 340 mm |
| VX installation options | In enclosure width/depth 400 mm, on the outer mounting level |
| VX SE installation options | In enclosure width/depth 400 mm, on the outer mounting level |
| AX installation options | In door width 400 mm, with cam lock |
| TS installation options | In enclosure width/depth 400 mm, on the outer mounting level |
| TP installation options | In TP pedestal and one-piece console pedestal, in enclosure depth 400 mm, in conjunction with rail for interior installation for TP, compact enclosure HD |
| VX base/plinth installation options | In base/plinth width/depth 400 mm on the base/plinth trim panels, in conjunction with base/plinth installation bracket |
| To fit | Enclosure type: VXTSVX SETPAXTo fit width/depth: 400 mm |
| To fit | Base/plinth system VX |
| Packs of | 20 pc(s). |
| Net weight | 3.2 kg |
| Gross weight | 3.52 kg |
| PCF per pack (cradle-to-gate) | 13.5 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177108110 |
| ETIM 9 | EC002620 |
| ETIM 8 | EC002620 |
| ECLASS 8.0 | 27189261 |
| Product description | TS Support strip, for VX, TS, VX SE, TP, for outer mounting level: for W/D: 400 mm, L: 340 mm |
