Rittal

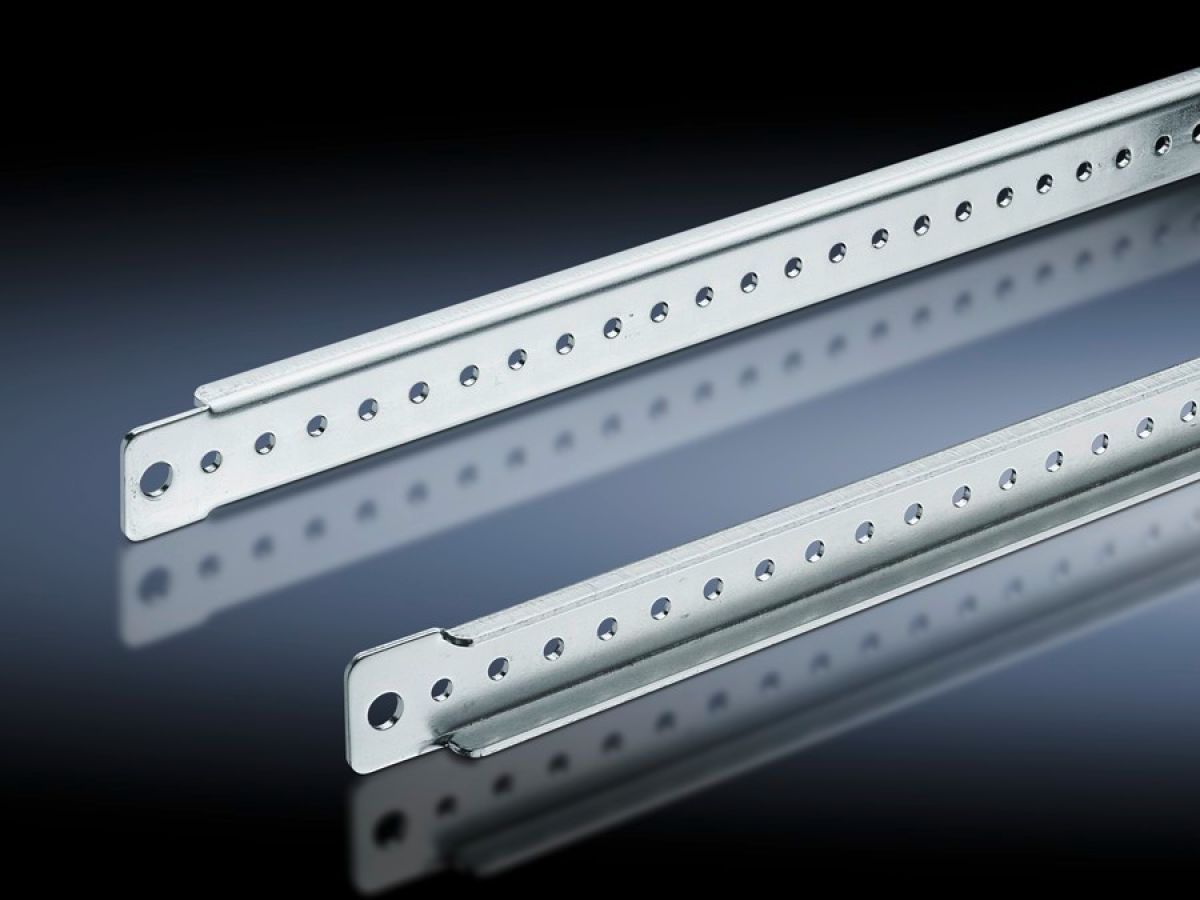

Rittal TS 4696.000, Support strip for VX, TS, VX SE, TP, AX
Rittal TS 4696.000, Support strip for VX, TS, VX SE, TP, AX
Regular price
€119,45
Regular price
Sale price
€119,45
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:TS 4696.000
For simple attachment of cable ducts, cable conduit holders, contact hazard protection cover plates, equipment installed on the door, cable clamping and attachment.
| Article number: | TS 4696.000 |
| Product description | For simple attachment of cable ducts, cable conduit holders, contact hazard protection cover plates, equipment installed on the door, cable clamping and attachment. |
| Technical specifications | 4.5 mm diameter hole on a 25 mm pitch pattern |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| Length | 540 mm |
| VX installation options | In enclosure width/depth 600 mm |
| VX SE installation options | In enclosure width/depth 600 mm, on the outer mounting level |
| AX installation options | In door width 600 mm, with cam lock |
| AX stainless steel installation options | In door width 600 mm, in hinged door, in conjunction with the perforated door strip |
| PC installation options | In enclosure width 600 mm, on the outer mounting level |
| WI installation options | In enclosure width/depth 600 mm, on the outer mounting level |
| TS installation options | In enclosure width/depth 600 mm, on the outer mounting level |
| AE installation options | In enclosure width/height 600 mm, in conjunction with rail for interior installation AE |
| TP installation options | In consoles for 3-part assembly, at the height of the enclosure cover, in conjunction with rail for interior installation for TP, compact enclosure HD |
| VX base/plinth installation options | In base/plinth width/depth 600 mm on the base/plinth trim panels, in conjunction with base/plinth installation bracket |
| To fit | Enclosure type: VXTSVX SETPPCIWAXAETo fit width/depth: 600 mm |
| To fit | Base/plinth system VX |
| Packs of | 20 pc(s). |
| Net weight | 5.22 kg |
| Gross weight | 5.54 kg |
| PCF per pack (cradle-to-gate) | 21.2 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177108158 |
| ETIM 9 | EC002620 |
| ETIM 8 | EC002620 |
| ECLASS 8.0 | 27189261 |
| Product description | TS Support strip, for VX, TS, VX SE, TP, for outer mounting level: for W/D: 600 mm, L: 540 mm |
