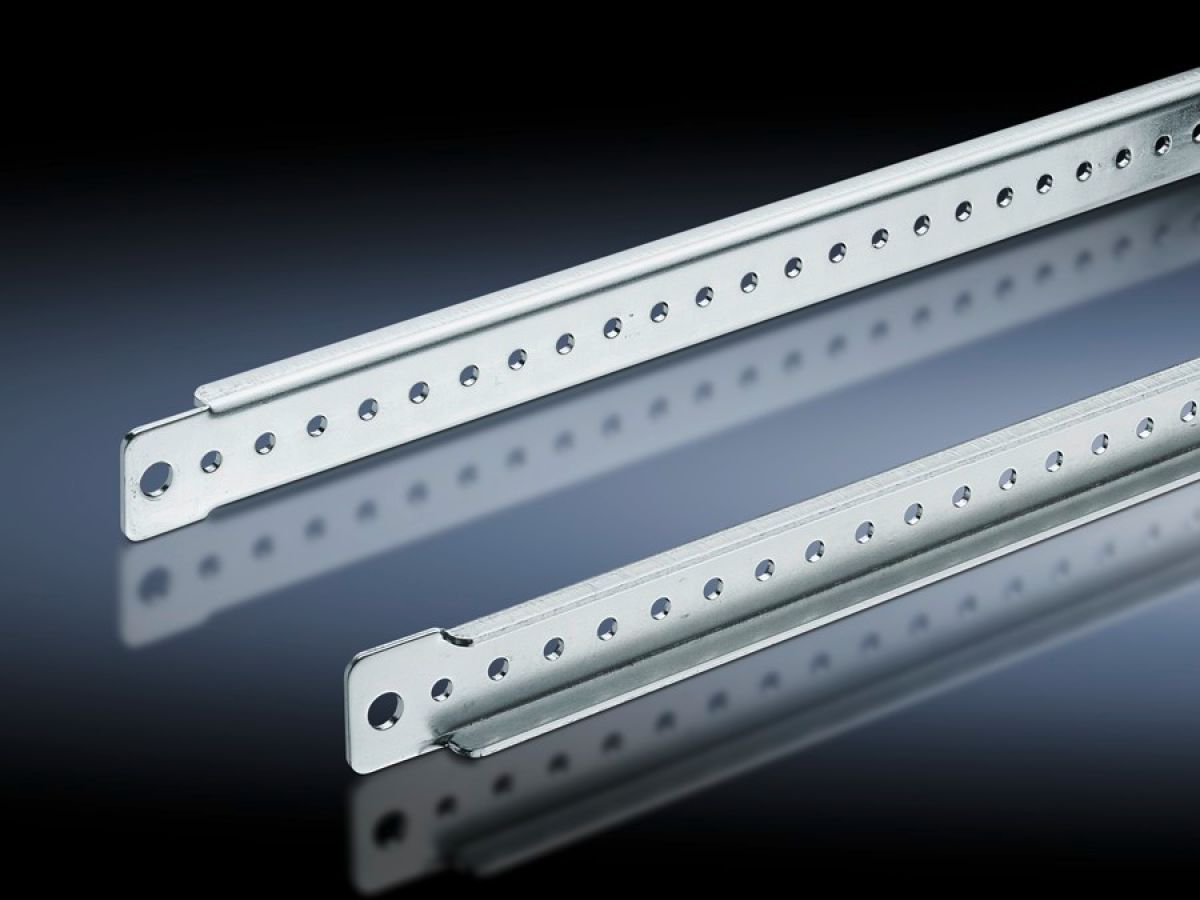

Rittal TS 4697.000, Support strip for VX, TS, VX SE, TP, AX
Rittal TS 4697.000, Support strip for VX, TS, VX SE, TP, AX
Regular price
€131,30
Regular price
Sale price
€131,30
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:TS 4697.000
For simple attachment of cable ducts, cable conduit holders, contact hazard protection cover plates, equipment installed on the door, cable clamping and attachment.
| Article number: | TS 4697.000 |
| Product description | For simple attachment of cable ducts, cable conduit holders, contact hazard protection cover plates, equipment installed on the door, cable clamping and attachment. |
| Technical specifications | 4.5 mm diameter hole on a 25 mm pitch pattern |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| Length | 740 mm |
| VX installation options | In enclosure width/depth 800 mm |
| VX SE installation options | In enclosure width/depth 800 mm |
| AX installation options | In door width 800 mm, with cam lock |
| AX stainless steel installation options | In door width 800 mm, with cam lock, in conjunction with the perforated door strip |
| PC installation options | In enclosure width 800 mm, on the outer mounting level |
| TS installation options | In enclosure width/depth 800 mm, on the outer mounting level |
| AE installation options | In enclosure width/height 800 mm, in conjunction with rail for interior installation AE |
| VX base/plinth installation options | In base/plinth width/depth 800 mm on the base/plinth trim panels, in conjunction with base/plinth installation bracket |
| To fit | Enclosure type: VXTSVX SEPCAXAETo fit width/depth: 800 mm |
| To fit | Base/plinth system VX |
| Packs of | 20 pc(s). |
| Net weight | 7.5 kg |
| Gross weight | 7.7 kg |
| PCF per pack (cradle-to-gate) | 29.1 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177108172 |
| ETIM 9 | EC002620 |
| ETIM 8 | EC002620 |
| ECLASS 8.0 | 27189261 |
| Product description | TS Support strip, for VX, TS, VX SE, TP, for outer mounting level: for W/W, D: 800 mm, L: 740 mm |
