Rittal

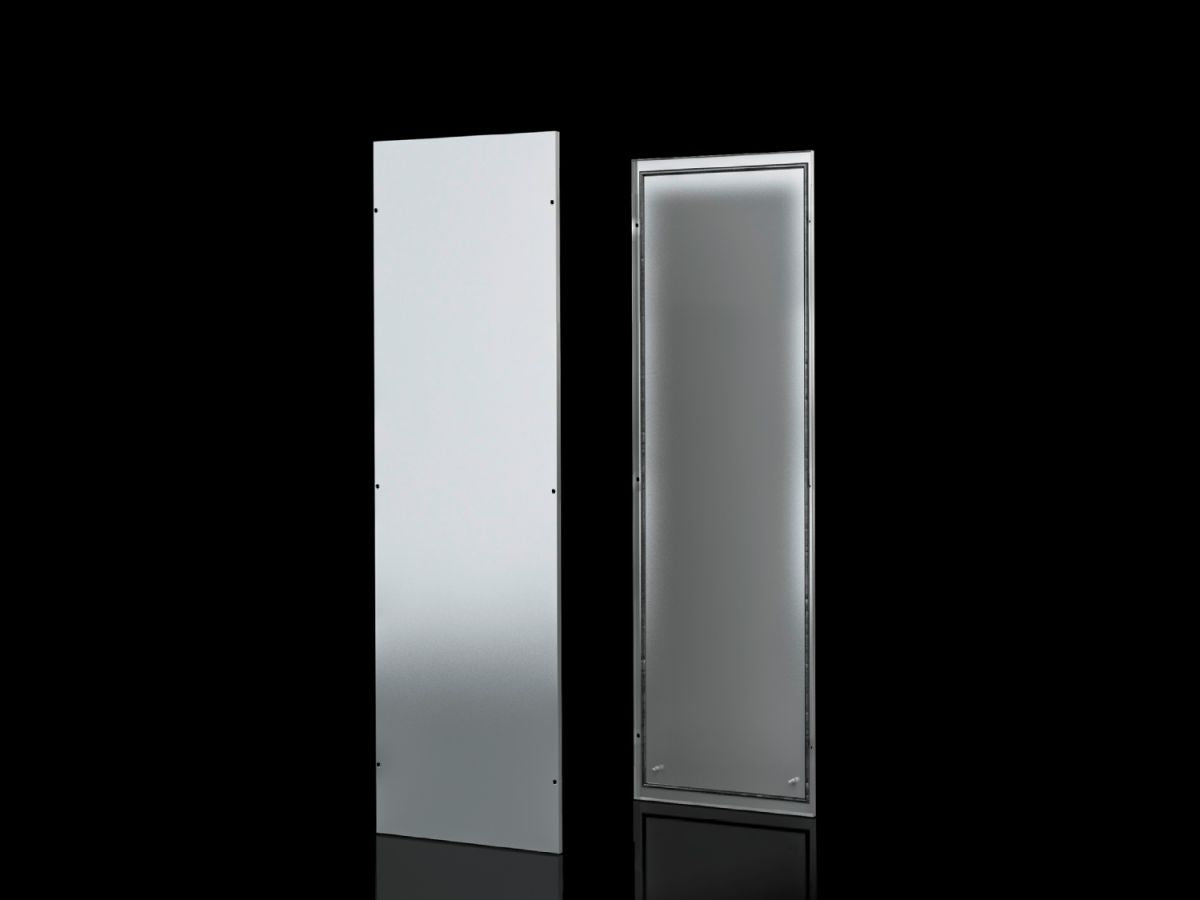

Rittal TS 8186.235, Side panel, screw-fastened, sheet steel for TS, TS IT
Rittal TS 8186.235, Side panel, screw-fastened, sheet steel for TS, TS IT
Regular price
€204,41
Regular price
Sale price
€204,41
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:TS 8186.235
Side panels, screw-fastened, sheet steel, for TS.
| Article number: | TS 8186.235 |
| Benefits | Automatic potential equalisation and higher EMC protection due to enclosure panel holders with earthing insert |
| Material | Sheet steel, 1.5 mm |
| Surface finish | Dipcoat-primed, powder-coated on the outside |
| Colour | RAL 7035 |
| Supply includes | Assembly parts |
| Note | Enclosure panel holders may optionally be fitted from the inside or outside of the enclosure |
| To fit | Enclosure type: TSTS ITHeight: 1,800 mmDepth: 600 mm |
| IP protection category to IEC 60 529 | IP 55 |
| Basic material | Sheet steel |
| Packs of | 2 pc(s). |
| Net weight | 25 kg |
| Gross weight | 26.6 kg |
| Customs tariff number | 94039910 |
| EAN | 4028177205239 |
| ETIM 9 | EC002524 |
| ECLASS 8.0 | 27182101 |
| Product description | TS Side panel, screw-fastened, for TS, TS IT, for WD: 1800x600 mm, Sheet steel |
