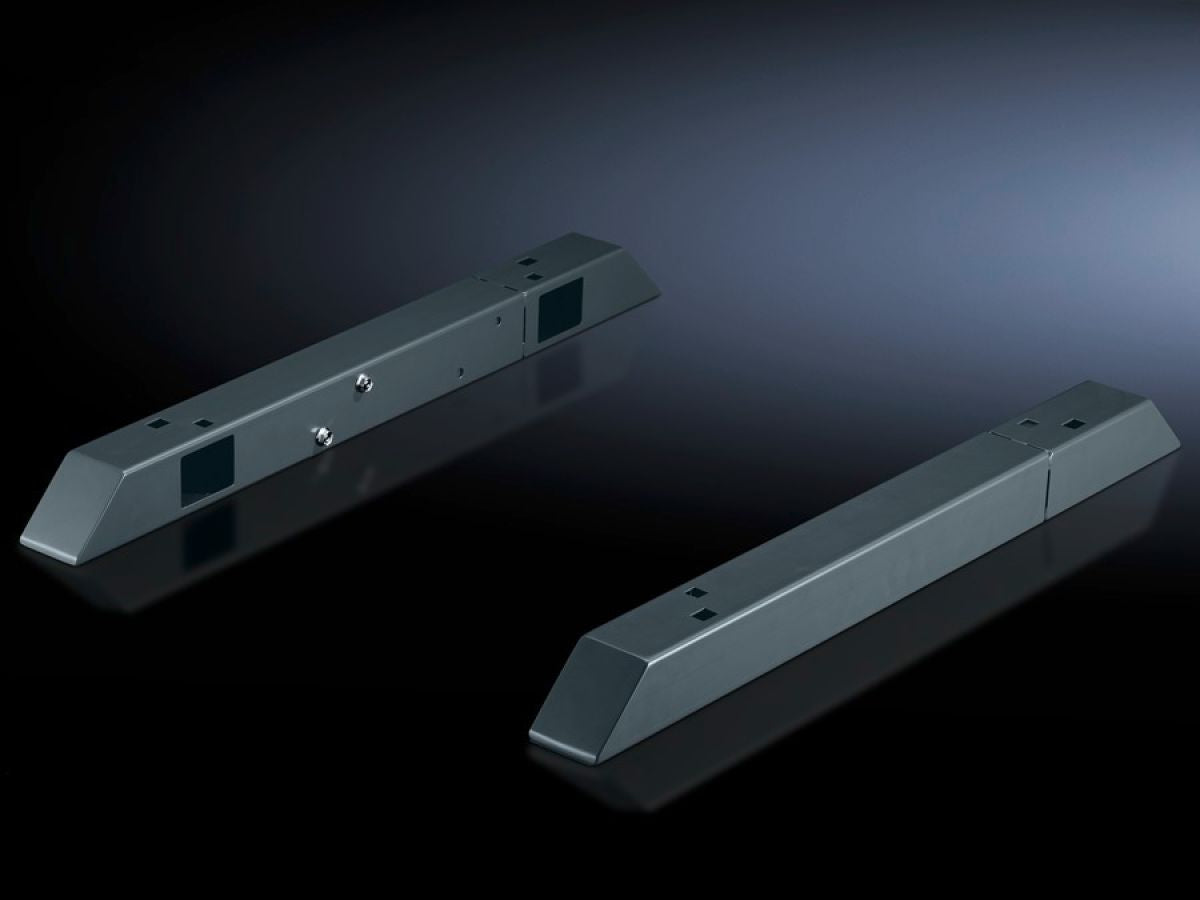

Rittal TS 8601.680, Cross member for VX, TS, VX SE, TP, PC, IW, Blue e+ chillers
Rittal TS 8601.680, Cross member for VX, TS, VX SE, TP, PC, IW, Blue e+ chillers
Regular price
€234,11
Regular price
Sale price
€234,11
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:TS 8601.680
To increase stability, the cross member is positioned below the base frame of the enclosure and protrudes 138 mm at the front and rear.
| Article number: | TS 8601.680 |
| Product description | To increase stability, the cross member is positioned below the base frame of the enclosure and protrudes 138 mm at the front and rear. For deeper enclosures, the rear part may be extended and screw-fastened again. For screw-fastening to the floor and enclosure with mounting hole at the sides, front and rear. The castors and levelling feet may be secured to the welded nuts M12. |
| Benefits | To increase stability |
| Material | Sheet steel |
| Surface finish | Spray-finished |
| Colour | RAL 7015 |
| Supply includes | 1 cross member, left1 cross member, right |
| Installation options | For screw-fastening to the floor and enclosure with mounting hole at the sides, front and rear |
| Note | Ensure sufficient stability to prevent the enclosure from tipping over! |
| Dimensions | Height: 70 mm |
| To fit | Enclosure type: VXTSVX SETPPCIWDepth: = 600 mm= 800 mm |
| Suitable for depth | = 600 mm= 800 mm |
| Packs of | 2 pc(s). |
| Net weight | 10 kg |
| Gross weight | 10.139 kg |
| PCF per pack (cradle-to-gate) | 39.6 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177382640 |
| ETIM 9 | EC000721 |
| ECLASS 8.0 | 27182003 |
| Product description | TS Cross member, adjustable, for D: 600/800 mm |
