Rittal

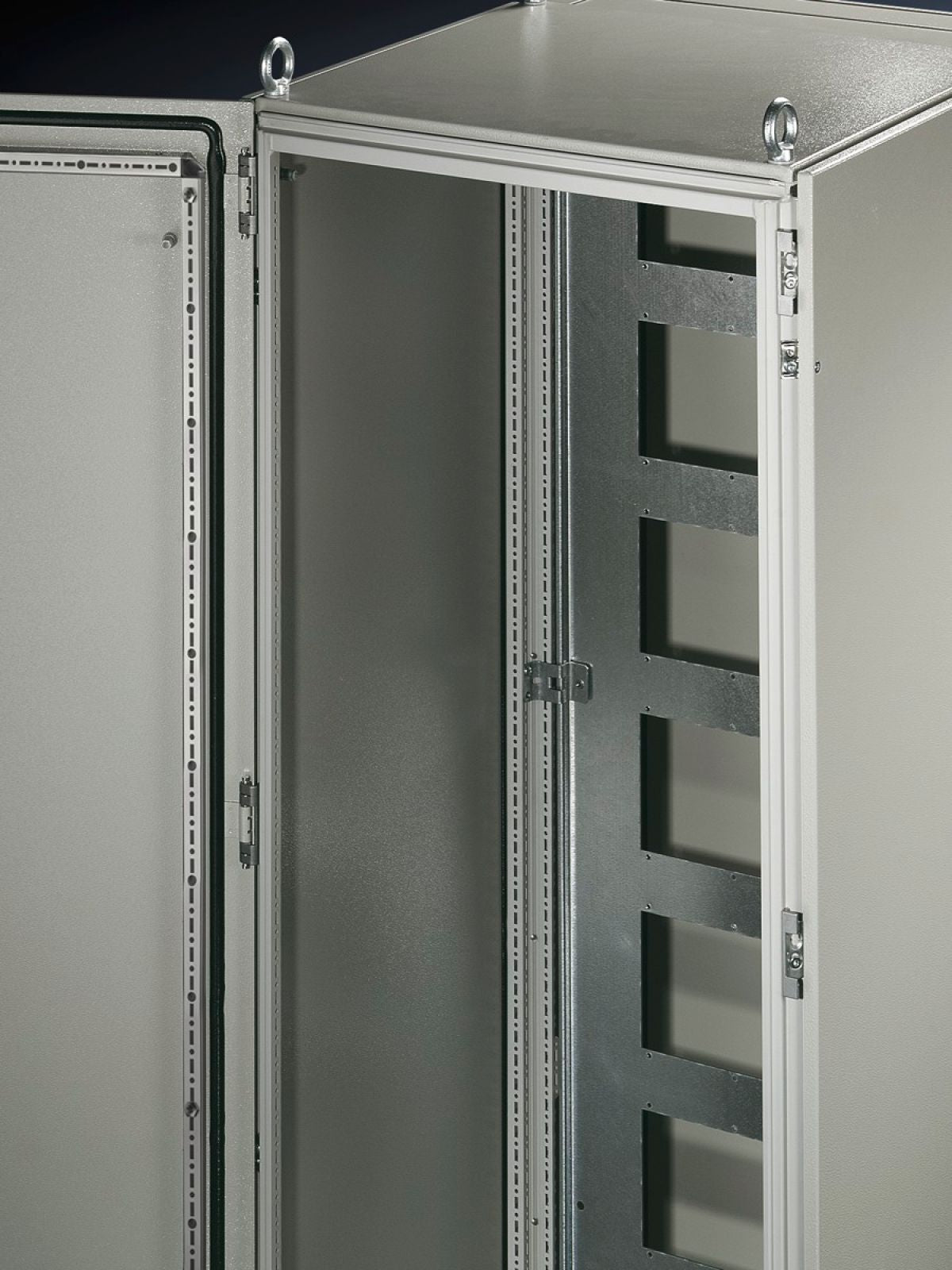

Rittal TS 8609.130, Divider panel for module plates for TS
Rittal TS 8609.130, Divider panel for module plates for TS
Regular price
€139,15
Regular price
Sale price
€139,15
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:TS 8609.130
With cut-outs for the installation of module plates for connectors or for cable entry, and also for the entry of busbar systems and other installed equipment.
| Article number: | TS 8609.130 |
| Product description | With cut-outs for the installation of module plates for connectors or for cable entry, and also for the entry of busbar systems and other installed equipment. All-round, double fold for stability and to hold the seal. Thanks to the symmetry of the enclosure frame, divider panels may also be fitted at the rear, dimensions permitting. |
| Benefits | More options: The cut-outs of a divider panel are individually equipped with module plates for 16-pole or 24-pole connectors, with module plates for cable entry and with solid module plates. |
| Applications | Notches in the corners and half-way up the sides permit the use of angular baying brackets and baying brackets, even with a divider panel fitted. |
| Material | Sheet steel, 2.0 mm |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts and multi-tooth screws M5 x 12 mm for mounting the module plates. |
| To fit | Enclosure type: TSHeight: = 2,000 mmDepth: = 600 mm |
| Installation options | For mounting on the outer mounting level |
| Packs of | 1 pc(s). |
| Net weight | 10.239 kg |
| Gross weight | 10.778 kg |
| Customs tariff number | 94039910 |
| EAN | 4028177211759 |
| ETIM 9 | EC002525 |
| ECLASS 8.0 | 27182102 |
| Product description | TS Divider panel, for module plates, for WD: 2000x600 mm, Number of cut-outs: 10 |
