Rittal

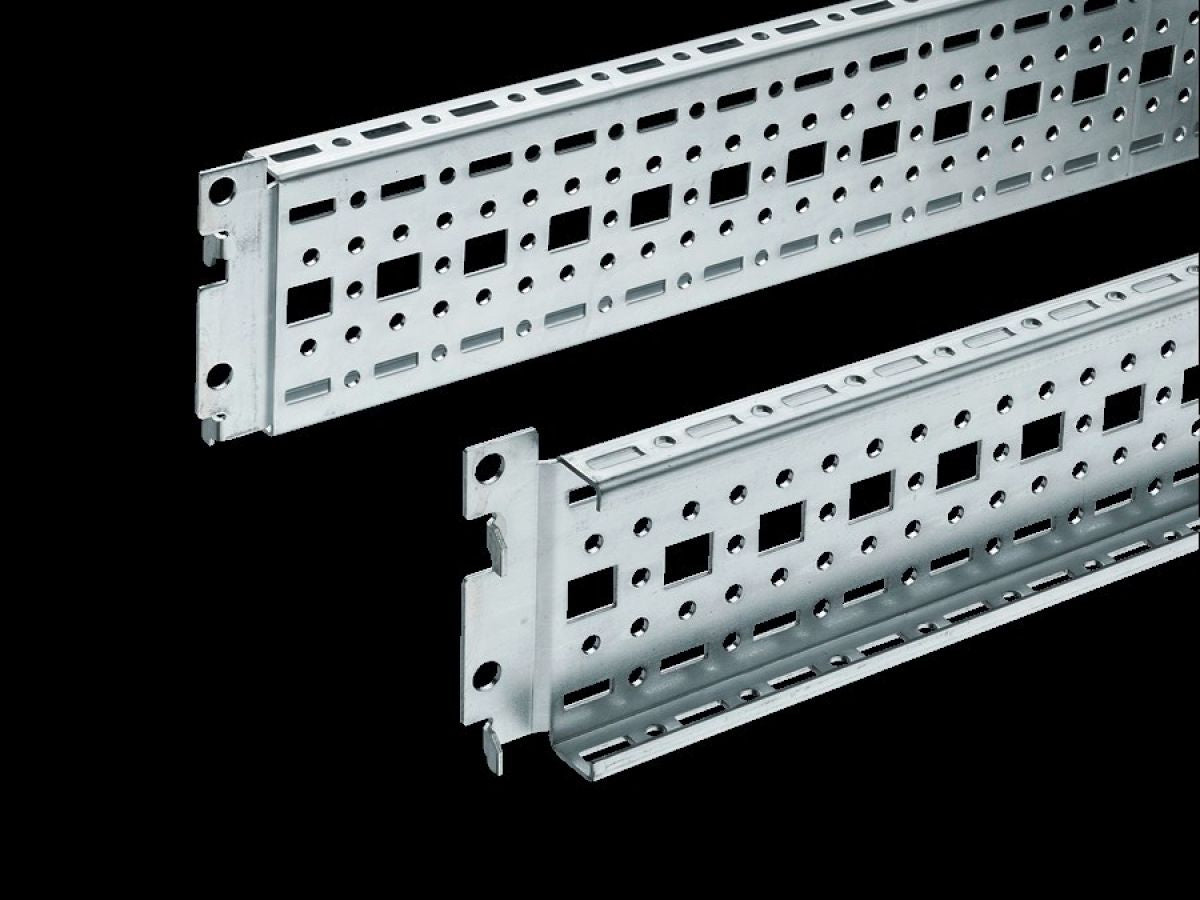

Rittal TS 8612.050, TS punched section with mounting flange, 17 x 73 mm
Rittal TS 8612.050, TS punched section with mounting flange, 17 x 73 mm
Regular price
€62,33
Regular price
Sale price
€62,33
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:TS 8612.050
For universal skeleton structures or partial assembly. Simply locate into the punchings and secure.
| Article number: | TS 8612.050 |
| Design | For the inner mounting level and for mounting on doors |
| Product description | For universal skeleton structures or partial assembly. Simply locate into the punchings and secure. |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | Assembly screws |
| Length | 490 mm |
| To fit door width | 600 mm |
| Installation options | On the vertical TS, VX SE enclosure section: On the inner mounting level, height-offset all-round |
| Assembly instruction | The rail for internal mounting is required when installing in TP |
| To fit | Enclosure type: VX SETPPCIWTo fit width/depth: 500 mm |
| Packs of | 4 pc(s). |
| Net weight | 2.008 kg |
| Gross weight | 2.199 kg |
| PCF per pack (cradle-to-gate) | 8.6 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177212084 |
| ETIM 9 | EC002625 |
| ECLASS 8.0 | 27189234 |
| Product description | TS punched section with mounting flange, 17 x 73 mm, for inner mounting level: for W/D: 500 mm, for door width: 600 mm, L: 490 mm |
