Rittal

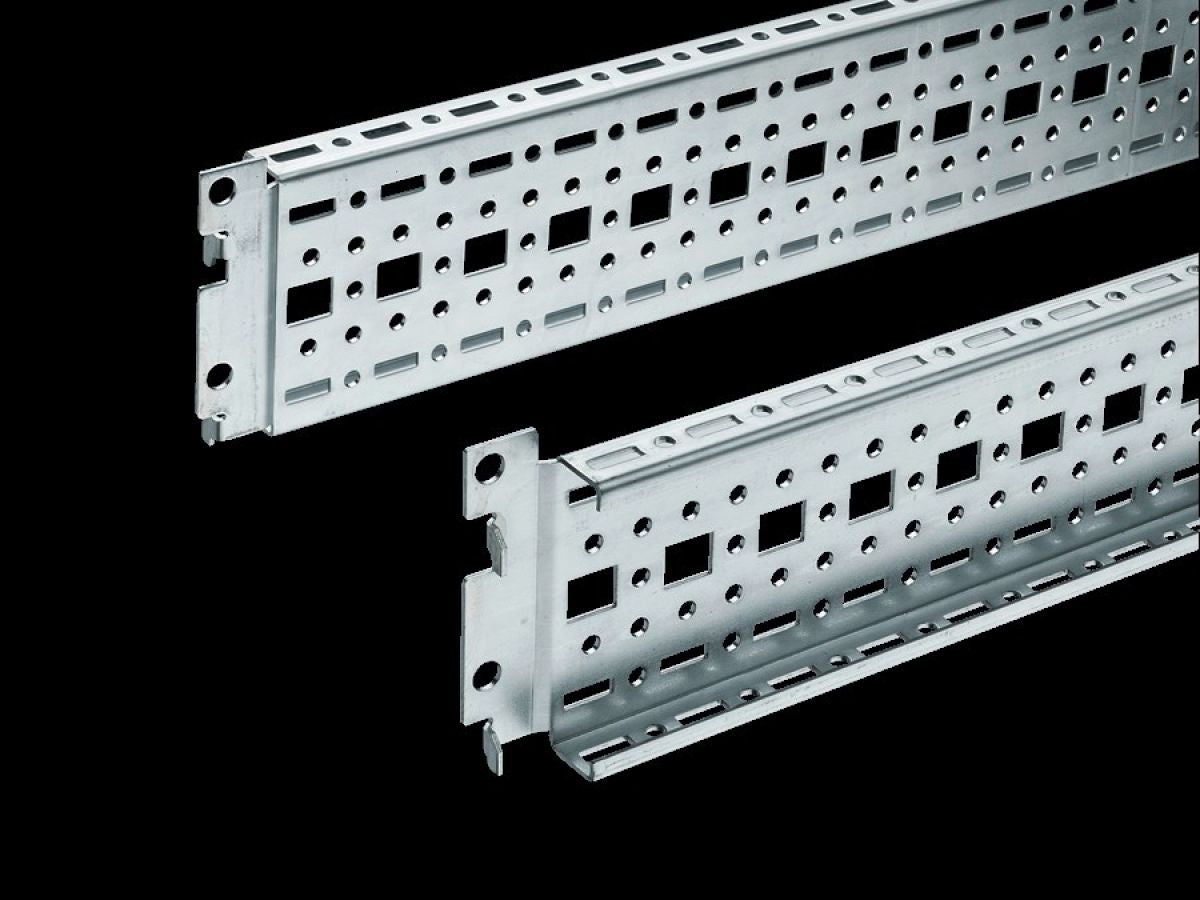

Rittal TS 8612.090, TS punched section with mounting flange, 17 x 73 mm
Rittal TS 8612.090, TS punched section with mounting flange, 17 x 73 mm
Regular price
€90,32
Regular price
Sale price
€90,32
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:TS 8612.090
For universal skeleton structures or partial assembly. Simply locate into the punchings and secure.
| Article number: | TS 8612.090 |
| Design | For mounting on doors |
| Product description | For universal skeleton structures or partial assembly. Simply locate into the punchings and secure. |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | Assembly screws |
| Length | 890 mm |
| To fit door width | 1,000 mm |
| Installation options | On the vertical TS, VX SE enclosure section: On the inner mounting level, height-offset all-round |
| Assembly instruction | The rail for internal mounting is required when installing in TP |
| To fit | Enclosure type: VX SETPPCIW |
| Packs of | 4 pc(s). |
| Net weight | 3.3 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177232648 |
| ETIM 9 | EC002625 |
| ECLASS 8.0 | 27189234 |
| Product description | TS punched section with mounting flange, 17 x 73 mm, for door width: 1000 mm, L: 890 mm |
