Rittal

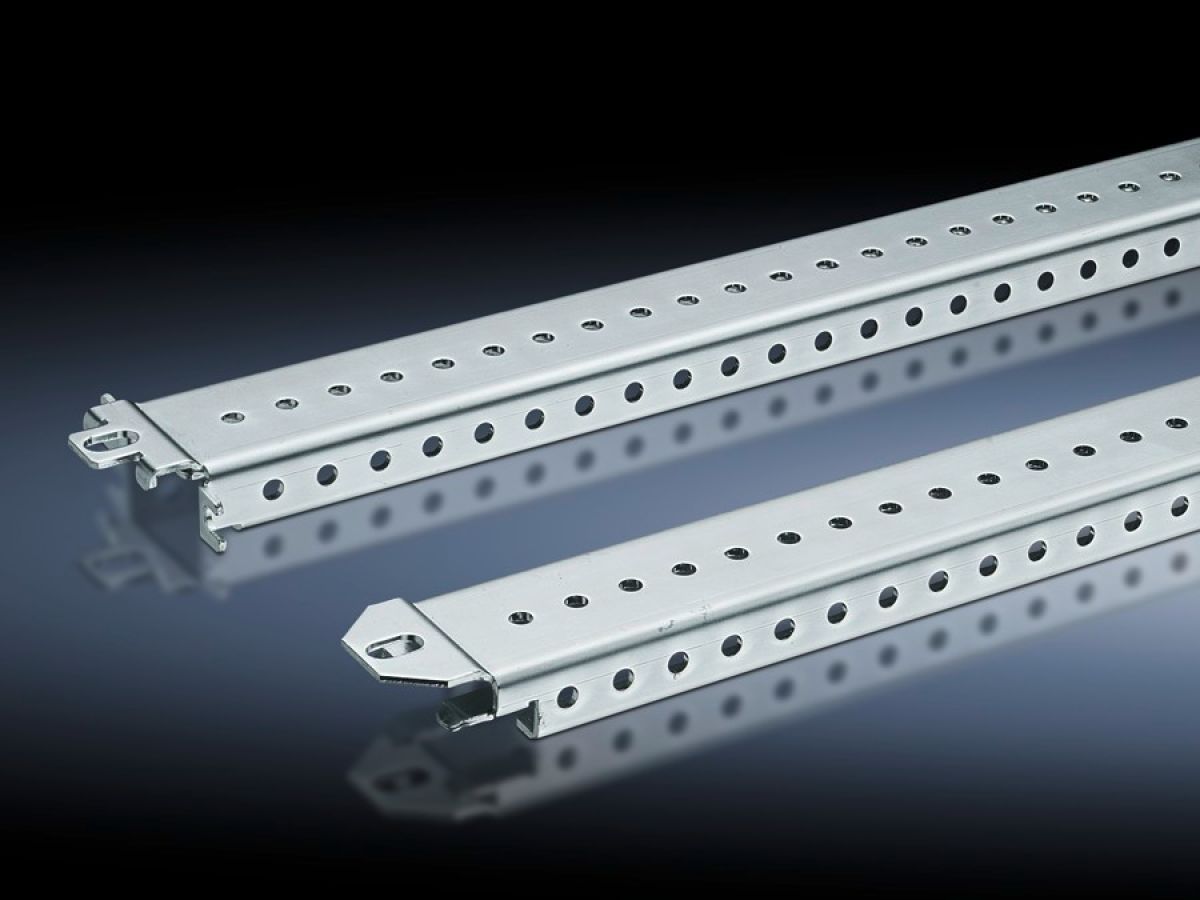

Rittal TS 8612.250, TS punched rail 18 x 38 mm
Rittal TS 8612.250, TS punched rail 18 x 38 mm
Regular price
€41,91
Regular price
Sale price
€41,91
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:TS 8612.250
Installation on the vertical TS enclosure section on the outer mounting level, on the horizontal TS enclosure section and on the base configuration rail for CM.
| Article number: | TS 8612.250 |
| Product description | Simply locate and secure with a screw. The location system makes assembly and dismantling easier. It only needs to be secured on one side, but may be secured on both sides if required. |
| Material | Sheet steel |
| Supply includes | Assembly screws |
| Installation options | On the vertical TS, VX SE enclosure section on the outer mounting level |
| Note | In enclosures with a mounting plate, 2 punched rails are already included with the supply. |
| To fit | To fit width/depth: 500 mm |
| Packs of | 4 pc(s). |
| Net weight | 1.64 kg |
| Gross weight | 2.04 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177213098 |
| ETIM 9 | EC002625 |
| ECLASS 8.0 | 27189234 |
| Product description | TS Punched rail 18 x 38 mm, for W/D: 500 mm |
