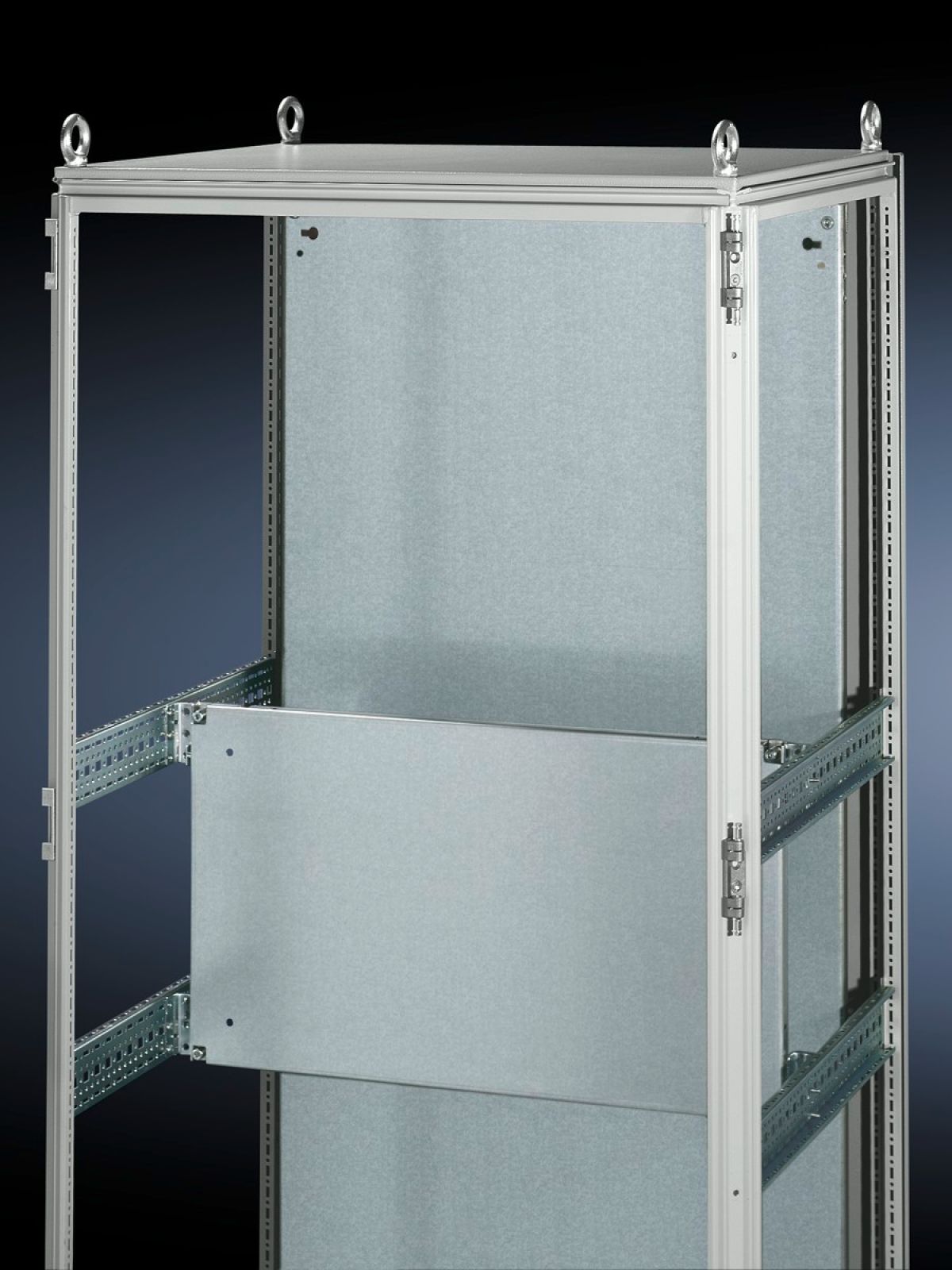

Rittal TS 8614.050, Partial mounting plates for TS, VX SE
Rittal TS 8614.050, Partial mounting plates for TS, VX SE
Regular price
€85,32
Regular price
Sale price
€85,32
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:TS 8614.050
For universal interior installation and additional mounting levels.
| Article number: | TS 8614.050 |
| Product description | For universal interior installation, also in conjunction with punched sections with mounting flanges and support strips. Defective assemblies are quickly and easily replaced. Additional mounting levels. |
| Material | Sheet steel, 2.5 mm |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| Note | Partial mounting plates are fastened directly onto the vertical enclosure sections via the inner mounting level using the assembly parts supplied loose. In this mounting position (in both the width and the depth) they form one level with TS punched sections with mounting flanges 17 x 73 mm and TS support strips for the inner mounting level. |
| Dimensions | Width: 900 mmHeight: 400 mm |
| To fit | Enclosure type: TSVX SEWidth: = 1,000 mmDepth: = 500 mm |
| Packs of | 1 pc(s). |
| Net weight | 8.365 kg |
| Gross weight | 8.805 kg |
| Customs tariff number | 94039910 |
| EAN | 4028177212268 |
| ETIM 9 | EC000213 |
| ECLASS 8.0 | 27409216 |
| Product description | TS Partial mounting plate, for TS, SE, W/DH: 900x400 mm |
