Rittal

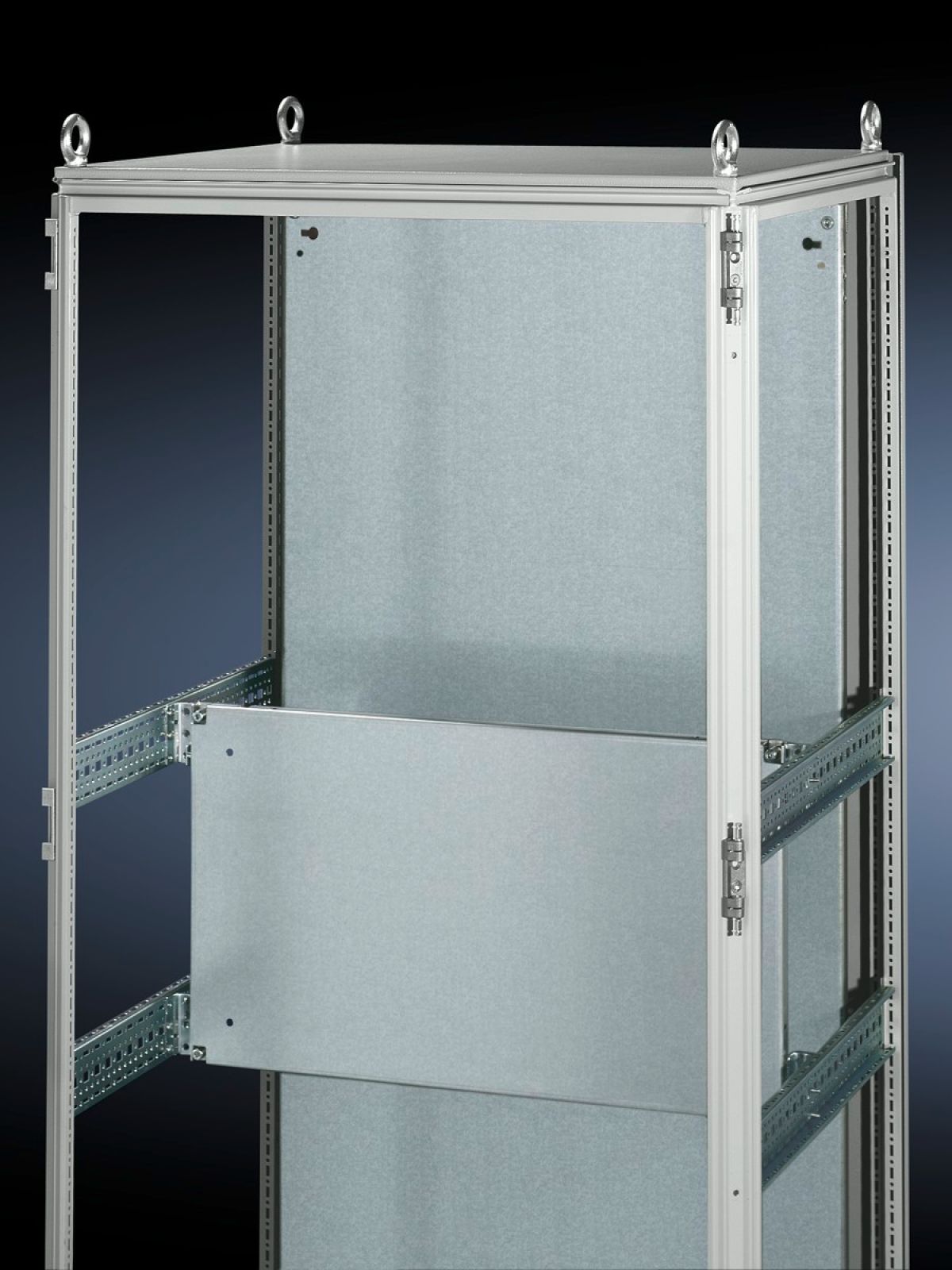

Rittal TS 8614.675, Partial mounting plates for TS, VX SE
Rittal TS 8614.675, Partial mounting plates for TS, VX SE
Regular price
€72,32
Regular price
Sale price
€72,32
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:TS 8614.675
For universal interior installation and additional mounting levels.
| Article number: | TS 8614.675 |
| Product description | For universal interior installation, also in conjunction with punched sections with mounting flanges and support strips. Defective assemblies are quickly and easily replaced. Additional mounting levels. |
| Material | Sheet steel, 2.5 mm |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| Note | Partial mounting plates are fastened directly onto the vertical enclosure sections via the inner mounting level using the assembly parts supplied loose. In this mounting position (in both the width and the depth) they form one level with TS punched sections with mounting flanges 17 x 73 mm and TS support strips for the inner mounting level. |
| Note on Model No. | Also suitable for installing in PC enclosures based on TS behind the lower front door, IW enclosures, height 900 and 1000 mm |
| Dimensions | Width: 500 mmHeight: 775 mm |
| To fit | Enclosure type: TSVX SEWidth: = 600 mmDepth: = 600 mm |
| Packs of | 1 pc(s). |
| Net weight | 9.5 kg |
| Gross weight | 9.76 kg |
| Customs tariff number | 94039910 |
| EAN | 4028177367890 |
| ETIM 9 | EC000213 |
| ECLASS 8.0 | 27409216 |
| Product description | TS Partial mounting plate, for TS, SE, W/DH: 500x775 mm |
