Rittal

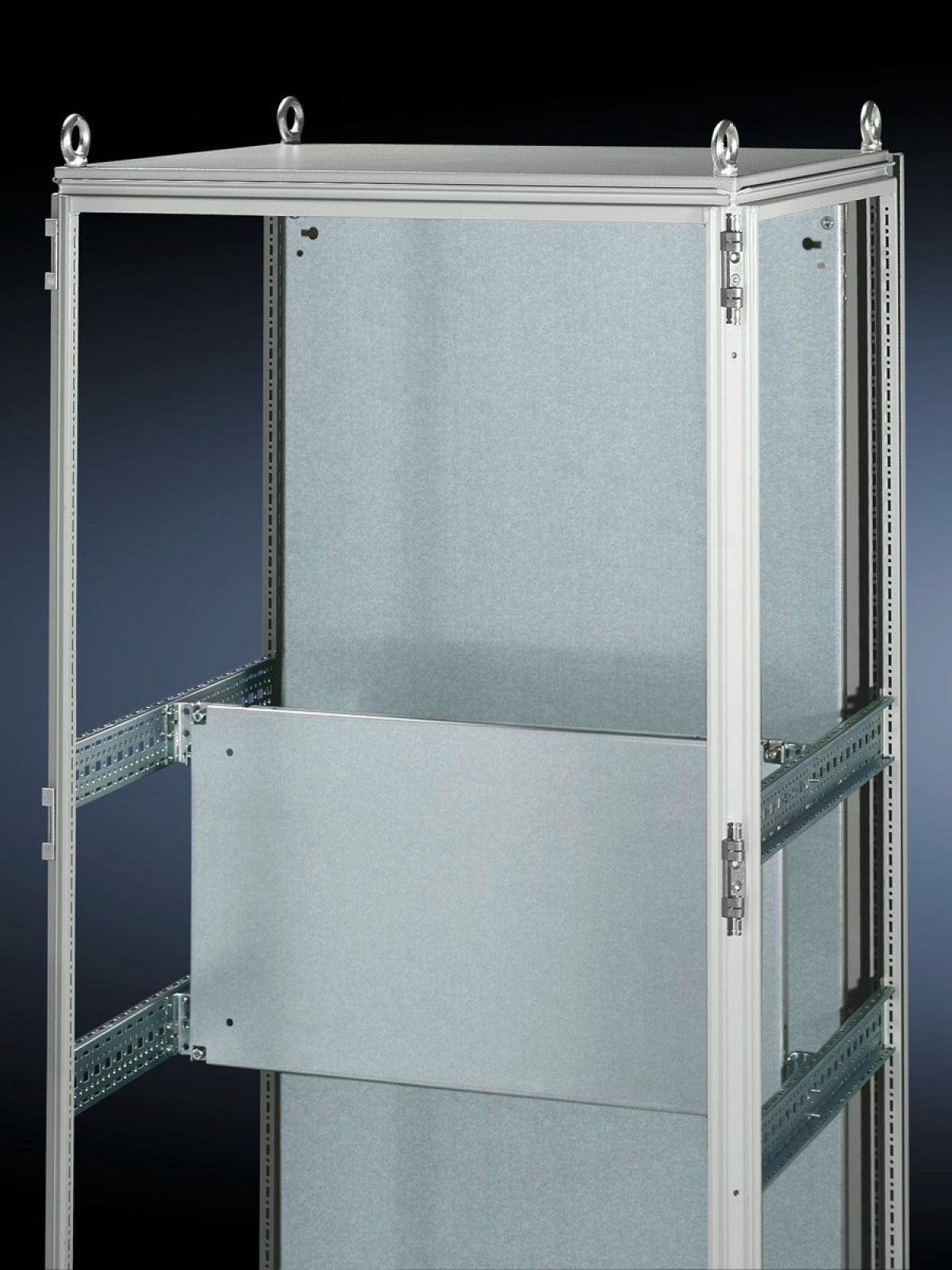

Rittal TS 8614.850, Partial mounting plates for TS, VX SE
Rittal TS 8614.850, Partial mounting plates for TS, VX SE
Regular price
€67,47
Regular price
Sale price
€67,47
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:TS 8614.850
For universal interior installation and additional mounting levels.
| Article number: | TS 8614.850 |
| Product description | For universal interior installation, also in conjunction with punched sections with mounting flanges and support strips. Defective assemblies are quickly and easily replaced. Additional mounting levels. |
| Material | Sheet steel, 2.5 mm |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| Note | Partial mounting plates are fastened directly onto the vertical enclosure sections via the inner mounting level using the assembly parts supplied loose. In this mounting position (in both the width and the depth) they form one level with TS punched sections with mounting flanges 17 x 73 mm and TS support strips for the inner mounting level. |
| Dimensions | Width: 700 mmHeight: 400 mm |
| To fit | Enclosure type: TSVX SEWidth: = 800 mmDepth: = 500 mm= 800 mm |
| Packs of | 1 pc(s). |
| Net weight | 6.8 kg |
| Gross weight | 7.16 kg |
| Customs tariff number | 94039910 |
| EAN | 4028177212350 |
| ETIM 9 | EC000213 |
| ECLASS 8.0 | 27409216 |
| Product description | TS Partial mounting plate, for TS, SE, W/DH: 700x400 mm |
