Rittal

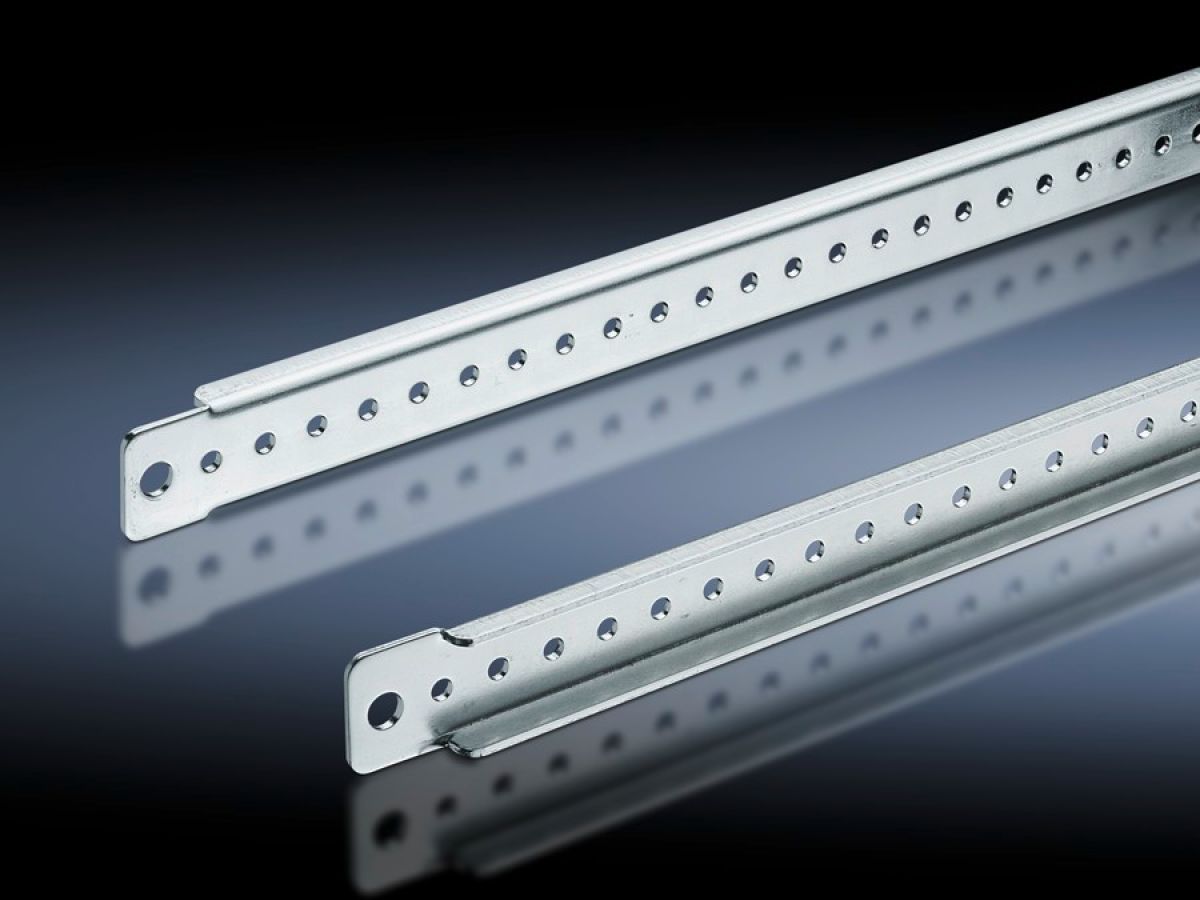

Rittal TS 8800.130, Support strip for VX, TS, VX SE, TP, AX
Rittal TS 8800.130, Support strip for VX, TS, VX SE, TP, AX
Regular price
€108,74
Regular price
Sale price
€108,74
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:TS 8800.130
For simple attachment of cable ducts, cable conduit holders, contact hazard protection cover plates, equipment installed on the door, cable clamping and attachment.
| Article number: | TS 8800.130 |
| Product description | For simple attachment of cable ducts, cable conduit holders, contact hazard protection cover plates, equipment installed on the door, cable clamping and attachment. |
| Technical specifications | 4.5 mm diameter hole on a 25 mm pitch pattern |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| Length | 590 mm |
| VX SE installation options | In enclosure width/depth 600 mm, on the inner mounting level |
| AX installation options | In enclosure height 700 mm and in enclosure width 600 mm, in conjunction with rail for interior installation AX |
| AX stainless steel installation options | In enclosure width 600 mm |
| PC installation options | In enclosure width 600 mm, on the inner mounting level |
| WI installation options | In enclosure width/depth 600 mm, on the inner mounting level |
| TS installation options | In enclosure width/depth 600 mm, on the inner mounting level |
| TP installation options | In TP pedestal and one-piece console pedestal width 600 mm, in conjunction with rail for interior installation TP, compact enclosure HD |
| To fit | Enclosure type: TSVX SETPPCIWAXTo fit width/depth: 600 mm |
| Packs of | 20 pc(s). |
| Net weight | 5.86 kg |
| Gross weight | 6.165 kg |
| PCF per pack (cradle-to-gate) | 23.5 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177212503 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189261 |
| Product description | TS Support strip, for TS, VX SE, TP, for inner mounting level: for W/D: 600 mm, L: 590 mm |
