Rittal
Rittal TS 8800.330, Support bracket TS
Rittal TS 8800.330, Support bracket TS
Regular price
€40,34
Regular price
Sale price
€40,34
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:TS 8800.330
For the attachment of punched sections without mounting flange 23 x 73 mm or punched rails 23 x 23 mm.
| Article number: | TS 8800.330 |
| Product description | For the attachment of punched sections without mounting flange 23 x 73 mm or punched rails 23 x 23 mm. |
| Material | Die-cast zinc |

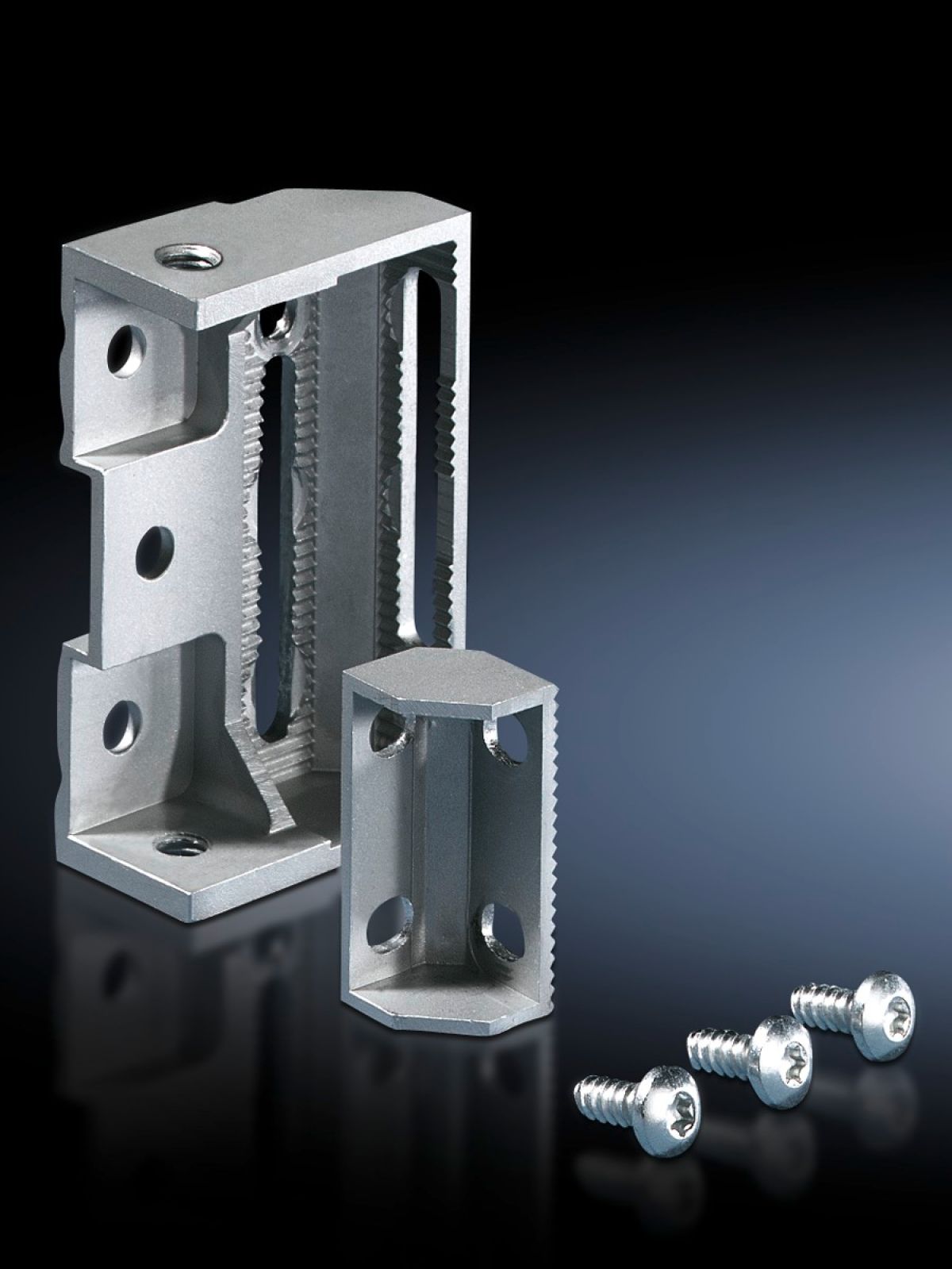

| Supply includes | 1 set = 1 support bracket, 1 stay, 3 metal screws 5.5 x 13 mm |
| Installation options | On the vertical TS enclosure section (25 mm pitch pattern, 2 mm increments) |
| To fit enclosure type | TS |
| Packs of | 6 pc(s). |
| Net weight | 0.93 kg |
| Gross weight | 1.12 kg |
| Customs tariff number | 73182900 |
| EAN | 4028177230958 |
| ETIM 9 | EC002625 |
| ECLASS 8.0 | 27189234 |
| Product description | TS Support bracket, for direct fixation on TS profile, of PS punched rail 23x23 mm/, PS punched rail 23x23 mm |
