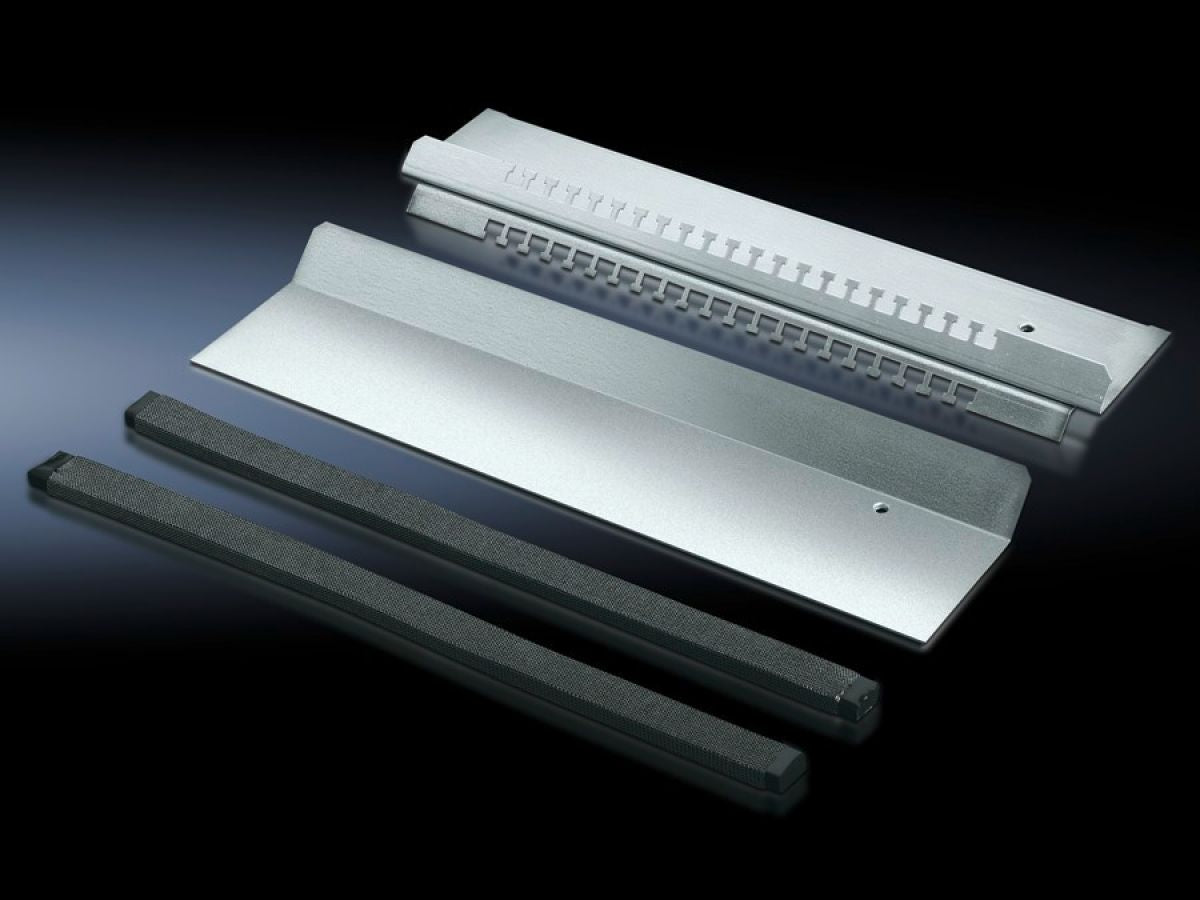

Rittal TS 8800.660, EMC gland plate
Rittal TS 8800.660, EMC gland plate
Regular price
€104,74
Regular price
Sale price
€104,74
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:TS 8800.660
For shielded cables with a maximum diameter of 20 mm in conjunction with standard gland plates.
| Article number: | TS 8800.660 |
| Product description | For shielded cables with a maximum diameter of 20 mm. Combined EMC contacting and cable fastening provide low-resistance contact between the cable shield and gland plate. For all 400, 500, 600 and 800 mm deep enclosures in conjunction with standard gland plates. |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | Cable clamp strip with hammer-head punching1 sliding gland plate2 EMC seals |
| To fit | Enclosure type: TSWidth: = 600 mm |
| Note | Standard-compliant IP protection category not supported |
| Packs of | 1 pc(s). |
| Net weight | 1.7 kg |
| Gross weight | 1.8 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177214880 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189261 |
| Product description | TS EMC gland plate, W: 600 mm |
