Rittal

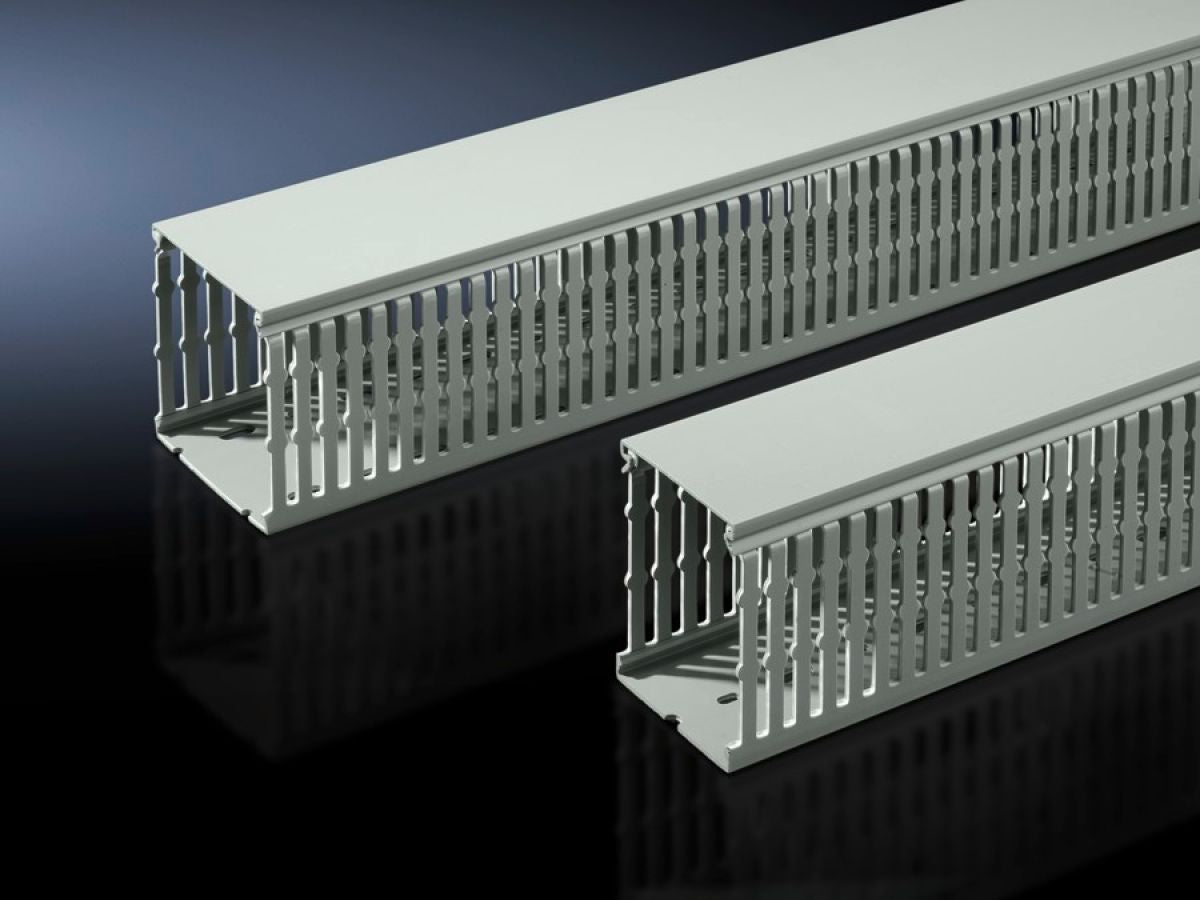

Rittal TS 8800.752, Cable duct
Rittal TS 8800.752, Cable duct
Regular price
€291,38
Regular price
Sale price
€291,38
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:TS 8800.752
With special DIN punchings for direct mounting on the enclosure section or on surfaces such as mounting plates. Nominal break points on the bars and on the cable duct base.
| Article number: | TS 8800.752 |
| Design | for mounting platesFor mounting on VX system punchings |
| Product description | With special DIN punchings for direct mounting on the enclosure section or on surfaces such as mounting plates. Nominal break points on the bars and on the cable duct base. |
| Material | Hard PVCFlame-resistant, self-extinguishingTemperature resistant to +60 °C |
| Colour | Similar to RAL 7030 |
| Supply includes | Cable duct with cover |
| Bar width | 5.5 mm |
| Slot width | 4.5 mm |
| Installation options | With special DIN punchings for direct mounting on the enclosure section or on surfaces such as mounting plates |
| Note | Can be shortened for other dimensions. |
| Dimensions | Width: 60 mmDepth: 80 mmLength: 2,000 mm |
| Packs of | 18 pc(s). |
| Net weight | 23.976 kg |
| Gross weight | 25.235 kg |
| Customs tariff number | 39259020 |
| EAN | 4028177445468 |
| ETIM 9 | EC000012 |
| ECLASS 8.0 | 27400703 |
| Product description | TS Cable duct for mounting plate, WHD: 60x2000x80 mm |
