Rittal

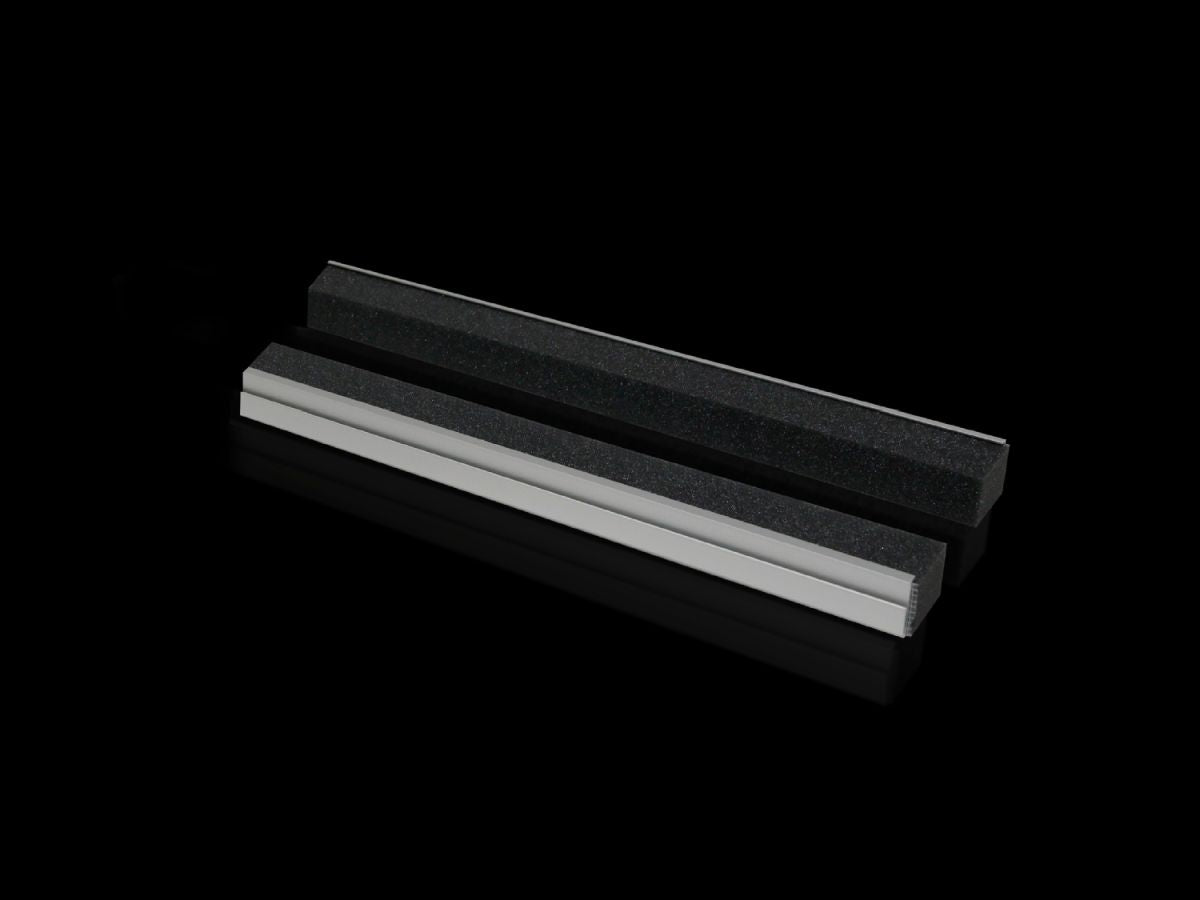

Rittal TS 8802.060, Section for cable entry, centre for TS, TP
Rittal TS 8802.060, Section for cable entry, centre for TS, TP
Regular price
€32,91
Regular price
Sale price
€32,91
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:TS 8802.060
For top-mounting on gland plates.
| Article number: | TS 8802.060 |
| Product description | For sealing the cable entry between the gland plates. |
| Benefits | Particularly well-suited to cables with identical cross-sections |
| Technical specifications | Foam rubber cable clamp strip: Cross-section: 30 x 25 mm |
| Applications | For top-mounting on gland plates. |
| Material | Extruded aluminium sectionFoam rubber cable clamp strip: PU foam |
| Supply includes | Plug-in sections, incl. foam rubber clamp strip |
| Note | 2 pc(s). are sufficient for one base opening up to an enclosure width of 800 mm |
| To fit | Enclosure type: TS: = 600 mmEnclosure type: TP |
| IP protection category to IEC 60 529 | IP 55 if installed correctly |
| Packs of | 2 pc(s). |
| Net weight | 0.208 kg |
| Gross weight | 0.212 kg |
| Customs tariff number | 76042990 |
| EAN | 4028177382480 |
| ETIM 9 | EC000211 |
| ECLASS 8.0 | 27142421 |
| Product description | TS Section for cable entry, centre, for TS, VX SE, TP, for W: 600 mm |
