Rittal

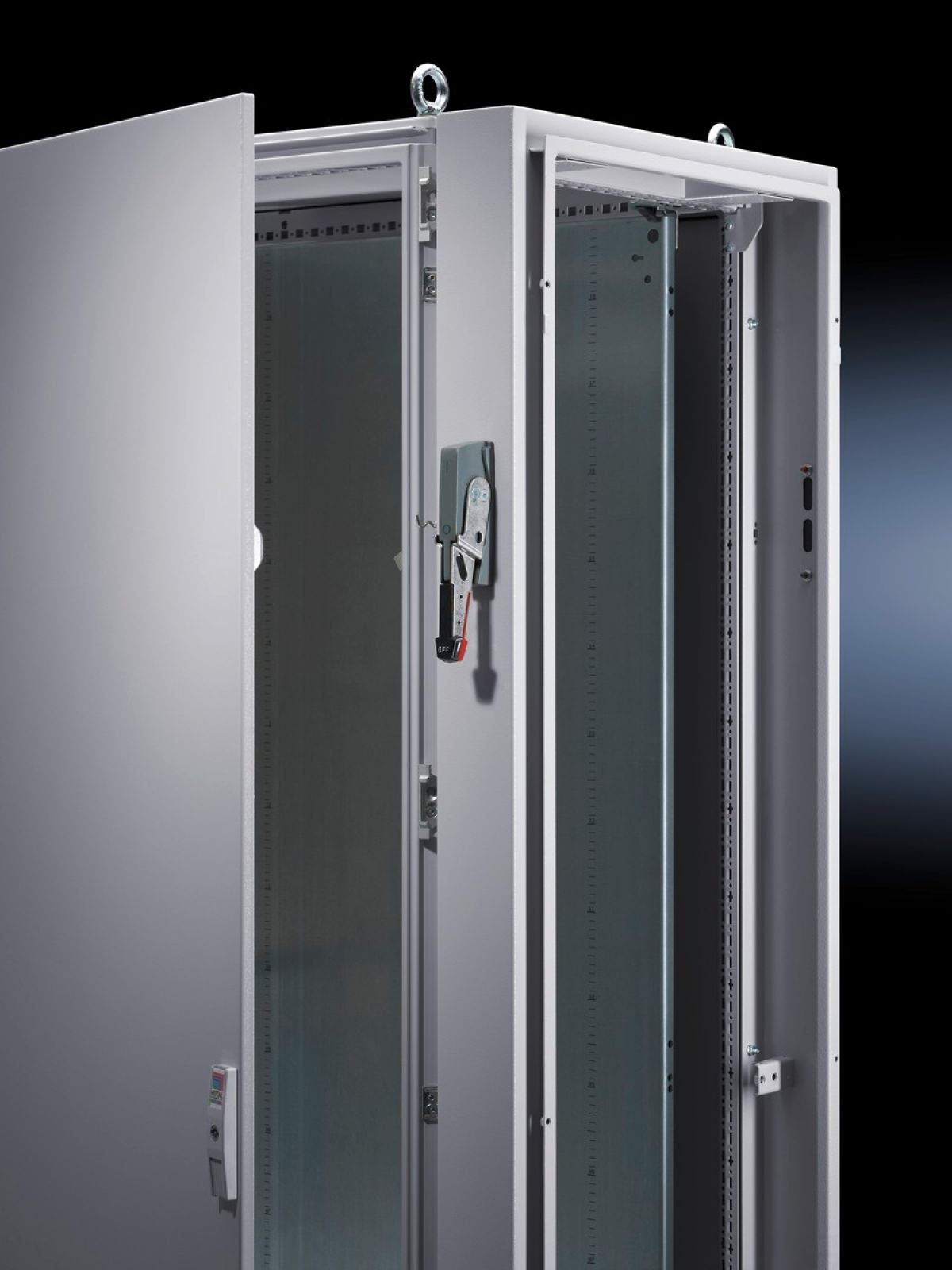

Rittal TS 8950.060, TS isolator door cover (US version)
Rittal TS 8950.060, TS isolator door cover (US version)
Regular price
€480,08
Regular price
Sale price
€480,08
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:TS 8950.060
UL-compliant safety lock for enclosure suites in accordance with US regulations. The isolator door cover, in conjunction with the operating mechanism, adjacent door lock and interconnecting rods, meets the requirements of UL 508 A.
| Article number: | TS 8950.060 |
| Product description | Including main door lock for safety locking of enclosures and bayed enclosure suites in accordance with US regulations, only in conjunction with actuator lever for master switches. |
| Benefits | In combination with operating mechanism, adjacent door latch, interconnecting rods meets the requirements of UL 508 A. |
| Applications | Allen Bradley: 1494 F-M1/P1/S1 and 140 U-K-FCX04 |
| Material | Sheet steel |
| Surface finish | Powder-coated |
| Colour | RAL 7035 |
| Supply includes | Main door lock, cover plate and assembly parts. |
| IP protection category to IEC 60 529 | IP 55 |
| Protection category NEMA | NEMA 12 |
| Note | The enclosure in front of the isolator door cover must be a single-door enclosure |
| Dimensions | Width: 119.5 mmHeight: 2,000 mmDepth: 600 mm |
| Packs of | 1 pc(s). |
| Net weight | 13.2 kg |
| Gross weight | 19.2 kg |
| Customs tariff number | 94039910 |
| EAN | 4028177693029 |
| ETIM 9 | EC000712 |
| ECLASS 8.0 | 27180101 |
| Product description | TS TS isolator door cover (US version), WHD: 119.5x2000x600 mm |
