Rittal

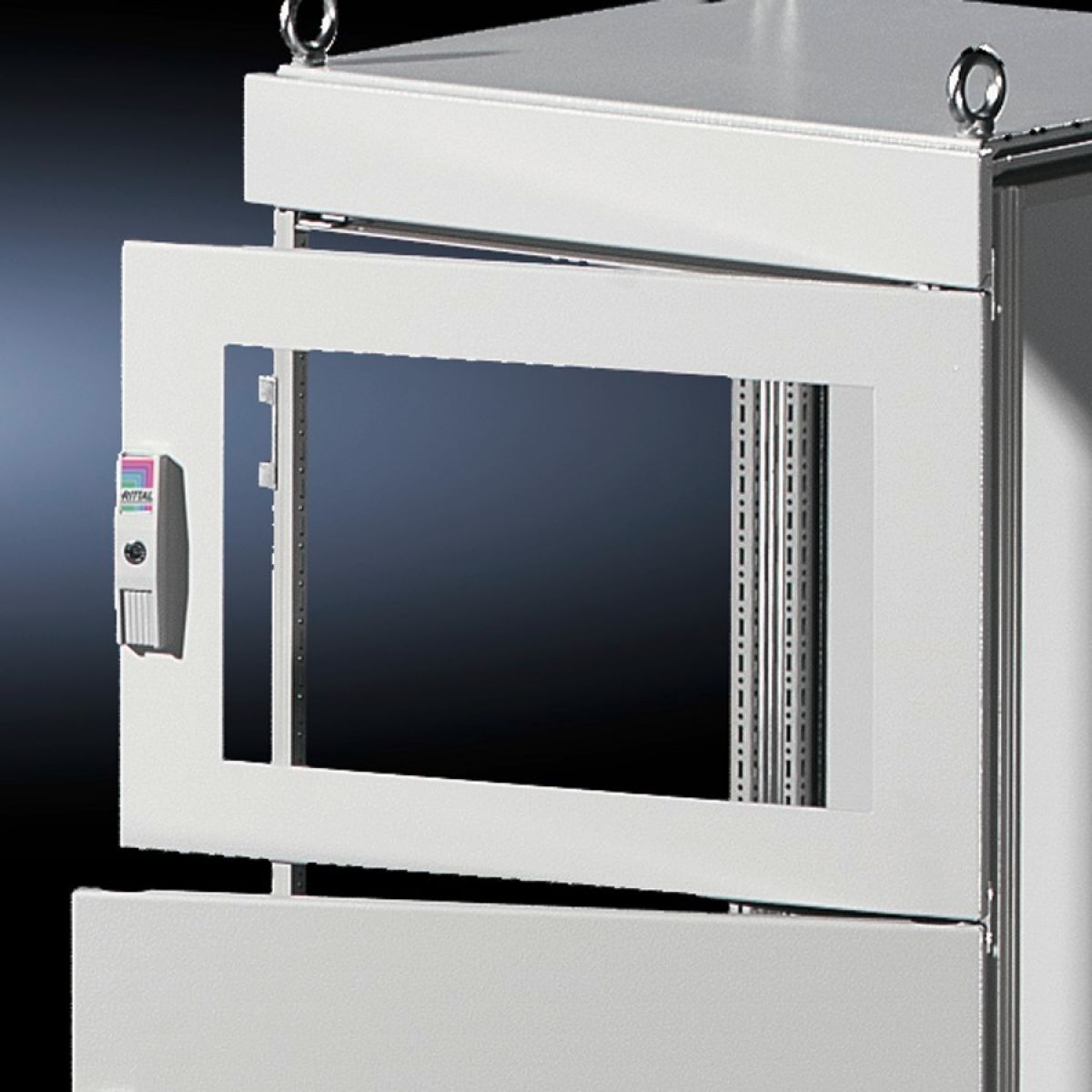

Rittal TS 9672.181, Partial doors for TS
Rittal TS 9672.181, Partial doors for TS
Regular price
€68,18
Regular price
Sale price
€68,18
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:TS 9672.181
Door may be optionally hinged on the right or left.
| Article number: | TS 9672.181 |
| Product description | Suitable for TS enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame SZ 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type F, and from 600 mm height, for comfort handle. |
| Material | Sheet steel, 2 mm |
| Surface finish | Textured paint |
| Colour | RAL 7035 |
| Supply includes | Cross memberHingesLock componentsAssembly parts |
| Dimensions | Width: 800 mmHeight: 150 mm |
| To fit | Width: = 800 mm |
| IP protection category to IEC 60 529 | IP 54 for a completed enclosure |
| Packs of | 1 pc(s). |
| Net weight | 3.378 kg |
| Gross weight | 3.578 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177697782 |
| ETIM 9 | EC002525 |
| ECLASS 8.0 | 27182204 |
| Product description | SV Partial door, WH: 800x150 mm, for TS |
