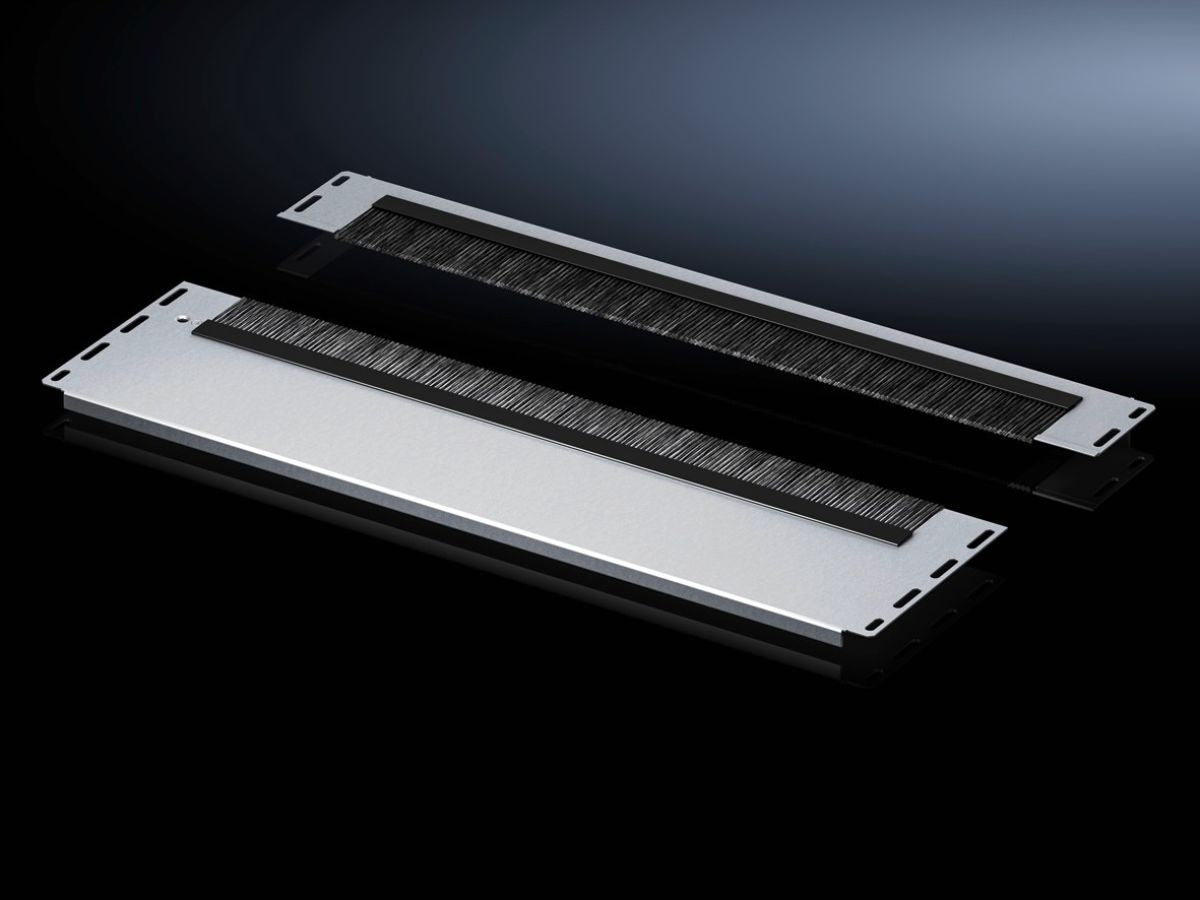

Rittal VX 5301.334, Gland plate module, multi-piece, with brush strip, super-airtight for VX IT
Rittal VX 5301.334, Gland plate module, multi-piece, with brush strip, super-airtight for VX IT
Regular price
€94,03
Regular price
Sale price
€94,03
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:VX 5301.334
For targeted cable entry from below.
| Article number: | VX 5301.334 |
| Design | two-piece, with brush strip |
| Product description | For targeted cable entry from below. With correct cable entry, special brush strips with alternating offset brushes provide a more effective seal from the environment to support climate control. The two-piece design even allows retrospective fitting of the base module with the cables already installed. |
| Material | Module plate: Sheet steelBrush strip: Plastic, UL 94 HB, halogen-free |
| Surface finish | Module plate: Zinc-plated |
| Supply includes | 2 module panel halves including brush strips, super-airtightAssembly parts |
| Assembly instruction | Several gland module plates must be combined to seal the base completely in the VX IT |
| Note | Gland plate modules with brush strip not suitable for applications with a protection category to IEC 60 529 |
| Dimensions | Depth: 237.5 mm |
| To fit | Enclosure type: VX ITWidth: = 600 mm |
| Packs of | 1 pc(s). |
| Net weight | 1.4 kg |
| Gross weight | 1.56 kg |
| PCF per pack (cradle-to-gate) | 5.9 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177950863 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189261 |
| Product description | VX IT gland plate module with brush strip, for width 600 mm, W x D 600 x 237.5 mm, two-piece, sheet steel |
