Rittal

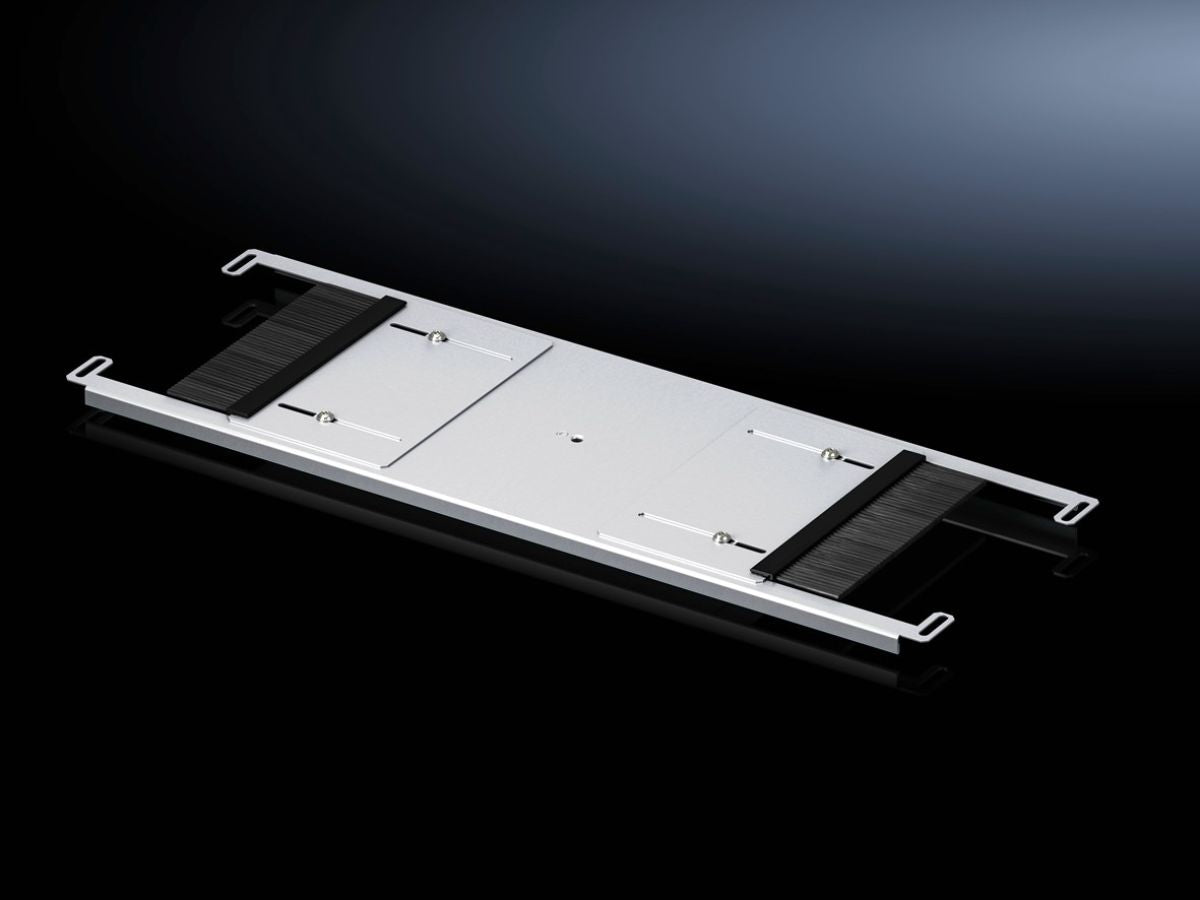

Rittal VX 5301.348, Gland plate module for side cable entry for VX IT
Rittal VX 5301.348, Gland plate module for side cable entry for VX IT
Regular price
€137,72
Regular price
Sale price
€137,72
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:VX 5301.348
With adjustable openings and brush strips on both sides. The version which is open at the side even allows retrospective fitting of the base plate module with the cables already installed.
| Article number: | VX 5301.348 |
| Design | Version for cable entry with rubber cable clamp strip at the sides: |
| Product description | With adjustable opening and brush strips on both sides. The version which is open at the side even allows the base plate module to be retro-fitted with the cables already installed. |
| Material | Module plate: Sheet steelBrush strip: Plastic, UL 94 HB, halogen-free |
| Surface finish | Module plate: Zinc-plated |
| Supply includes | Assembly parts |
| Assembly instruction | Several gland module plates must be combined to seal the base completely in the VX IT |
| Note | Gland plate modules with brush strip not suitable for applications with a protection category to IEC 60 529 |
| To fit | Enclosure type: VX ITWidth: = 800 mm |
| Packs of | 1 pc(s). |
| Net weight | 2 kg |
| Gross weight | 2.36 kg |
| PCF per pack (cradle-to-gate) | 9 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177951006 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189261 |
| Product description | Gland plate module for cable entry, for VX IT, adjustable opening and brush strips on each side, for enclosure width 800 mm, module: sheet steel, zinc-plated |
