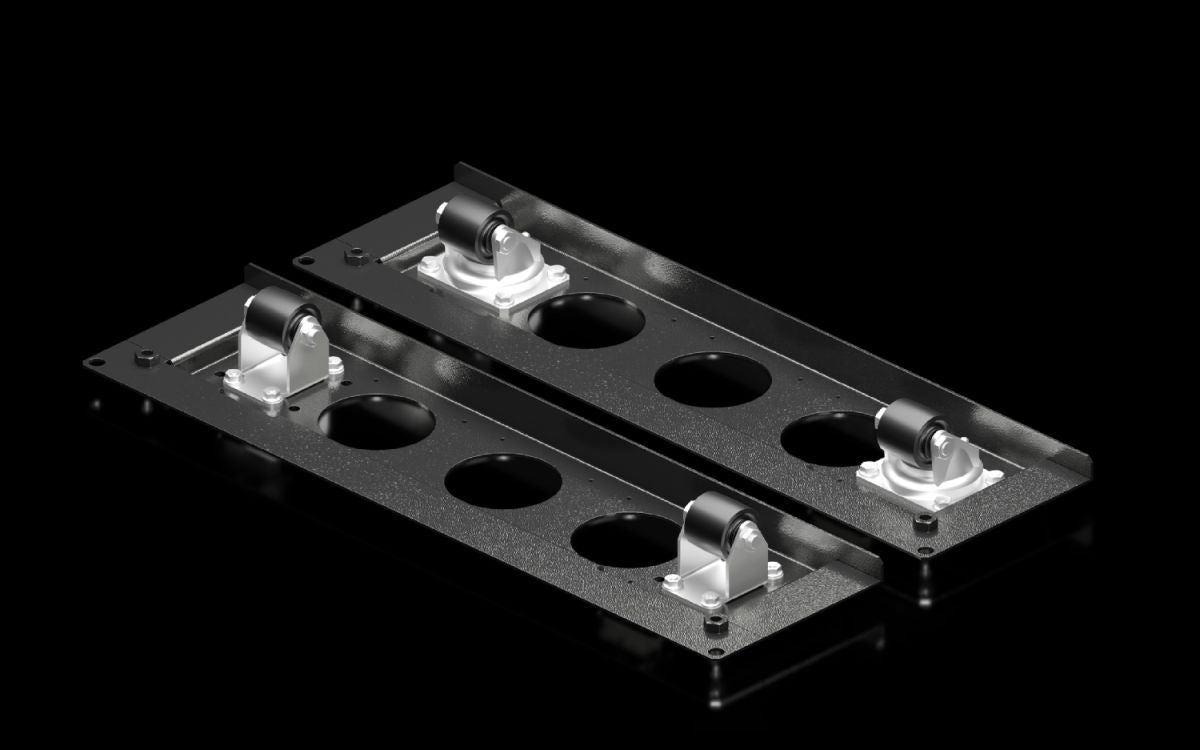

Rittal VX 5301.518, Castor module for VX, VX IT
Rittal VX 5301.518, Castor module for VX, VX IT
Regular price
€358,14
Regular price
Sale price
€358,14
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:VX 5301.518
For easy movement directly at the point of use, even with fully configured enclosures.
| Article number: | VX 5301.518 |
| Product description | For mobile use even with preconfigured enclosures. The castor module is screw-fastened to the structure directly underneath the base frame and is suitable for transporting configured enclosures on flat ground and inside buildings. |
| Supply includes | 1 transport module with 2 castors1 transport module with 2 castors, fixedAssembly parts |
| Dimensions | Width: 756 mmHeight: 203 mmDepth: 79 mm |
| Assembly instruction | The base area must be open at the mounting points |
| To fit | Enclosure type: VX: = 800 mmEnclosure type: VX IT |
| Load capacity | Max. admissible load: Static 15,000 N |
| Note | The maximum admissible load capacity (dynamic) of 10,000 N refers to rolling over flat ground. |
| Packs of | 1 pc(s). |
| Net weight | 11.5 kg |
| Gross weight | 12.12 kg |
| Customs tariff number | 94039910 |
| EAN | 4028177952515 |
| ETIM 9 | EC002621 |
| ECLASS 8.0 | 27189262 |
| Product description | Castor module for VX IT, for W: 800 mm, for easy movement directly at the point of use, for mounting directly on the enclosure. |
