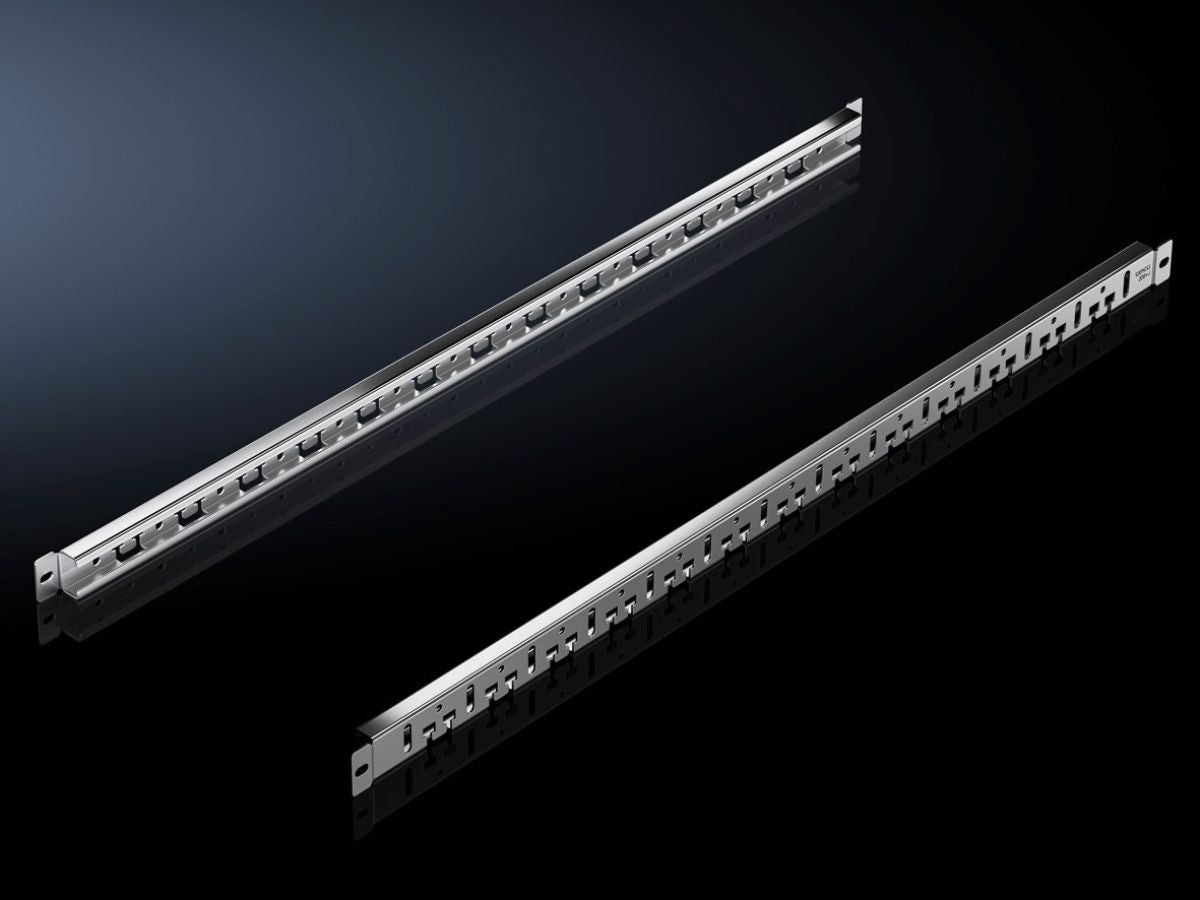

Rittal VX 5302.020, Combination rails for VX, VX IT, TX CableNet
Rittal VX 5302.020, Combination rails for VX, VX IT, TX CableNet
Regular price
€48,76
Regular price
Sale price
€48,76
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:VX 5302.020
Combination of a C rail for cable clamping with cable clamps and a cable guide rail with T-heads for cable routing. The cables can optionally be secured to the combination rail with cable clamps, cable ties or velcro fasteners to be relieved of strain.
| Article number: | VX 5302.020 |
| Product description | Combination of a C rail for cable clamping with cable clamps and a cable guide rail with T-heads for cable routing. The cables can optionally be secured to the combination rail with cable clamps, cable ties or velcro fasteners to be relieved of strain. |
| Benefits | May be installed on either the outside or inside of the enclosure frame |
| Applications | For cable routing and strain relief of routed cables on the VX frame structure |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| Installation options | Direct screw-fastening between the vertical uprights of the enclosure frame |
| To fit | Enclosure type: VXVX ITTX CableNetWidth: = 600 mmDepth: = 600 mm |
| Packs of | 4 pc(s). |
| Net weight | 1.508 kg |
| Gross weight | 1.543 kg |
| PCF per pack (cradle-to-gate) | 5.7 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177952522 |
| ETIM 9 | EC000322 |
| ECLASS 8.0 | 27400604 |
| Product description | Combination rail for VX IT, for cable routing and strain relief of routed cables on the VX frame structure, for enclosure width 600 mm, for enclosure depth 600 mm |
