Rittal

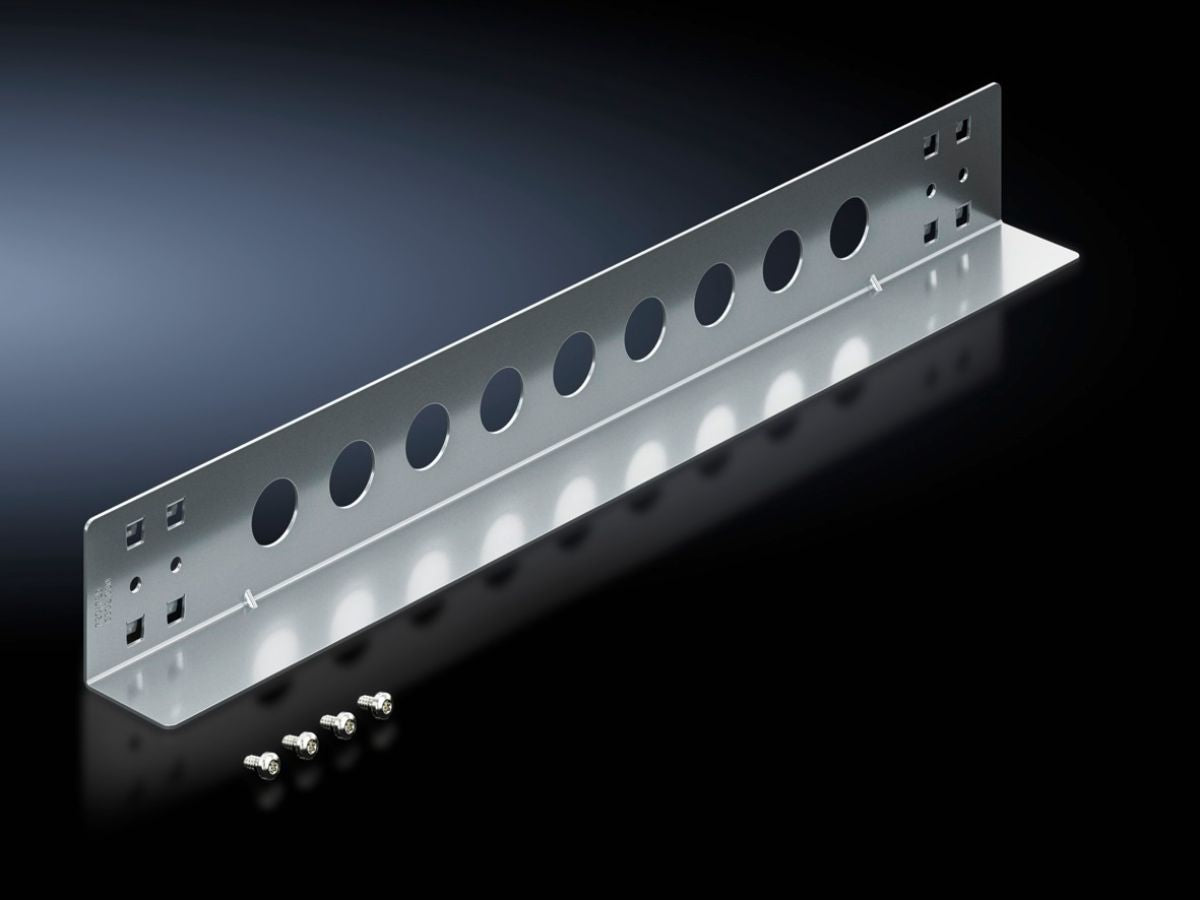

Rittal VX 5302.033, Slide rail, 2 U, static installation, heavy duty for VX IT
Rittal VX 5302.033, Slide rail, 2 U, static installation, heavy duty for VX IT
Regular price
€94,31
Regular price
Sale price
€94,31
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:VX 5302.033
For mounting between a front and rear pair of mounting angles for 482.6 mm (19") standard mounting angles and 482.6 mm (19") dynamic mounting angles in the VX IT.
| Article number: | VX 5302.033 |
| Product description | Side system punchings for mounting accessories and cooling components that expel to the side. |
| Benefits | Simply locate into the system punchings of the 482.6 mm (19") mounting brackets after adjusting the required 482.6 mm (19") distance between levels |
| Applications | For attachment between the front and rear 482.6 mm (19") mounting level |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| Load capacity | 2000 N, static |
| Note | Effective contact surface 35 mm per side |
| Installation options | for 482.6 mm (19") mounting angles, standard: 620/645 mm distance between levels |
| Packs of | 2 pc(s). |
| Net weight | 2.18 kg |
| Gross weight | 2.18 kg |
| PCF per pack (cradle-to-gate) | 8.3 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177952621 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189261 |
| Product description | Slide rail, 2 U, permanent installation, heavy duty, for VX IT, for mounting at the front mounting level, to support heavy installed equipment, effective contact surface each side 35 mm |
