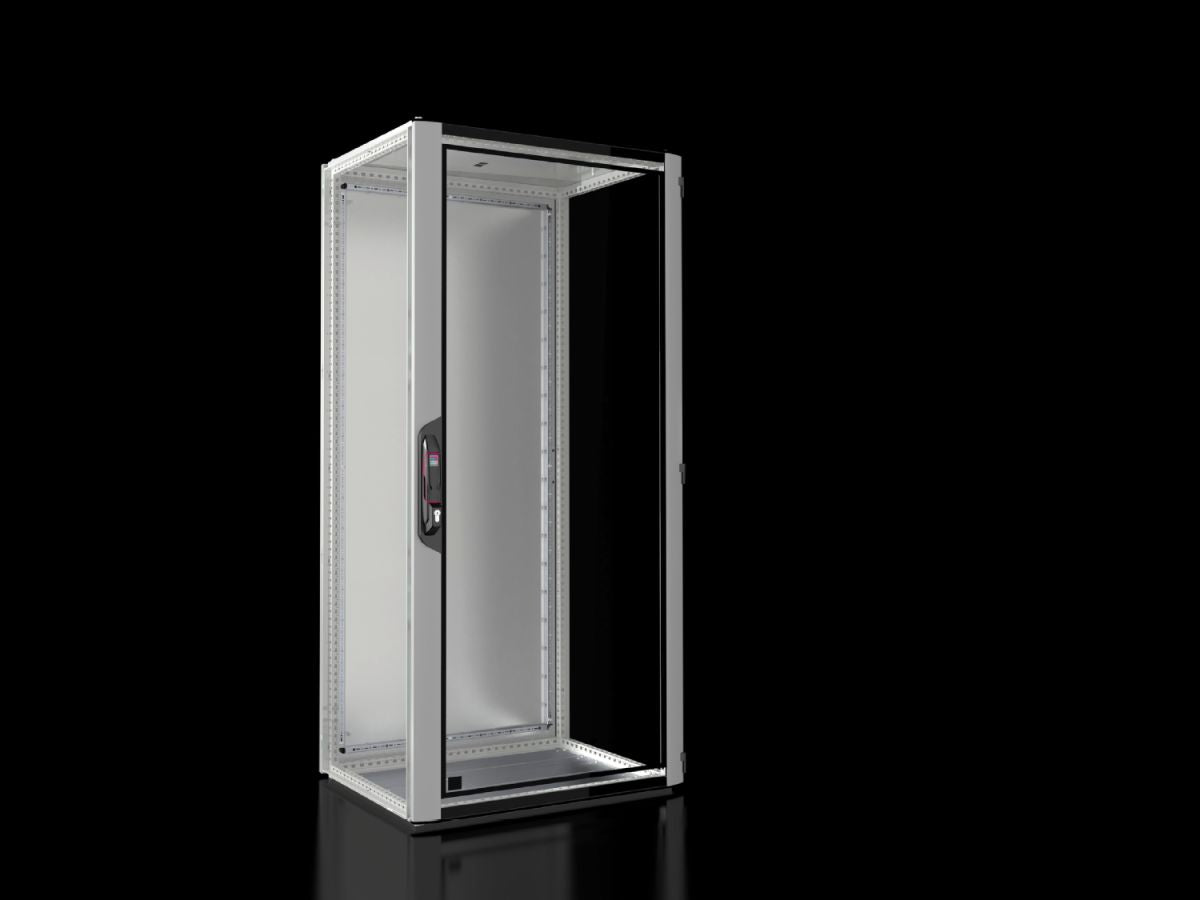

Rittal VX 5306.190, Network/server rack VX IT with glazed door, IP 55, empty enclosure
Rittal VX 5306.190, Network/server rack VX IT with glazed door, IP 55, empty enclosure
Regular price
€954,53
Regular price
Sale price
€954,53
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:VX 5306.190
VX IT, solid, for direct climate control tailored to the specific enclosure. Available without 482.6 mm (19") interior installation as an empty enclosure for individual configuration in a range of size variants, and with a protection category of up to IP 55.
| Article number: | VX 5306.190 |
| Material | Sheet steelAluminiumGlazed door: Single-pane safety glass, 3 mm |
| Surface finish | Enclosure frame: Dipcoat-primedRear door and roof: Dipcoat-primed, powder-coatedFront door: Aluminium, anodised/spray-finished |
| General colour | RAL 7035 |
| Colour | Enclosure frame, rear door and roof: RAL 7035Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005Handle and hinges: RAL 9005 |
| Supply includes | VX enclosure frame with doors and roof plateGlazed aluminium door at the front, 180° hingesSheet steel rear door, solid, one-piece, 130° hingesLock front and rear: Comfort handle for profile half-cylinders and security lock 3524 ERoof plate, one-piece, solidBase tray with gland plate, multi-piece, solidBaying seal and sealing kit for gland plates (supplied loose)12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose)25 multi-tooth screws, conductive (supplied loose)IPPC pallet |
| Dimensions | Width: 800 mmHeight: 2,000 mmDepth: 600 mm |
| Units | 42 U |
| Units | 42 U |
| Roof design | one-piece, solid |
| Rear door design | Sheet steel door, solid, one-piece, 130° hinges |
| Front door design | Glazed aluminium door, solid, one-piece, 180° hinges |
| Mounting angle design | without |
| Base design | Base tray with gland plate, multi-piece, solid |
| Mounting angles position | without |
| Protection category to IEC 60 529 | IP 55 only in conjunction with baying seal or screw-fastened side panels |
| IK Code | IK08 |
| Note | Depending on how and where it is sited, the door opening angle may vary for selected applications |
| Basic material | Sheet steel |
| Packs of | 1 pc(s). |
| Net weight | 80.64 kg |
| Gross weight | 90.8 kg |
| PCF per pack (cradle-to-gate) | 223.7 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| EAN | 4028177944930 |
| ETIM 9 | EC002499 |
| ECLASS 8.0 | 27180207 |
| Product description | VX IT, without 482.6 mm (19") interior installation, glazed door, WHD: 800 x 2000 x 600 mm, 42 U, IP 55 |
