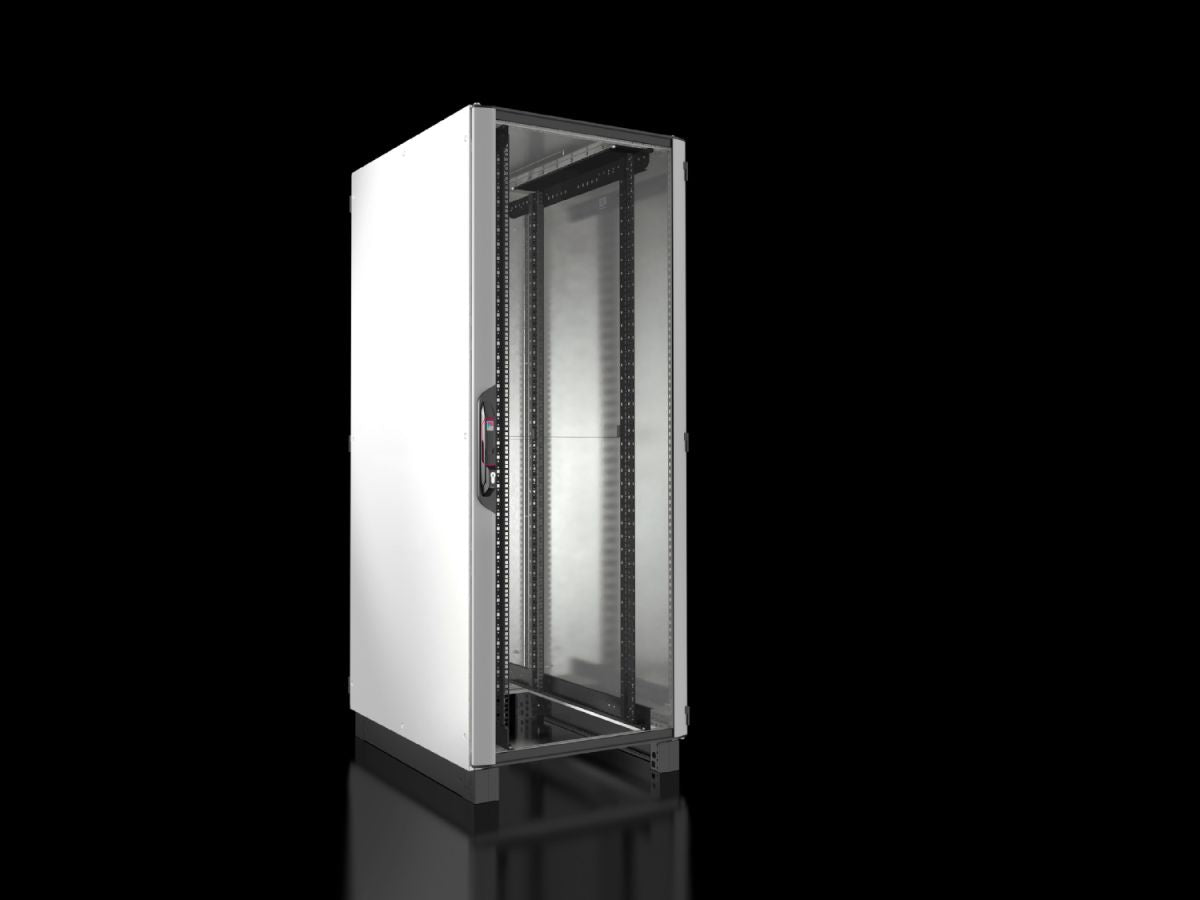

Rittal VX 5309.156, Network/server rack VX IT with glazed door, pre-configured, with 482.6 mm (19") mounting angles, standard

Rittal VX 5309.156, Network/server rack VX IT with glazed door, pre-configured, with 482.6 mm (19") mounting angles, standard

€1.894,33
€1.894,33
Sale Sold out
Taxes included.

📦 Ready for dispatch: 08.12.2025

SKU: VX 5309.156

VX IT network/server enclosure, closed, for direct climate control tailored to the specific enclosure. Supplied pre-assembled with a selection of practical equipment. 482.6 mm (19") interior installation with 482.6 mm (19") mounting angles in the standard version, available in a range of size variants.

Article number: VX 5309.156
Material Sheet steelAluminiumPlasticGlazed door: Single-pane safety glass, 3 mm
Surface finish Enclosure frame: Dipcoat-primedInterior installation: Spray-finishedRear door and roof: Dipcoat-primed, powder-coatedFront door: Aluminium, anodised/spray-finished
General colour RAL 7035
Colour Enclosure frame, rear door and roof: RAL 7035Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005Interior installation, base/plinth: RAL 9005Handle and hinges: RAL 9005
Supply includes VX enclosure frame with doors and roof plateGlazed aluminium door at the front, 180° hingesLock front and rear: Comfort handle for profile half-cylinders and security lock 3524 EMounting angles, 482.6 mm (19")Side panels, one-piece, for screw fasteningRoof plate, multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plateBase module mounted at front as infill panelBase/plinth system VX, 100 mm, ventedBase/plinth corner pieces and trim panels, sides, screw-fastenedBase/plinth trim panels, front and rear plus corner and baying covers supplied loose4 levelling feet, M12, including base/plinth adaptor (supplied loose)Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out.12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose)25 multi-tooth screws, conductive (supplied loose)4 combination rails for inner and outer mounting level, to fit rack depth (supplied loose)10 cable shunting rings, metal, 125 x 65 mm (supplied loose)IPPC palletBase module mounted at front as infill panel, depth 75 mmSheet steel rear door, solid, vertically divided, 180° hinges
Dimensions Width: 800 mmHeight: 2,000 mmDepth: 1,000 mm
Units 42 U
Units 42 U
Height including base/plinth 2,100 mm
Free mounting space to the 482.6 mm (19") level, front/rear 87 mm / 193 mm
Mounting position of the 482.6 mm (19") level front and rear
Distance between levels as delivered 720 mm
482.6 mm (19") attachment on depth stays, screw-fastened at the top and bottom
Design Pre-configured
Roof design multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate
Rear door design Sheet steel door, solid, vertically divided, 180° hinges
Front door design Glazed aluminium door, solid, one-piece, 180° hinges
Mounting angle design 482.6 mm (19") mounting angles, standard in the VX IT
Base design Base module mounted at front as infill panel
482.6 mm (19") level(s) version front and rear
Mounting angles position 482.6 mm (19") level, front and rear
Load capacity 15,000 N
Max. load capacity (static) per enclosure to UL 2416 12,000 N
IK Code IK08
Note Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material Sheet steel
Packs of 1 pc(s).
Net weight 161.5 kg
Gross weight 176.5 kg
PCF per pack (cradle-to-gate) 436.1 kg CO2 eq (Cat B)
Note on PCF category Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN 4028177945111
ETIM 9 EC002499
ECLASS 8.0 27180207
Product description VX IT, 19" mounting angles, standard, front and rear, glazed door, WHD: 800 x 2100 x 1000 mm, 42 U, pre-configured
