Rittal

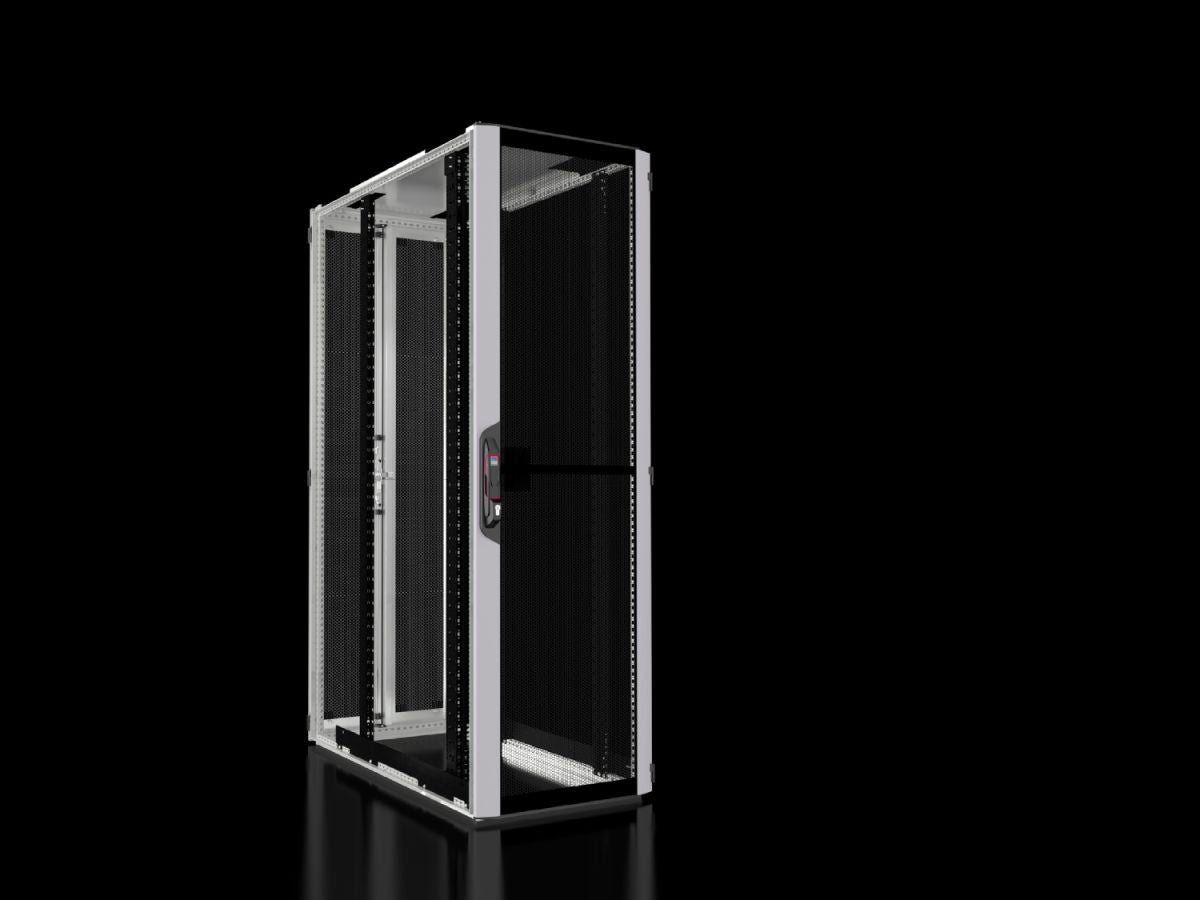

Rittal VX 5315.118, Network/server rack VX IT with vented doors, with 482.6 mm (19") mounting angles, standard
Rittal VX 5315.118, Network/server rack VX IT with vented doors, with 482.6 mm (19") mounting angles, standard
Regular price
€1.776,52
Regular price
Sale price
€1.776,52
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 06.01.2026
Couldn't load pickup availability
SKU: SKU:VX 5315.118
VX IT network/server enclosure, vented, for room climate control. 482.6 mm (19") interior installation with depth-variable 482.6 mm (19") mounting angles in the standard version, available in a range of size variants.
| Article number: | VX 5315.118 |
| Design | VentedStandardwith 482.6 mm (19") mounting angles |
| Material | Sheet steelAluminium |
| Surface finish | Enclosure frame: Dipcoat-primedInterior installation: Spray-finishedRear door and roof: Dipcoat-primed, powder-coatedFront door: Aluminium, anodised/spray-finished |
| General colour | RAL 7035 |
| Colour | Enclosure frame, rear door and roof: RAL 7035Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005Interior installation, vent grille at the front: RAL 9005Handle and hinges: RAL 9005 |
| Supply includes | VX enclosure frame with doors and roof plateAluminium/sheet steel door at the front, vented (vented surface area approx. 85% perforated), 180° hingesSheet steel rear door, vented (vented surface area approx. 85% perforated)Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 EMounting angles, 482.6 mm (19")Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out.12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose)25 multi-tooth screws, conductive (supplied loose)IPPC palletRoof plate, multi-piece, with cable entry in the corner sections front and rearSheet steel rear door, vented, vertically divided, 180° hinges |
| Dimensions | Width: 600 mmHeight: 2,200 mmDepth: 1,200 mm |
| Units | 47 U |
| Free mounting space to the 482.6 mm (19") level, front/rear | 150 mm / 330 mm |
| Mounting position of the 482.6 mm (19") level | front and rear |
| Distance between levels as delivered | 720 mm |
| 482.6 mm (19") attachment | with mounting bracket screw-fastened to the frame at the top and bottom |
| Design | Standard |
| Roof design | multi-piece, with cable entry in the corner sections front and rear |
| Rear door design | Sheet steel door, vented, vertically divided, 180° hinges |
| Front door design | Aluminium/sheet steel door, vented, one-piece, 180° hinges |
| Mounting angle design | 482.6 mm (19") mounting angles, standard in the VX IT |
| Base design | Open |
| 482.6 mm (19") level(s) version | front and rear |
| Mounting angles position | 482.6 mm (19") level, front and rear |
| Load capacity | 15,000 N |
| Max. load capacity (static) per enclosure to UL 2416 | 12,000 N |
| Note | Depending on how and where it is sited, the door opening angle may vary for selected applications |
| Basic material | Sheet steel |
| Packs of | 1 pc(s). |
| Net weight | 84 kg |
| Gross weight | 92.8 kg |
| PCF per pack (cradle-to-gate) | 209.7 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 94032080 |
| EAN | 4028177945364 |
| ETIM 9 | EC002499 |
| ETIM 8 | EC002499 |
| ECLASS 8.0 | 27180207 |
| Product description | VX IT, 19" mounting angles, standard, front and rear, vented, WHD: 600 x 2200 x 1200 mm, 47 U |
