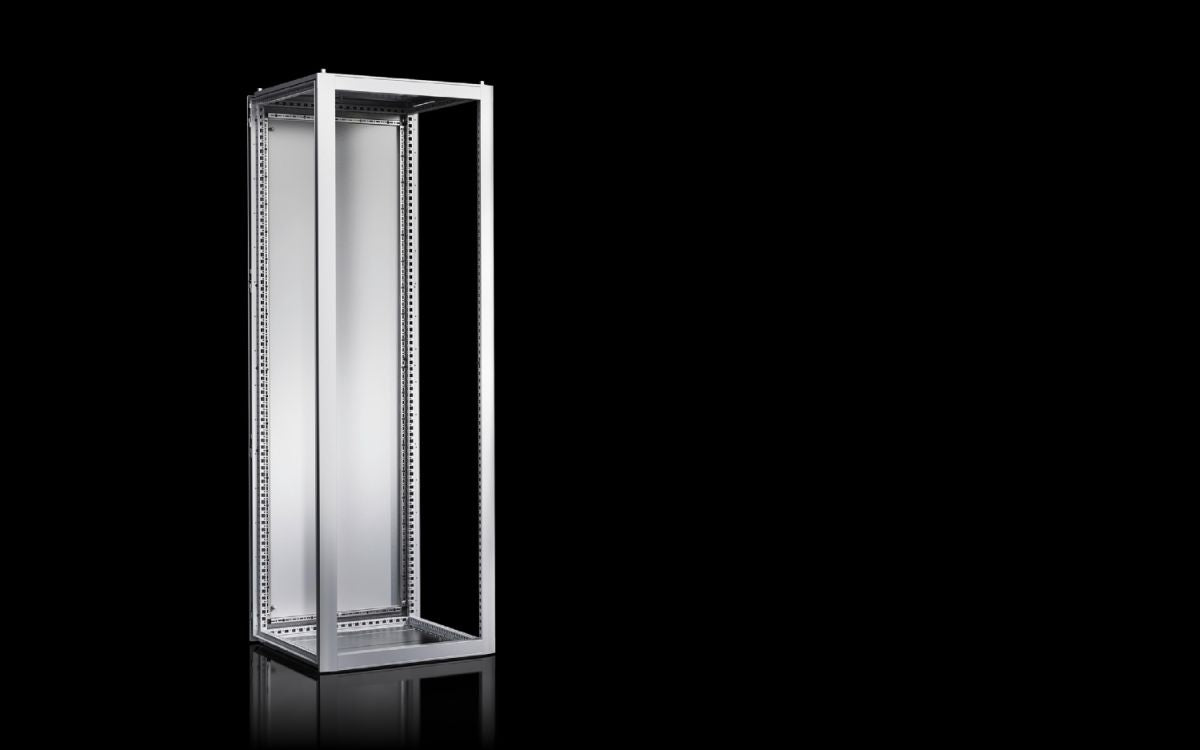

Rittal VX 8430.000, Bayed enclosure system VX25 Electronic enclosure
Rittal VX 8430.000, Bayed enclosure system VX25 Electronic enclosure
Regular price
€764,43
Regular price
Sale price
€764,43
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:VX 8430.000
Ideal for 482.6 mm (19") assemblies and 482.6 mm (19") slide-in equipment: With 482.6 mm (19") adaptor sections at the front, front frame, rear door, roof plate and divided gland plates.
| Article number: | VX 8430.000 |
| Material | Enclosure frame: Sheet steel, 1.5 mmRoof: Sheet steel, 1.5 mmFront frame: Extruded aluminium sections with die-cast corner piecesRear door: Sheet steel, 2.0 mmGland plates: Sheet steel, 1.5 mmAdaptor sections, 482.6 mm (19"): Sheet steel, 2 mm |
| Surface finish | Enclosure frame: Dipcoat-primedRoof and rear door: Dipcoat primed, powder-coated on the outside, textured paintFront frame: Powder-coatedGland plates: Zinc-plated |
| Colour | RAL 7035 |
| Supply includes | Enclosure frameFront frame (r/h hinge, held on the left via magnetic snap fasteners)Rear door (r/h hinge, may be swapped to opposite side)Roof plateGland platesAdaptor sections, 482.6 mm (19"), front |
| Dimensions | Width: 600 mmHeight: 2,000 mmDepth: 600 mm |
| Installation height for components | 42 U |
| Packs of | 1 pc(s). |
| Net weight | 64.4 kg |
| Gross weight | 67.8 kg |
| PCF per pack (cradle-to-gate) | 167 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| EAN | 4028177920255 |
| ETIM 9 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | VX Electronic enclosure, WHD: 600x2000x600 mm, sheet steel, with hinged front frame, with adaptor sections 19", single door at the rear |
