Rittal

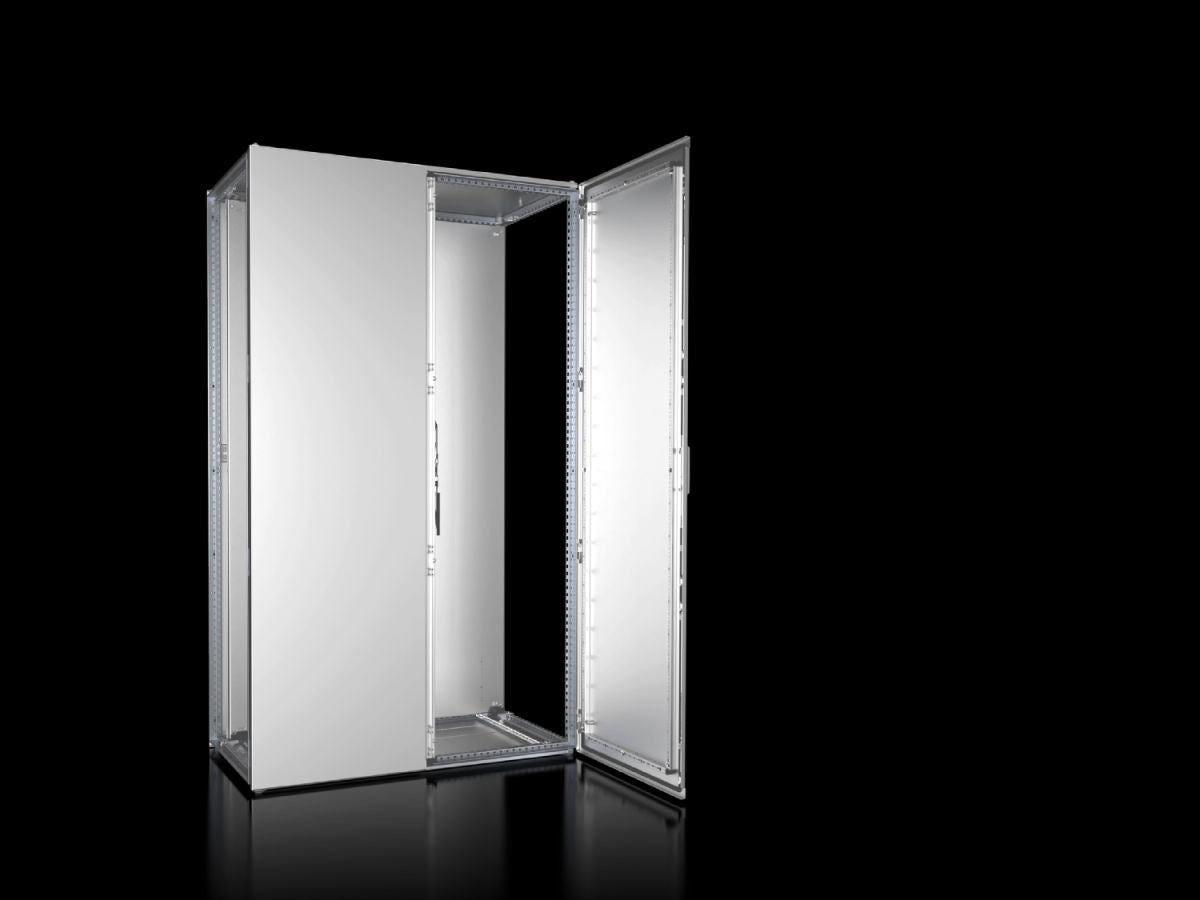

Rittal VX 8451.000, Baying enclosure system VX25, stainless steel Basic enclosure

Rittal VX 8451.000, Baying enclosure system VX25, stainless steel Basic enclosure

€4.281,32
€4.281,32
Sale Sold out
Taxes included.

📦 Ready for dispatch: 07.12.2025

SKU: VX 8451.000

The standard in enclosure manufacturing in high-grade stainless steel 1.4301 (AISI 304): Enclosure frame with two front doors, rear panel, mounting plate, roof plate, divided gland plates. Perfectly suited to efficient enclosure interior installation.

Article number: VX 8451.000
Material Enclosure frame: Stainless steel 1.4301 (AISI 304), 1.5 mmRoof: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushedDoor: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushedRear panel: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushedGland plates: Stainless steel 1.4301 (AISI 304), 1.5 mmMounting plate: Sheet steel, 3.0 mm
Surface finish Enclosure frame and gland plates: UncoatedDoor, roof and rear panel: Exterior brushed, grain size 400Mounting plate: Zinc-plated
Supply includes Enclosure frameDoor(s)Door hinged on the right, may be swapped to the leftRoof plateGland platesRear panelMounting plateLock: 3 mm double-bit2 punched rails 18 x 39 mm
Dimensions Width: 1,200 mmHeight: 2,000 mmDepth: 600 mm
Dimensions mounting plate (W x H) 1,099 mm x 1,896 mm
Protection category to IEC 60 529 IP 55
Protection category NEMA NEMA 1
Type rating to UL 50E Type 1
IK Code IK10
Number of doors 2
Note Due to the hardness of the material, we recommend using metal multi-tooth screws 2486.400 for the interior installation.
Basic material Stainless steel 1.4301 (AISI 304)
Packs of 1 pc(s).
Net weight 175.25 kg
Gross weight 191 kg
EAN 4028177920200
ETIM 9 EC000261
ECLASS 8.0 27180101
Product description VX Baying enclosure system, WHD: 1200x2000x600 mm, stainless steel, 1.4301, with mounting plate, two doors at the front
