Rittal VX 8457.000, Baying enclosure system VX25, stainless steel Basic enclosure
Rittal VX 8457.000, Baying enclosure system VX25, stainless steel Basic enclosure
Regular price
€2.324,07
Regular price
Sale price
€2.324,07
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:VX 8457.000

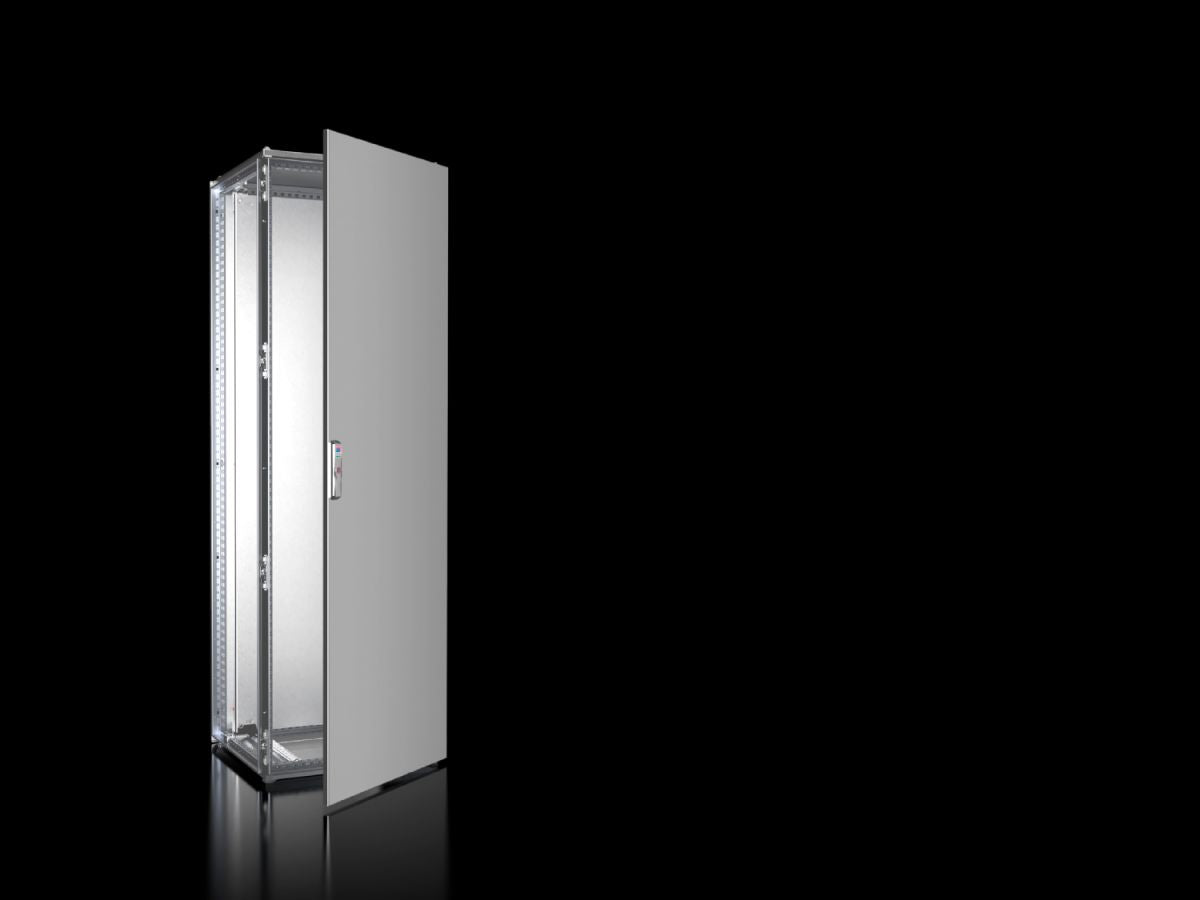

The standard in enclosure manufacturing in high-grade stainless steel 1.4301 (AISI 304): Enclosure frame with one front door, rear panel, mounting plate, roof plate, divided gland plates. Perfectly suited to efficient enclosure interior installation.
| Article number: | VX 8457.000 |
| Material | Enclosure frame: Stainless steel 1.4301 (AISI 304), 1.5 mmRoof: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushedDoor: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushedRear panel: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushedGland plates: Stainless steel 1.4301 (AISI 304), 1.5 mmMounting plate: Sheet steel, 3.0 mm |
| Surface finish | Enclosure frame and gland plates: UncoatedDoor, roof and rear panel: Exterior brushed, grain size 400Mounting plate: Zinc-plated |
| Supply includes | Enclosure frameDoor(s)Door hinged on the right, may be swapped to the leftRoof plateGland platesRear panelMounting plateLock: 3 mm double-bit2 punched rails 18 x 39 mm |
| Dimensions | Width: 600 mmHeight: 1,800 mmDepth: 500 mm |
| Dimensions mounting plate (W x H) | 499 mm x 1,696 mm |
| Protection category to IEC 60 529 | IP 55 |
| Protection category NEMA | NEMA 1 |
| Type rating to UL 50E | Type 1 |
| IK Code | IK10 |
| Number of doors | 1 |
| Note | Due to the hardness of the material, we recommend using metal multi-tooth screws 2486.400 for the interior installation. |
| Basic material | Stainless steel 1.4301 (AISI 304) |
| Packs of | 1 pc(s). |
| Net weight | 89.2 kg |
| Gross weight | 91.75 kg |
| EAN | 4028177920187 |
| ETIM 9 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | VX Baying enclosure system, WHD: 600x1800x500 mm, stainless steel, 1.4301, with mounting plate, single door at the front |
