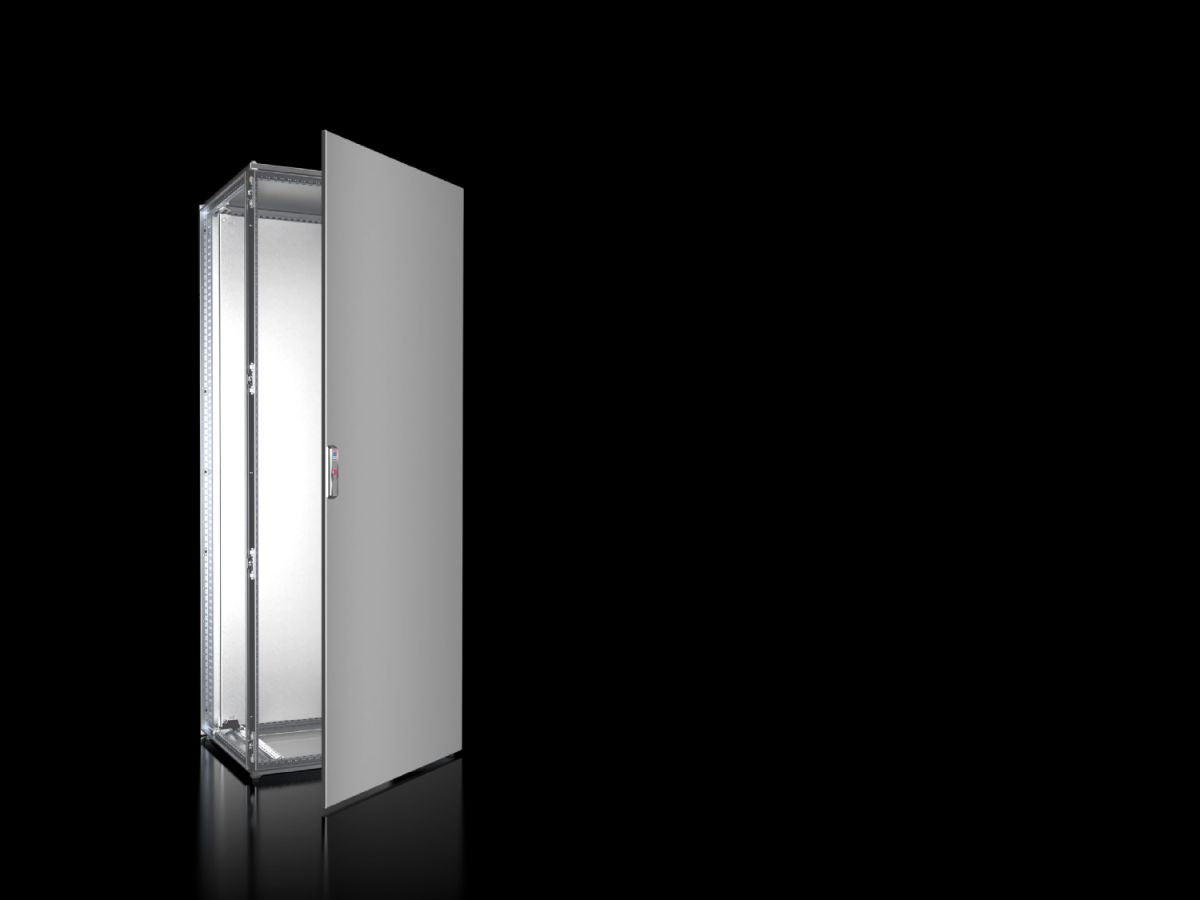

Rittal VX 8458.000, Baying enclosure system VX25, stainless steel IP 66/NEMA 4X
Rittal VX 8458.000, Baying enclosure system VX25, stainless steel IP 66/NEMA 4X
Regular price
€4.432,60
Regular price
Sale price
€4.432,60
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 05.01.2026
Couldn't load pickup availability
SKU: SKU:VX 8458.000
Maximum protection category and global use – tested to European and American standards in high-grade stainless steel 1.4301 (AISI 304): Enclosure frame with front door, rear panel, mounting plate, roof plate, base
| Article number: | VX 8458.000 |
| Material | Enclosure frame: Stainless steel 1.4301 (AISI 304), 1.5 mmRoof: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushedDoor: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushedRear panel: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushedGland plate: Stainless steel 1.4301 (AISI 304), 1.5 mmMounting plate: Sheet steel, 3.0 mm |
| Surface finish | Enclosure frame and gland plates: UncoatedDoor, roof and rear panel: Exterior brushed, grain size 400Mounting plate: Zinc-plated |
| Supply includes | Enclosure frameDoorDoor hinged on the right, may be swapped to the leftRoofGland plateRear panelMounting plateLock: 3 mm double-bit2 punched rails 18 x 39 mmBaying seal |
| Dimensions | Width: 800 mmHeight: 2,000 mmDepth: 600 mm |
| Dimensions mounting plate (W x H) | 699 mm x 1,896 mm |
| Protection category to IEC 60 529 | IP 66 |
| Protection category NEMA | NEMA 1 |
| Type rating to UL 50E | Type 1 |
| IK Code | IK10 |
| Number of doors | 1 |
| Note | Due to the hardness of the material, we recommend using metal multi-tooth screws 2486.400 for the interior installation. |
| Basic material | Stainless steel 1.4301 (AISI 304) |
| Packs of | 1 pc(s). |
| Net weight | 129.6 kg |
| Gross weight | 143.6 kg |
| EAN | 4028177924482 |
| ETIM 9 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | VX Baying enclosure system IP66 / NEMA4x, WHD: 800x2000x600 mm, stainless steel, 1.4301, with mounting plate, sheet steel, zinc-plaed, single door at the front |
