Rittal

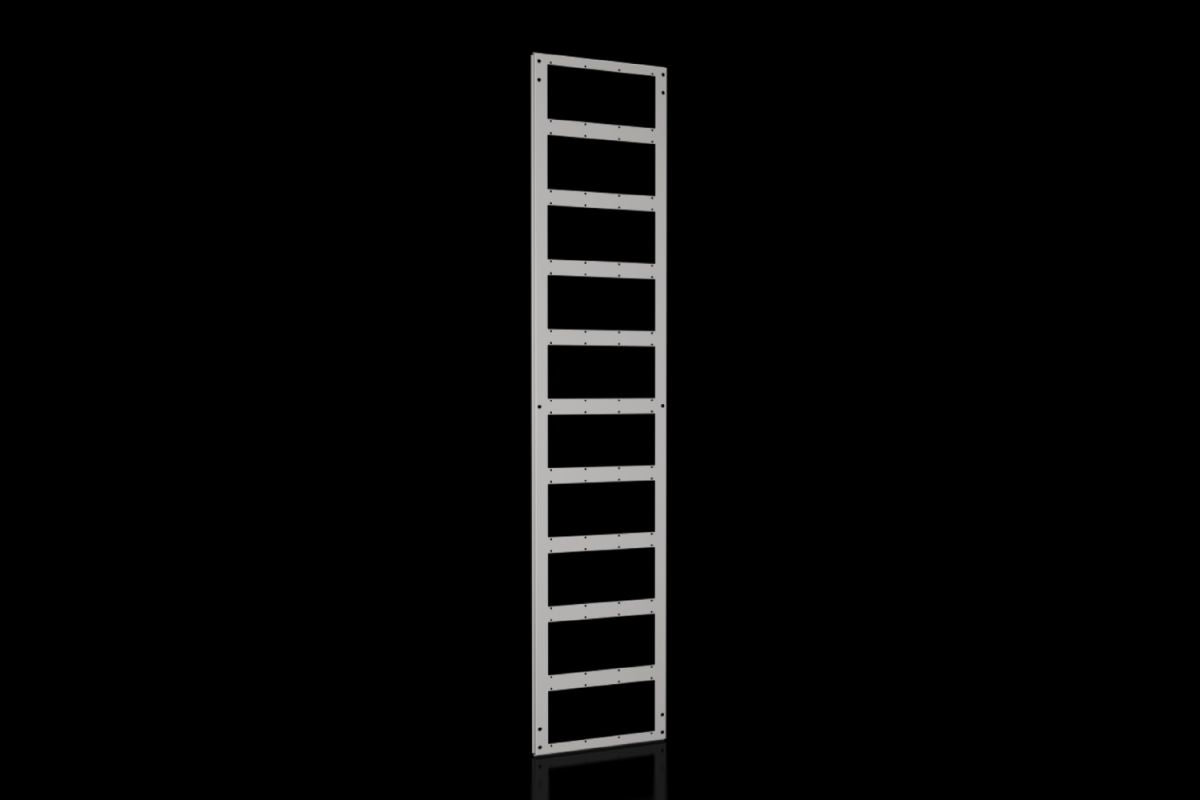

Rittal VX 8609.212, Divider panels for module plates, for VX
Rittal VX 8609.212, Divider panels for module plates, for VX
Regular price
€121,45
Regular price
Sale price
€121,45
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:VX 8609.212
With cut-outs for the installation of module plates for connectors or for cable entry, and also for the entry of busbar systems and other installed equipment. All-round, double fold for stability and to hold the seal. The symmetry of the enclosure frame means that divider panels may also be fitted at the rear, dimensions permitting.
| Article number: | VX 8609.212 |
| Product description | With cut-outs for the installation of module plates for connectors or for cable entry, and also for the entry of busbar systems and other installed equipment. All-round, double fold for stability and to hold the seal. Thanks to the symmetry of the enclosure frame, divider panels may also be fitted at the rear, dimensions permitting. |
| Material | Sheet steel, 2.0 mm |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| To fit | Enclosure type: VXHeight: = 2,000 mmDepth: = 500 mm |
| Number of cut-outs | 10 |
| Assembly instruction | For baying in combination with a divider panel, an internal baying bracket 8617500 or external baying bracket 8617502 is required |
| Packs of | 1 pc(s). |
| Net weight | 7.224 kg |
| Gross weight | 7.604 kg |
| Customs tariff number | 94039910 |
| EAN | 4028177817845 |
| ETIM 9 | EC002525 |
| ECLASS 8.0 | 27182102 |
| Product description | VX Divider panel for module plates, for HD: 2000x500 mm |
