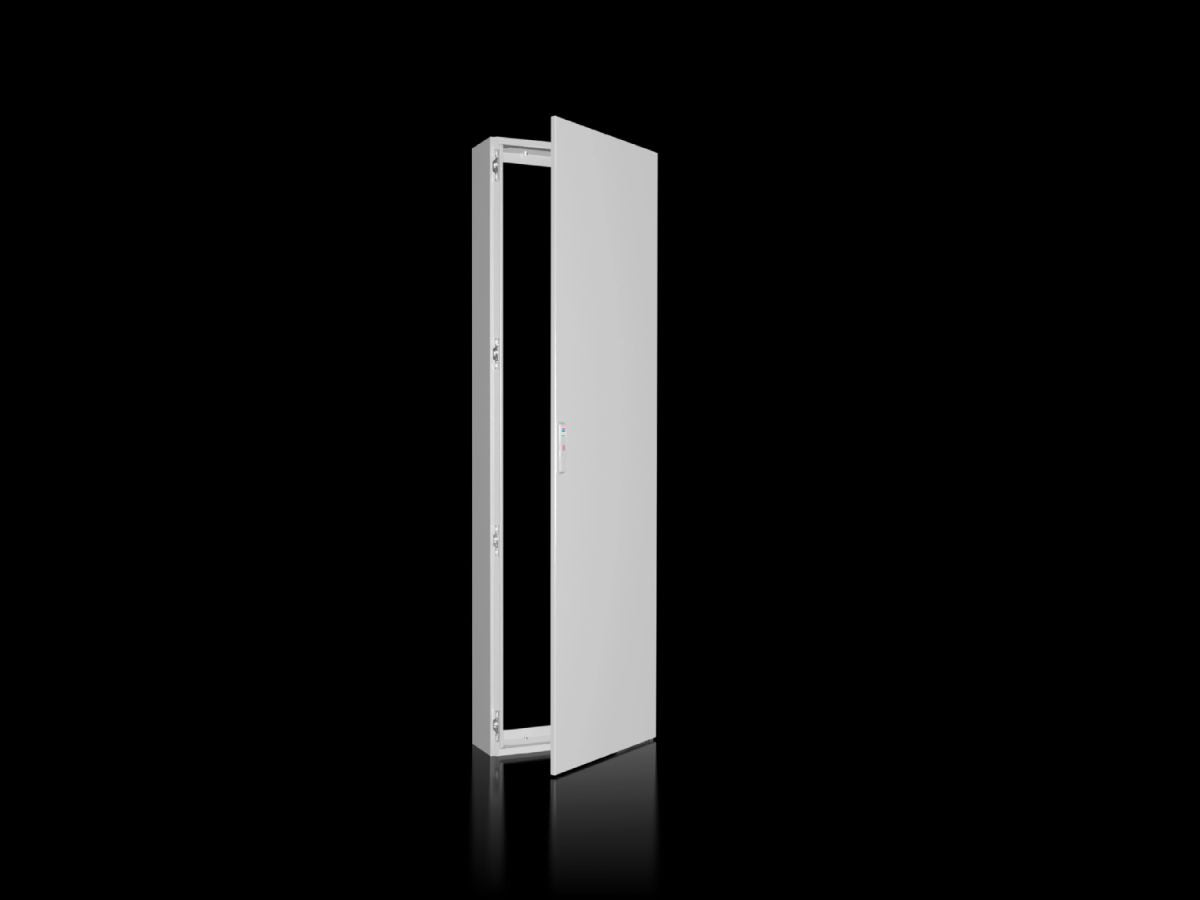

Rittal VX 8609.220, Cover with door for VX
Rittal VX 8609.220, Cover with door for VX
Regular price
€566,96
Regular price
Sale price
€566,96
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:VX 8609.220
Cover with door to protect and finish off connectors or other installed equipment
| Article number: | VX 8609.220 |
| Benefits | To protect and finish off connectors or other installed equipment. |
| Material | Cover: Sheet steel, 1.5 mmDoor: Sheet steel, 2.0 mm |
| Surface finish | Dipcoat-primed, powder-coated on the outside |
| Colour | RAL 7035 |
| Supply includes | CoverDoor with locking rod and double-bit lock insert2 trim panels for top and bottom |
| Dimensions | Width: 202.7 mmHeight: 1,998 mmDepth: 499 mm |
| To fit | Enclosure type: VXHeight: = 2,000 mmDepth: = 500 mm |
| IP protection category to IEC 60 529 | IP 55 in conjunction with enclosures from the VX series |
| Protection category NEMA | NEMA 12 (in conjunction with enclosures from the VX, VX IT series) |
| Packs of | 1 pc(s). |
| Net weight | 44 kg |
| Gross weight | 45 kg |
| PCF per pack (cradle-to-gate) | 114.1 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 94039910 |
| EAN | 4028177921672 |
| ETIM 9 | EC000744 |
| ECLASS 8.0 | 27182405 |
| Product description | VX Cover with door, for HD: 2000x500 mm |
