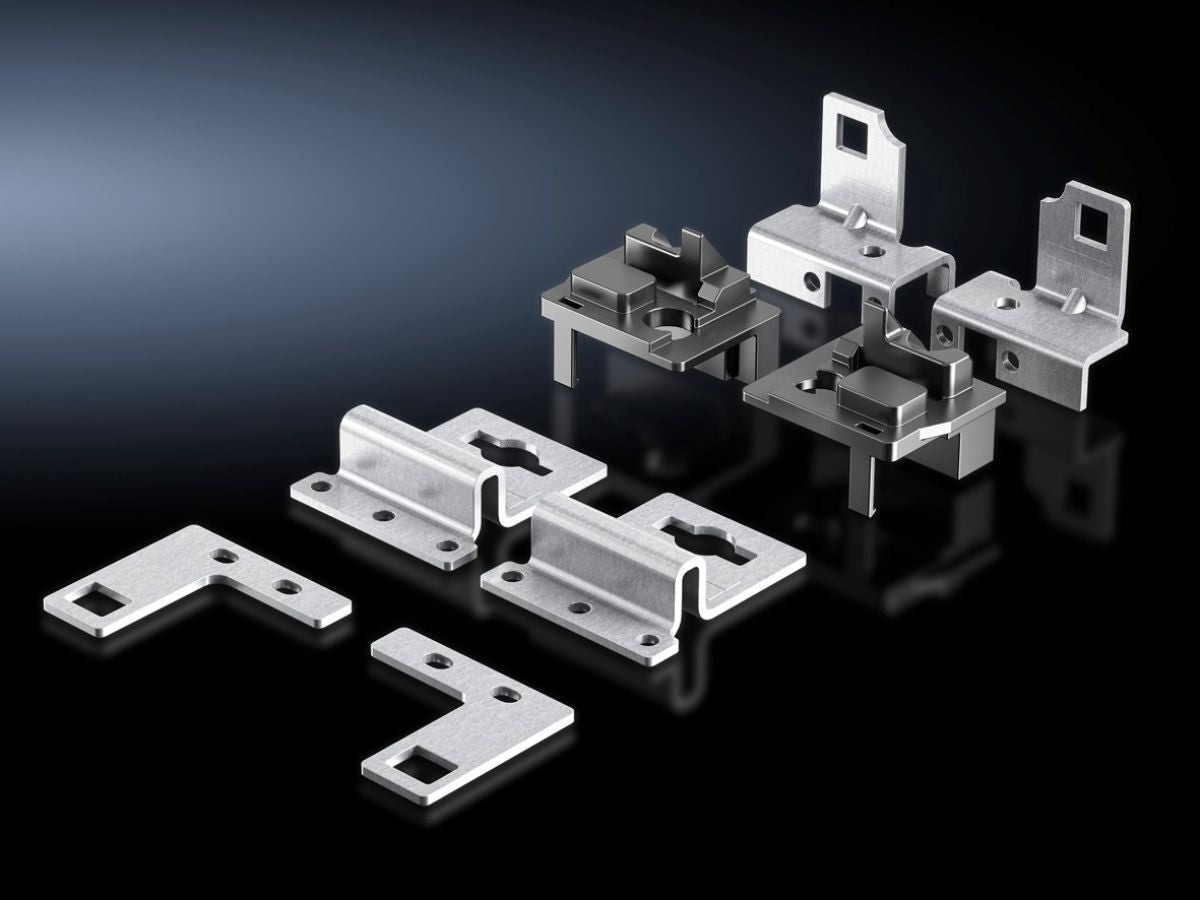

Rittal VX 8617.370, Multifunction mounting kit for mounting plate VX
Rittal VX 8617.370, Multifunction mounting kit for mounting plate VX
Regular price
€54,76
Regular price
Sale price
€54,76
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:VX 8617.370
The mounting plate may be offset by a further 20 mm in the depth, and installed from the rear.
| Article number: | VX 8617.370 |
| Product description | The mounting plate may be offset by a further 20 mm in the depth, and installed from the rear. |
| Material | Sheet steel |
| Surface finish | Zinc plated, passivated |
| Supply includes | 6 holdersAssembly parts |
| Installation options | For installing the mounting plate from the rear of the enclosure: Mounting position flush with the enclosure frame, position ±0 mm. The mounting plate is removable from the front and rear for servicing. |
| To fit | Enclosure type: VX |
| Packs of | 1 pc(s). |
| Net weight | 0.82 kg |
| Gross weight | 0.82 kg |
| Customs tariff number | 83024900 |
| EAN | 4028177924437 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189234 |
| Product description | VX Multifunction mounting kit, for mounting plate |
