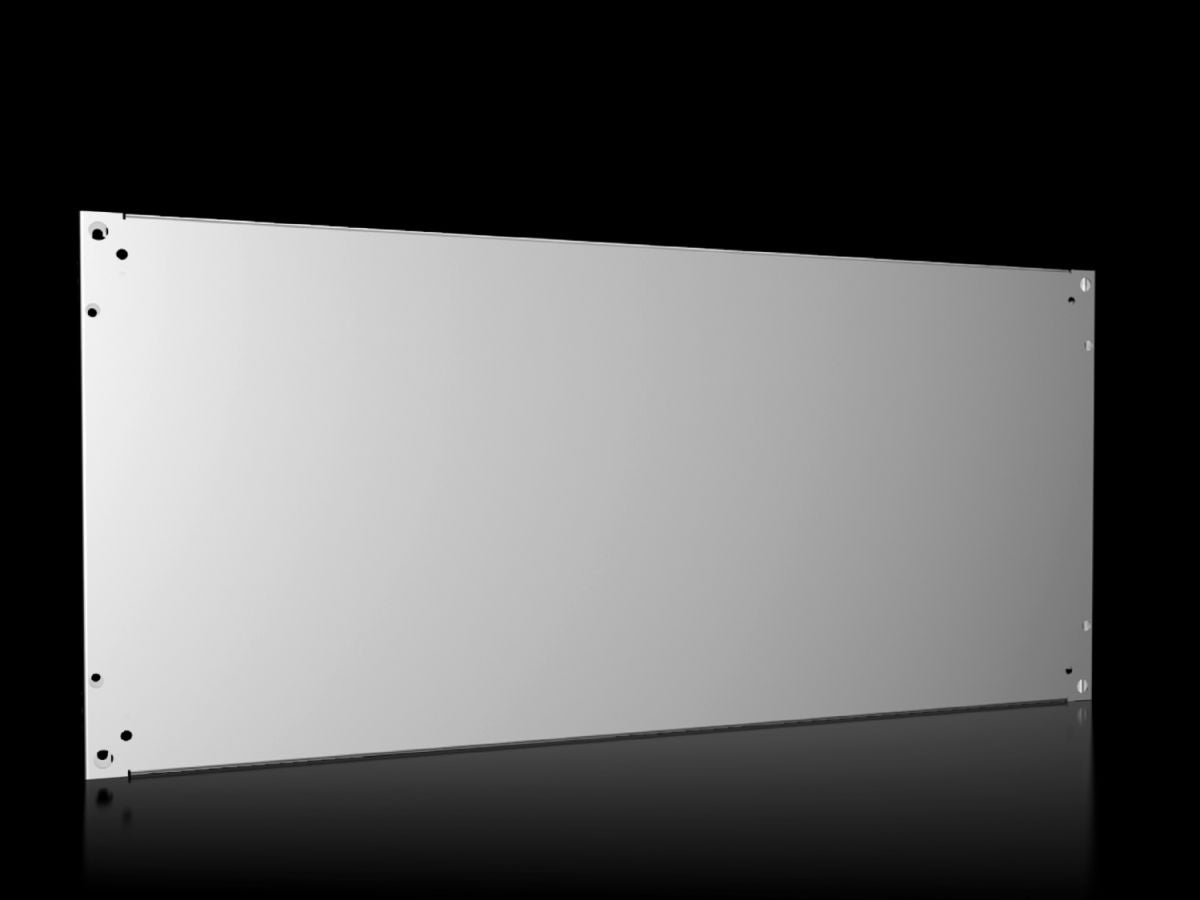

Rittal VX 8617.640, Partial mounting plates for VX, VX SE, PC, IW
Rittal VX 8617.640, Partial mounting plates for VX, VX SE, PC, IW
Regular price
€110,31
Regular price
Sale price
€110,31
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:VX 8617.640
To accommodate additional components inside the enclosure. Partial mounting plates can be used extremely flexibly, providing a platform for a diverse range of applications.
| Article number: | VX 8617.640 |
| Product description | To accommodate additional components inside the enclosure. Partial mounting plates can be used extremely flexibly, providing a platform for a diverse range of applications. |
| Material | Sheet steel, 2.5 mm |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| Installation options | For optional installation either upright as a vertical mounting surface, or flat as a horizontal base. |
| Note | Adaptor rail VX is required for installing in VX SE, PC, IW |
| Dimensions | Width: 1,100 mmDepth: 500 mm |
| To fit | Enclosure type: VXVX SEPCWidth: = 600 mm= 1,200 mmDepth: = 600 mm |
| Packs of | 1 pc(s). |
| Net weight | 12.8 kg |
| Gross weight | 13.18 kg |
| PCF per pack (cradle-to-gate) | 50.3 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 94039910 |
| EAN | 4028177919495 |
| ETIM 9 | EC000213 |
| ECLASS 8.0 | 27409216 |
| Product description | VX Partial mounting plate, dimensions: 1100x500 mm |
