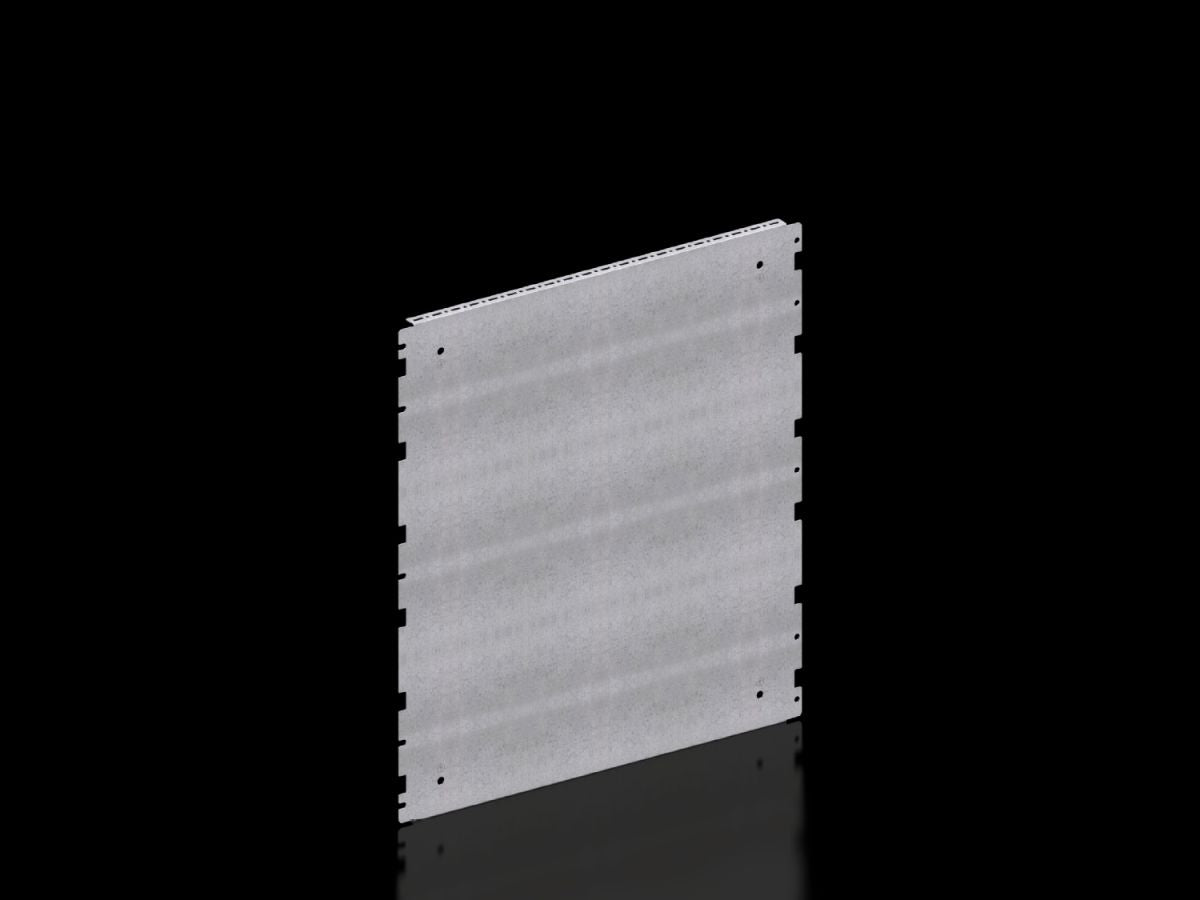

Rittal VX 8617.663, Partial assembly plate for VX, VX SE
Rittal VX 8617.663, Partial assembly plate for VX, VX SE
Regular price
€61,76
Regular price
Sale price
€61,76
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:VX 8617.663
To accommodate additional components inside the enclosure. Partial assembly plates are extremely versatile, providing a platform for a diverse range of applications.
| Article number: | VX 8617.663 |
| Product description | To accommodate additional components inside the enclosure. Partial assembly plates are extremely versatile, providing a platform for a diverse range of applications. |
| Benefits | For individual interior installation, system punchings are additionally provided in the edge fold. |
| Material | Sheet steel, 1.5 mm |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| Installation options | Attach directly onto the enclosure section |
| Note | In VX SE, on the enclosure section in conjunction with VX adaptor rail |
| Dimensions | Width: 538 mmHeight: 598 mm |
| To fit | Enclosure type: VXVX SETo fit width/depth: 600 mm |
| Packs of | 1 pc(s). |
| Net weight | 4 kg |
| Gross weight | 4.14 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177947177 |
| ETIM 9 | EC000213 |
| ECLASS 8.0 | 27409216 |
| Product description | VX Partial assembly plate, dimensions: 600x600 mm |
