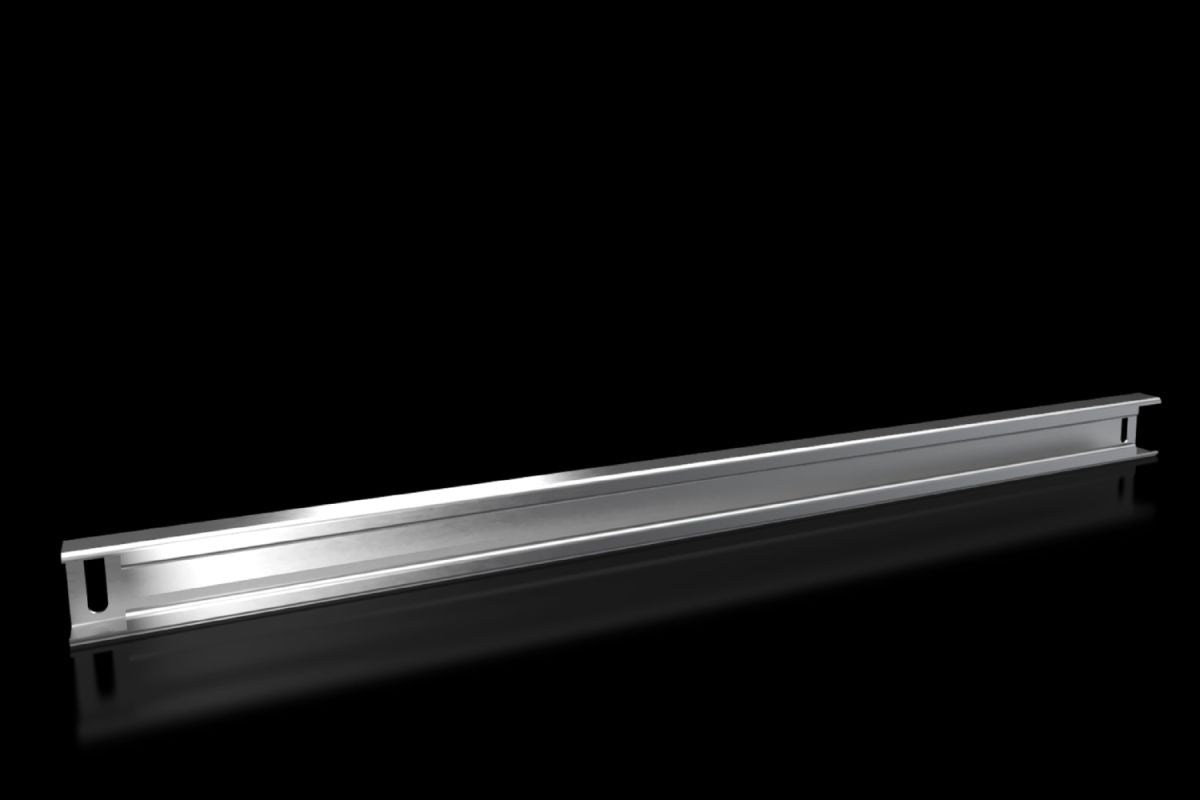

Rittal VX 8617.810, Support rail 48 x 26 mm for VX, VX SE, PC, IW, AX
Rittal VX 8617.810, Support rail 48 x 26 mm for VX, VX SE, PC, IW, AX
Regular price
€76,18
Regular price
Sale price
€76,18
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:VX 8617.810
For heavy installed equipment such as transformers. T-head screw and slots in the support rail accommodate all mounting dimensions.
| Article number: | VX 8617.810 |
| Product description | |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| VX installation options | In enclosure width 800 mm, on the inner mounting level and in the base |
| VX SE installation options | In enclosure width 800 mm, on the inner mounting level, in conjunction with adaptor rail for VX compatibility and in the base |
| AX installation options | In enclosure width 800 mm, in conjunction with rail for interior installation AX and base configuration rail for AX |
| PC installation options | In enclosure width 800 mm, on the inner mounting level, in conjunction with adaptor rail for VX compatibility and in the base |
| WI installation options | In enclosure width 800 mm, on the inner mounting level, in conjunction with adaptor rail for VX compatibility and in the base |
| To fit | Enclosure type: VXVX SEPCIWAXCX one-piece consoleCX pedestalWidth: = 800 mm |
| Packs of | 2 pc(s). |
| Net weight | 3.89 kg |
| Gross weight | 4.1 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177919525 |
| ETIM 9 | EC001285 |
| ECLASS 8.0 | 27189261 |
| Product description | VX Support rail 48 x 26 mm, for W: 800 mm |
