Rittal

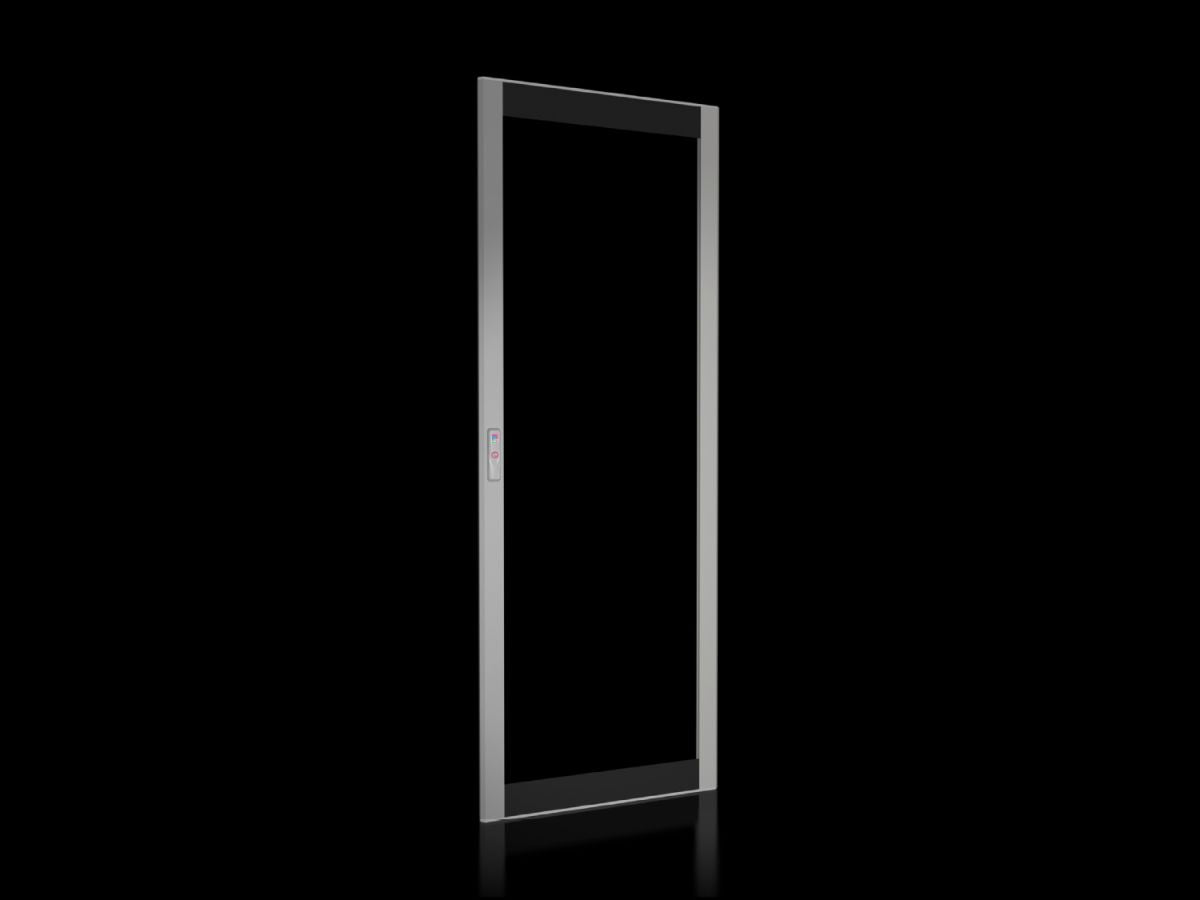

Rittal VX 8618.050, Glazed door for VX
Rittal VX 8618.050, Glazed door for VX
Regular price
€606,45
Regular price
Sale price
€606,45
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 06.01.2026
Couldn't load pickup availability
SKU: SKU:VX 8618.050
Instead of a sheet steel door or rear panel.
| Article number: | VX 8618.050 |
| Product description | Instead of a sheet steel door or rear panel. |
| Material | Frame: Extruded aluminium sectionViewing window: Single-pane safety glass, 3 mm |
| Surface finish | Powder-coated |
| Colour | Frame: RAL 7035Viewing window (printed mask on the inside): RAL 9005 |
| Supply includes | Glazed doorLocking rod with double-bit insert180° hinges (4) |
| IK Code | IK08 |
| Note | Lock components for frame 8618.110 are required when mounting instead of the rear panel |
| Type rating to UL 50E | Type 1 |
| IP protection category to IEC 60 529 | IP 55 |
| To fit | Enclosure type: VXWidth: = 800 mmHeight: = 2,200 mm |
| Packs of | 1 pc(s). |
| Net weight | 16.5 kg |
| Gross weight | 18 kg |
| EAN | 4028177921023 |
| ETIM 9 | EC000747 |
| ECLASS 8.0 | 27182204 |
| Product description | VX Glazed door, for WH: 800x2200 mm |
