Rittal

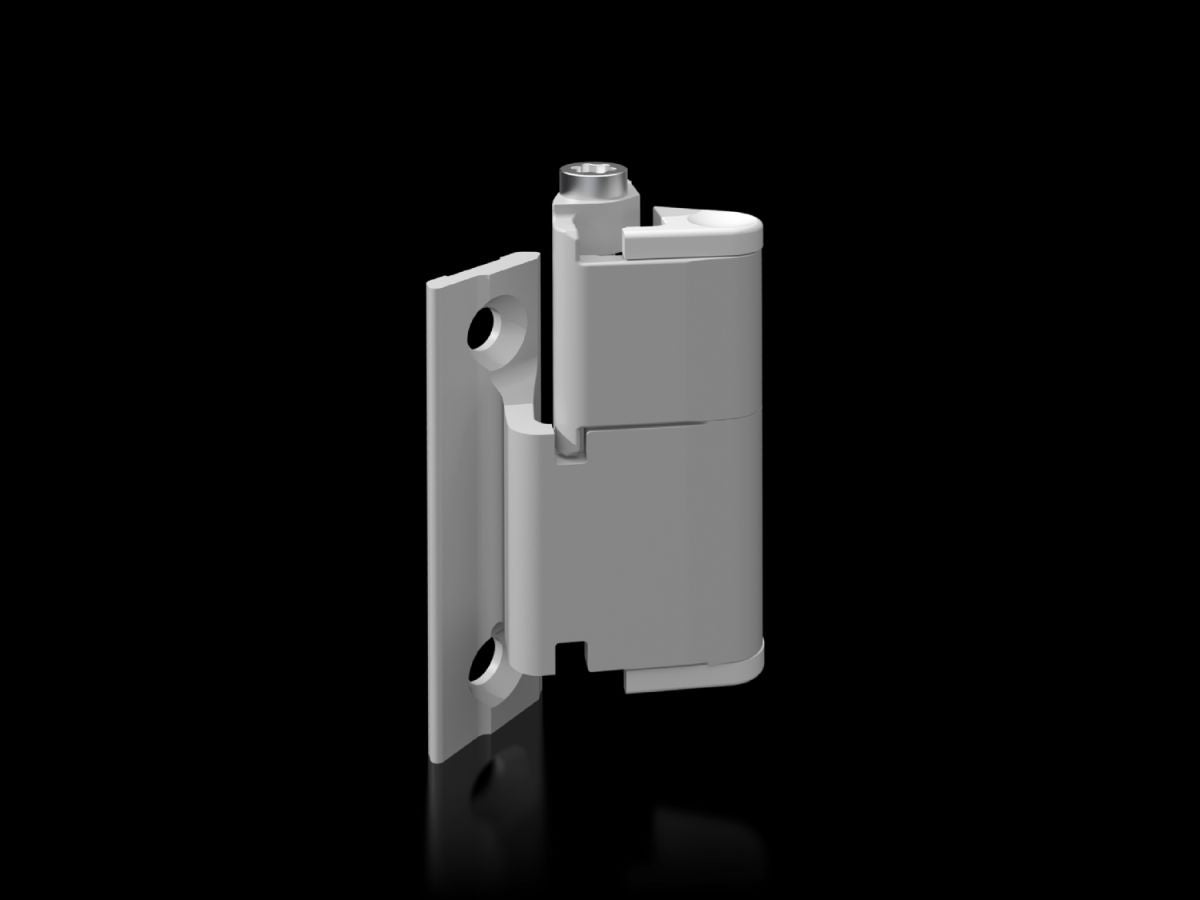

Rittal VX 8618.330, Hinge 180° for VX
Rittal VX 8618.330, Hinge 180° for VX
Regular price
€61,18
Regular price
Sale price
€61,18
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:VX 8618.330
To extend the door opening angle to 180°, without machining.
| Article number: | VX 8618.330 |
| Product description | To extend the door opening angle to 180°, without machining. |
| Material | Precision-cast steel |
| Colour | RAL 7035 |
| Supply includes | Assembly parts |
| Door opening angle | 180° |
| Note | The doors must be hinged on the same side when enclosures are bayed. |
| Suitable for door variant | Sheet steel door |
| To fit enclosure type | VX |
| Type rating to UL 50E | Type 1 |
| IP protection category to IEC 60 529 | IP 55 |
| Packs of | 4 pc(s). |
| Net weight | 0.74 kg |
| Gross weight | 0.777 kg |
| Customs tariff number | 83021000 |
| EAN | 4028177921344 |
| ETIM 9 | EC001167 |
| ECLASS 8.0 | 27409219 |
| Product description | VX hinges 180°, precision-cast steel, RAL 7035 |
