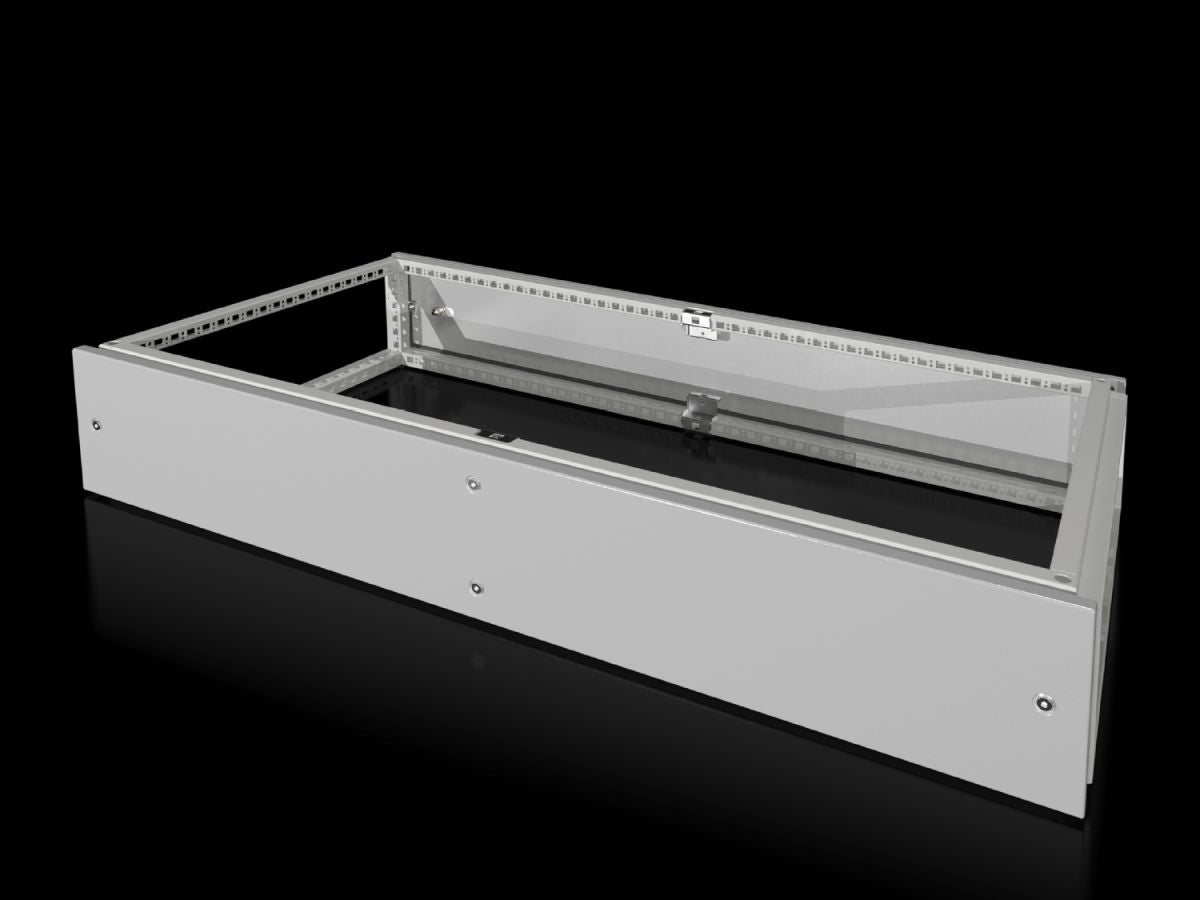

Rittal VX 8618.531, Top-mounting module for VX
Rittal VX 8618.531, Top-mounting module for VX
Regular price
€550,76
Regular price
Sale price
€550,76
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:VX 8618.531
As a cable chamber for cable infeed from above or for power distribution with busbar systems across bayed enclosures. The cover plate supplied as standard is used to finish off at the top.
| Article number: | VX 8618.531 |
| Product description | As a cable chamber for cable infeed from above or for power distribution with busbar systems across bayed enclosures. The cover plate supplied as standard is used to finish off at the top. |
| Material | Sheet steel, 1.5 mm |
| Surface finish | Spray-finished, textured paint |
| Colour | RAL 7035 |
| Supply includes | Frame module2 trim panels front/rear8 retainers with automatic potential equalisationAssembly parts |
| Dimensions | Height: 200 mm |
| IP protection category to IEC 60 529 | IP 55 |
| Type rating to UL 50E | Type 1 |
| To fit | Enclosure type: VXWidth: = 1,200 mmDepth: = 600 mm |
| Packs of | 1 pc(s). |
| Net weight | 16.5 kg |
| Gross weight | 18.06 kg |
| Customs tariff number | 94039910 |
| EAN | 4028177957589 |
| ETIM 9 | EC000744 |
| ECLASS 8.0 | 27182405 |
| Product description | VX Top mounting module, for WD: 1200x600 mm |
