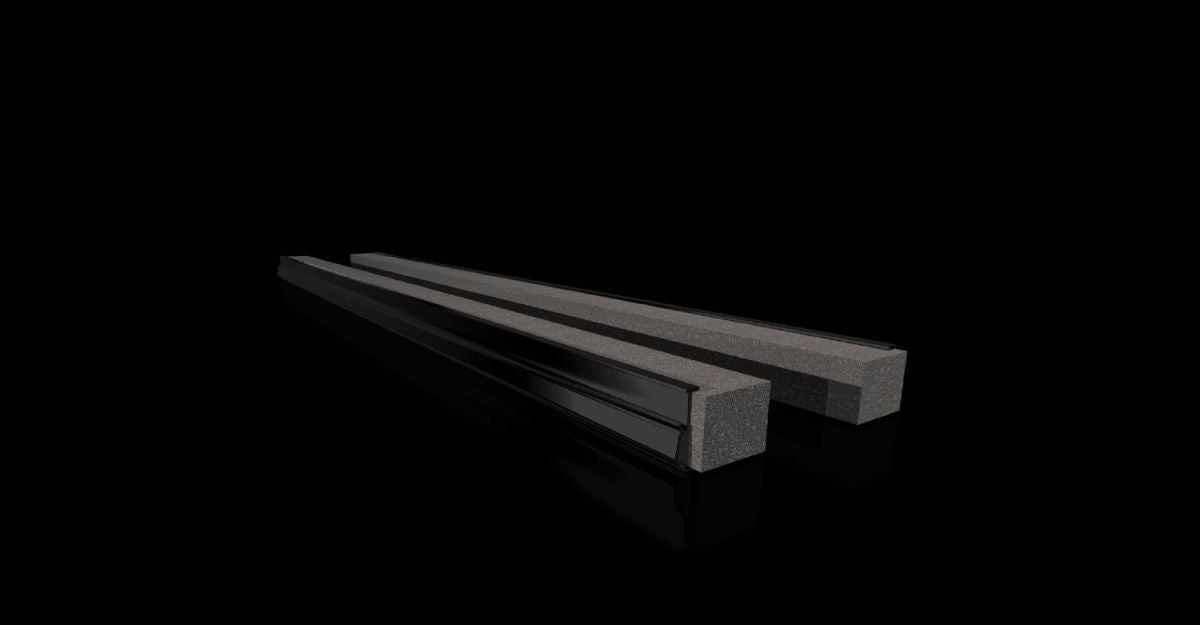

Rittal VX 8618.800, Section for cable entry, centre
Rittal VX 8618.800, Section for cable entry, centre
Regular price
€32,62
Regular price
Sale price
€32,62
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:VX 8618.800
The section is fitted directly onto the gland plates. In this way, when installing the mounting plate in the forward mounting position, the cables may be routed directly onto a cable clamp rail without large bending radii. In conjunction with the cable clamp rail, this enables optimum adjustment between the cable entry and mounting plate.
| Article number: | VX 8618.800 |
| Benefits | Simple assembly |
| Applications | For top-mounting on gland plates. |
| Material | Hard PVCFlame-resistant, self-extinguishingTemperature resistant to +60 °CSeal: PU foamCross-section: 30 x 25 mm |
| Supply includes | Plug-in sections, incl. foam rubber clamp strip |
| Note | You will need two pieces per cable entry point. |
| To fit | Enclosure type: VX: = 600 mmEnclosure type: VX SEEnclosure type: CX pedestalEnclosure type: CX one-piece console |
| Packs of | 2 pc(s). |
| Net weight | 0.16 kg |
| Gross weight | 0.167 kg |
| Customs tariff number | 39269097 |
| EAN | 4028177922747 |
| ETIM 9 | EC000211 |
| ECLASS 8.0 | 27142421 |
| Product description | VX Section for cable entry, centre, for W: 600 mm |
