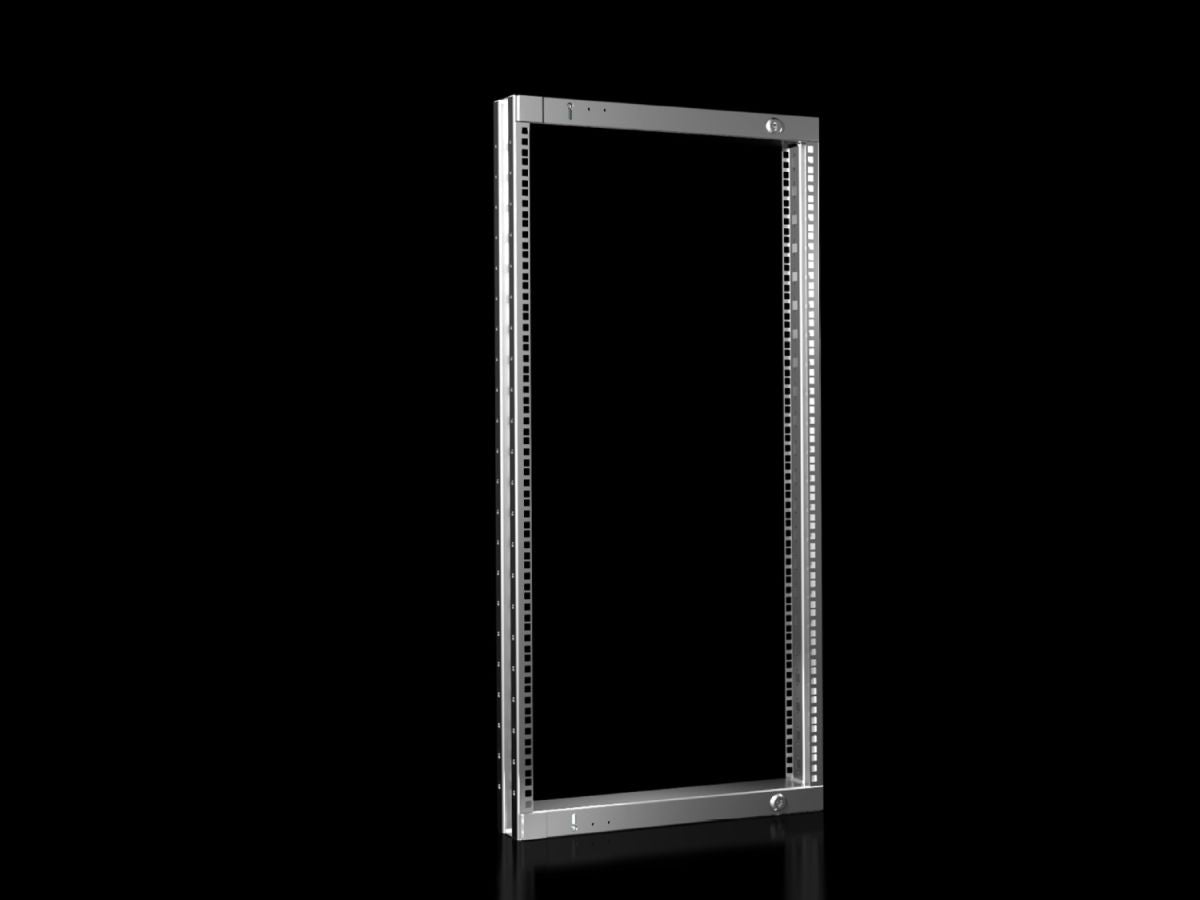

Rittal VX 8619.010, Swing frame, large for VX, 600, 800 and 1200 mm wide enclosures
Rittal VX 8619.010, Swing frame, large for VX, 600, 800 and 1200 mm wide enclosures
Regular price
€299,97
Regular price
Sale price
€299,97
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:VX 8619.010
For mounting 482.6 mm (19") equipment.
| Article number: | VX 8619.010 |
| Design | without trim panel |
| Product description | For mounting 482.6 mm (19") equipment. |
| Material | Sheet steel |
| Surface finish | Frame: Zinc-platedTrim panel: Spray-finished |
| Colour | Trim panel: RAL 7035 |
| Supply includes | Lock system, 130° hingeParts for attaching to the installation kit |
| Assembly instruction | Depending on the mounting situation, punched sections with mounting flanges 23 x 64 mm are required |
| Note | The swing frame stay is required to lock the open swing frame |
| To fit | Width: = 600 mmHeight: ≥ 1,200 mm |
| Units | 22 U |
| Packs of | 1 pc(s). |
| Net weight | 8.746 kg |
| Gross weight | 9.206 kg |
| Customs tariff number | 94039910 |
| EAN | 4028177920453 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189261 |
| Product description | VX Swing frame, large, without trim panel, for W: 600 mm, for min. enclosure height: 1200 mm, 22 U |
