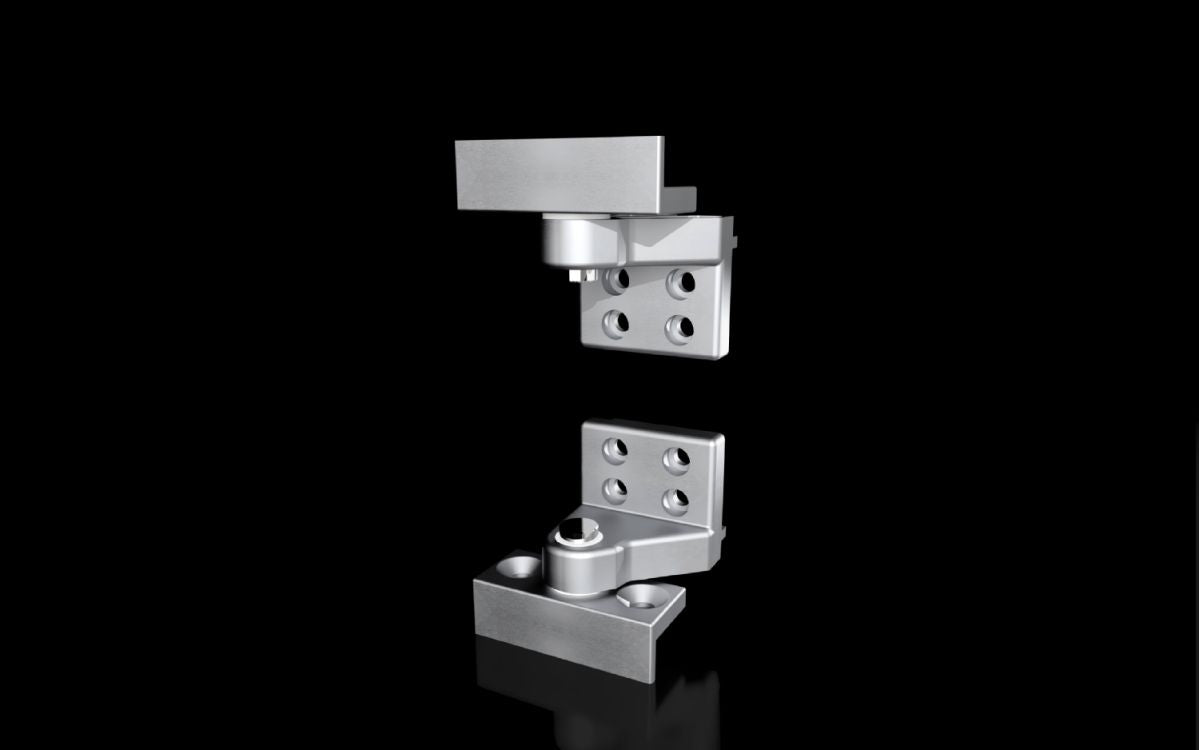

Rittal VX 8619.051, Hinge 180° for VX Swing Frame, Large
Rittal VX 8619.051, Hinge 180° for VX Swing Frame, Large
Regular price
€55,61
Regular price
Sale price
€55,61
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:VX 8619.051
To extend the opening angle from 130° to 180° in the foremost installation position.
| Article number: | VX 8619.051 |
| Product description | To extend the opening angle from 130° to 180° in the foremost installation position. |
| Benefits | Provides optimum access to the components and 482.6 mm (19") components located behind the swing frame |
| Material | Die-cast |
| Supply includes | Hinge, top and bottomAssembly parts |
| Opening angle | 180° |
| Note | Only suitable for installation in VX |
| Load capacity (static) | 1,500 N |
| Packs of | 1 pc(s). |
| Net weight | 0.83 kg |
| Gross weight | 0.84 kg |
| Customs tariff number | 83021000 |
| EAN | 4028177969230 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189234 |
| Product description | VX 180° hinge for swing frame, large |
