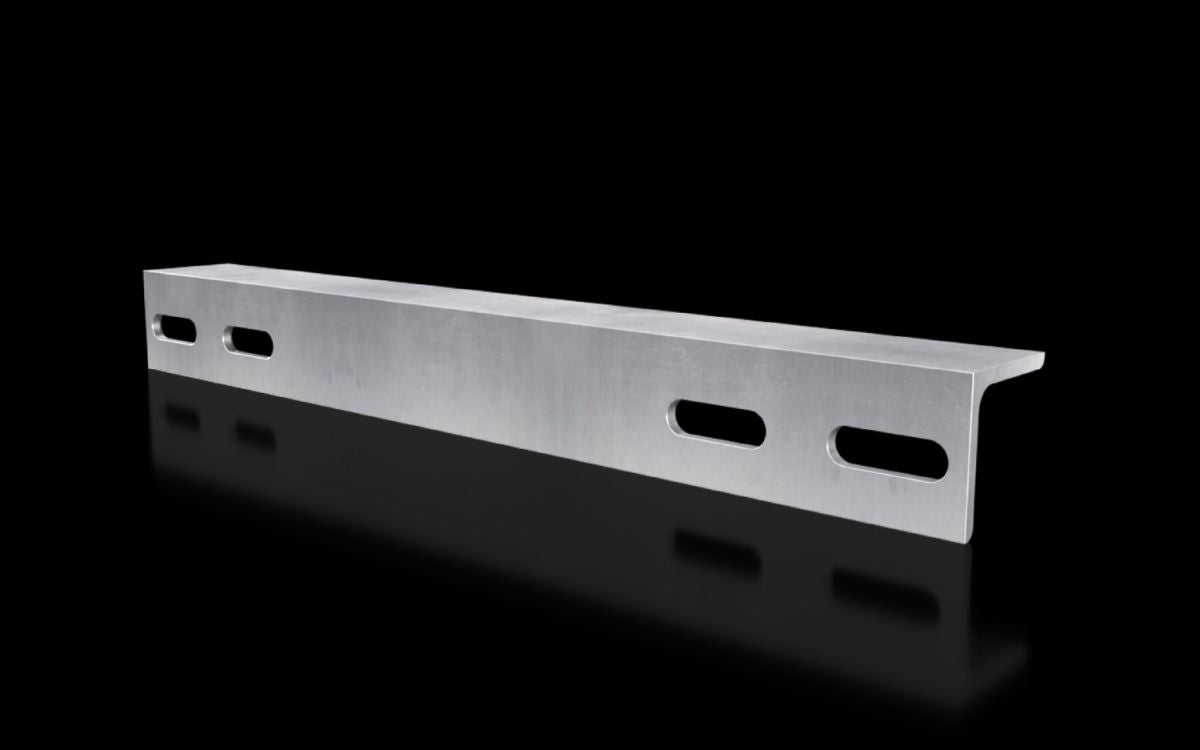

Rittal VX 8619.400, Cable clamp rail Right-angle section for VX, TS, VX SE, PC, base/plinth system VX
Rittal VX 8619.400, Cable clamp rail Right-angle section for VX, TS, VX SE, PC, base/plinth system VX
Regular price
€44,62
Regular price
Sale price
€44,62
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:VX 8619.400
For strain relief with cable entry. Depth-variable mounting on a 25 mm pitch pattern on the horizontal enclosure section or in the base/plinth.
| Article number: | VX 8619.400 |
| Product description | For strain relief with cable entry. Depth-variable mounting on a 25 mm pitch pattern on the horizontal enclosure section or in the base/plinth. |
| Material | Steel |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| VX installation options | In enclosure width 400 mm, in the base |
| AX installation options | In enclosure width 400 mm, in conjunction with rail for interior installation AX and base configuration rail for AX |
| AX stainless steel installation options | In enclosure width 400 mm, in conjunction with rail for interior installation AX and base configuration rail for AX |
| VX base/plinth installation options | In base/plinth width/depth 400 mm, in conjunction with holder/spacer |
| To fit | Base/plinth system VX |
| Dimensions | Length: 354 mm |
| To fit | Enclosure type: VXAXWidth: = 400 mm |
| Packs of | 2 pc(s). |
| Net weight | 2 kg |
| Gross weight | 2.34 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177921924 |
| ETIM 9 | EC000322 |
| ECLASS 8.0 | 27400604 |
| Product description | VX Cable clamp rail, mounting angle, for W: 400 mm |
